GYTY53-20~24Xn Optic Cable is Loose sleeve layer stranded ordinary armored optical cable

GYTY53-20~24Xn Optic Cable Product Overview

The structure of GYTY53 fiber optic cable is to insert a 250μm optical fiber into a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. In the center of the core is a metal reinforcing core, and for some core cables, a layer of polyethylene (PE) is squeezed out of the metal reinforcing core. The loose tube (and filler rope) are twisted around a central reinforcing core to form a compact and round core, and the gaps within the core are filled with water-blocking filling. The cable is extruded with a layer of polyethylene inner sheath, and the double-sided plastic-coated steel tape (PSP) is longitudinally wrapped and then extruded into a polyethylene sheath to form a cable.

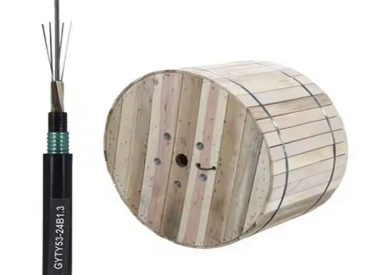

GYTY53-20~24Xn Optic Cable Product Pictures

GYTY53-20~24Xn Optic Cable good price ycictGYTY53-20~24Xn Optic Cable Optic fiber cable

GYTY53-20~24Xn price and specsGYTY53-20~24Xn price and specs YCICT

GYTY53-20~24Xn Optic Cable Product Specifications

Veseloptiese kabelmodel (In stappe met 2 vesel) Aantal vesels Aantal omhulsels Number of fill ropes Verwysingskabelgewig
(kg/km.		 Tensile force is allowed
Langtermyn/korttermyn
(N)		 Toelaatbare muurskrag
Langtermyn/korttermyn
(N/100mm)		 Buig radius
Staties/dinamies
(mm)
GYTY53-2~6Xn 2~6 1 5 160 1000/3000 1000/3000 12.5D/25d
GYTY53-8~12Xn 8~12 2 4 160
GYTY53-14~18Xn 14~18 3 3 160
GYTY53-20~24Xn 20~24 4 2 160
GYTY53-26~30Xn 26~30 5 1 160
GYTY53-32~36Xn 32~36 6 0 160
GYTY53-38~48Xn 38~48 4 1 174
GYTY53-50~60Xn 50~60 5 0 174
GYTY53-62~72Xn 62~72 6 0 185
GYTY53-74~84Xn 74~84 7 1 214
GYTY53-86~96Xn 86~96 8 0 214
GYTY53-98~108Xn 98~108 9 1 245
GYTY53-110~120Xn 110~120 10 0 245
GYTY53-122~132Xn 122~ 132 11 1 281
GYTY53-134~144Xn 134~ 144 12 0 281
GYTY53-146~216Xn 146~ 216 13~18 5~ 0 281
Vesel tipe attenuation （+20℃） bandwydte Numeriese diafragma Veseloptiese kabelafsnipgolflengte
@850nm @1300nm @1310nm @1550nm @850nm @1300nm
G.652 - - ≤0.36db/km ≤0.22db/km - - - ≤1260nm
G.655 - - ≤0.40db/km ≤0.23dB/km - - - ≤1450nm
50/125µm ≤3.0db/km ≤1.0db/km - - ≥500MHz · km ≥500MHz · km 0.200± 0,015 reeds -
62.5/125µm ≤3.3db/km ≤1.0db/km - - ≥200MHz · km ≥500MHz · km 0.275± 0,015 reeds -

GYTY53-20~24Xn Optic Cable Product Features

  • It has very good mechanical properties and temperature characteristics
  • The loose tube material itself has good water resistance and high strength
  • The tube is filled with special ointment to protect the optical fiber
  • Specially designed tight optical cable structure to effectively prevent the casing from retracting
  • The PE sheath has good resistance to ultraviolet radiation
  • Good compression resistance, suitable for pipeline or direct buried wiring
  • The following measures are taken to ensure the waterproof performance of the fiber optic cable:
  • Single steel wire center reinforcing core
  • The loose tube is filled with special waterproof compound
  • Fully cable filled
  • Double-sided plastic-coated steel tape (PSP) improves the moisture permeability of fiber optic cables
  • Good water-blocking material to prevent longitudinal water seepage of the optical cable

GYTY53-20~24Xn Optic Cable Product Applications

  • Lêmodusse: Direk begrawe
  • Langafstandkommunikasie, Plaaslike stamlyn, sommige & Rekenaarnetwerkstelsel
  • Adopted to Outdoor distribution
  • Suitable for aerial duct and buried method
