GYTZA-8~12Xn Optic Cable is Flame-retardance Stranded Loose Tube Optical Cable Application: pipelines, overhead
GYTZA-8~12Xn Optic Cable Product Overview
GYTZA-8~12Xn Optic Cable is a robust and versatile solution designed to meet the demands of outdoor communication networks, particularly in environments requiring flame-retardant performance. This cable features colored optical fibers housed in a loose tube made of high-modulus material, providing exceptional mechanical strength and hydrolysis resistance. The loose tube is filled with thixotropic gel, ensuring optimal fiber protection and water-blocking capabilities.
A flame-retardant outer sheath, extruded over longitudinally wrapped coated aluminum tape, delivers superior fire resistance and environmental prot

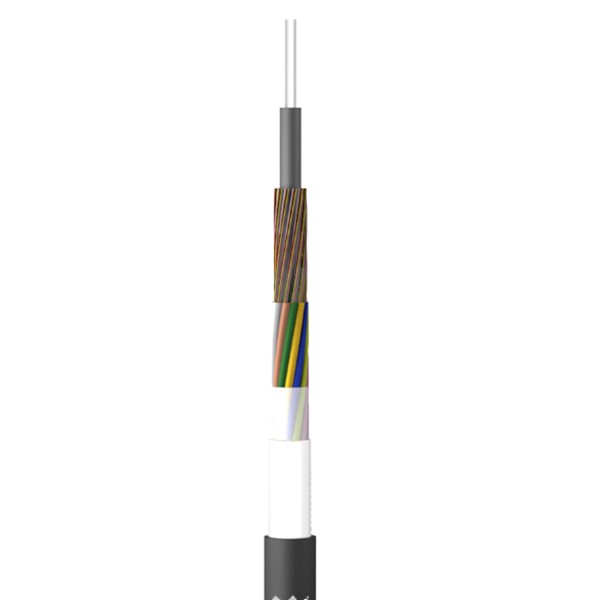

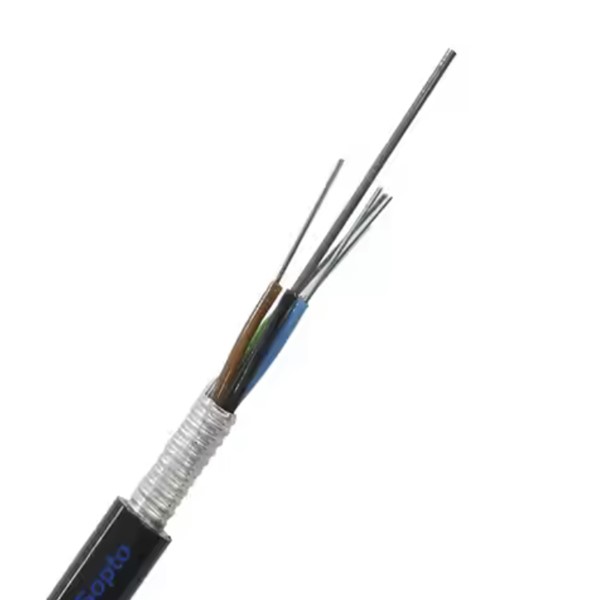

GYTZA-8~12Xn Optic Cable Product Pictures
GYTZA-8~12Xn Optic Cable Product Specifications
| Fiber cable model (in increments of 2 তন্তু) | Number of optical fiber tubes | Number of sleeves | Number of filling ropes | Reference optical cable weight (kg/km) | Allowable tensile force Long-term/short-term (এন) | Allowable crushing force long term/short term (এন/100 মিমি) | Bending radius static/dynamic (মিমি) | |
| GYTZA-2~6Xn | 2~ 6 | 1 | 4 | 101 | 600/1500 | 300/1000 | 10D/20D | |
| GYTZA-8~12Xn | 8~ 12 | 2 | 3 | 101 | ||||
| GYTZA-14~18Xn | 14~ 18 | 3 | 2 | 101 | ||||
| GYTZA-20~24Xn | 20~ 24 | 4 | 1 | 101 | ||||
| GYTZA-26~30Xn | 26~ 30 | 5 | 0 | 101 | ||||
| GYTZA-32~36Xn | 32~ 36 | 6 | 0 | 111 | ||||
| GYTZA-38~48Xn | 38~ 48 | 4 | 1 | 117 | ||||
| GYTZA-50~60Xn | 50~ 60 | 5 | 0 | 117 | ||||
| GYTZA-62~72Xn | 62~ 72 | 6 | 0 | 144 | ||||
| GYTZA-74~84Xn | 74~ 84 | 7 | 1 | 171 | ||||
| GYTZA-86~96Xn | 86~ 96 | 8 | 0 | 171 | ||||
| GYTZA-98~108Xn | 98~ 108 | 9 | 1 | 198 | ||||
| GYTZA-110~120Xn | 110~ 120 | 10 | 0 | 198 | ||||
| GYTZA-122~132Xn | 122~ 132 | 11 | 1 | 229 | ||||
| GYTZA-134~144Xn | 134~ 144 | 12 | 0 | 229 | ||||
| GYTZA-146~216Xn | 146216 | 13~ 18 | 5~ 0 | 229 | ||||
| Fiber optic type | মনোযোগ (20°সে) | ব্যান্ডউইথ | Numerical aperture | Optical fiber cutoff wavelength | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @ 850nm | @1300nm | |||
| জি.652 | - | - | ≤0.36db/কিমি | .20.22db/কিমি | - | - | - | ≤1260nm |
| জি .655 | - | - | ≤0.40db/কিমি | ≤0.23db/কিমি | - | - | - | ≤1450nm |
| 50/125µm | ≤3.3db/কিমি | ≤1.2dB/km | - | - | ≥500MHz · কিমি | ≥500MHz · কিমি | 0.200± 0.015 ইতিমধ্যে | - |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | - | - | ≥200MHz · কিমি | ≥500MHz · কিমি | 0.275± 0.015 ইতিমধ্যে | - |
GYTZA-8~12Xn Optic Cable Product Features
• Accurate process control ensuring good mechanical and temperature performances
• The material of loose tubes with good hydrolysis resistance and relatively high strength
• LSZH sheath ensuring good flame-retardant performance
• Water resistance of optical cable is ensured by the following measures:
– Special water-blocking compound filled in loose tubes
– Laminated aluminum tape armor
– Water-blocking material ensuring longitudinal water resistance
GYTZA-8~12Xn Optic Cable Product and More Optic Cables
Central tube non-armored optical cable (GYXY)
Central tube light armored optical cable (GYXS/GYXTW)
Loose-tube layer stranded light armored fiber optic cable (গাইডস)
Loose-tube layer stranded non-armored fiber optic cable (গাইটা)
Loose-tube layer stranded non-metallic reinforced core non-armored flame-retardant optical cable (গাইফ্টজি)
Loose-tube layer stranded reinforced core armored flame-retardant optical cable (Gytza53)
Loose-tube layer stranded non-metallic reinforced core armored flame-retardant optical cable (Gyftza53)
Loose-tube layer stranded flame-retardant optical cable (গাইটজস)
Loose-tube layer stranded non-metallic reinforced core armored optical cable (সাইফটা 53)
Loose-tube layer stranded non-metallic reinforced core ordinary armored optical cable (সাইফটি 53)
Loose-tube layer stranded non-metallic reinforced core non-armored optical cable (ভাগ্য)
Loose-tube layer stranded non-metallic reinforced core optical cable (গাইটি)
Loose-tube layer stranded non-metallic reinforced core non-armored optical cable (কাজিন)
Loose-tube layer stranded single steel wire armored optical cable (Gyta53 33)
Loose-tube layer stranded reinforced armored optical cable (Gyta53)
Loose-tube layer stranded ordinary armored optical cable (Gyty53)
Loose-tube layer stranded light armored optical cable (ব্যঞ্জনবর্ণ)
Loose-tube layer stranded non-armored optical cable (উচ্চারণ)
GYTZA-8~12Xn Optic Cable Product Applications
- Outdoor Duct Installations: The cable’s robust construction and moisture-proof aluminum tape layer make it ideal for duct installations exposed to environmental challenges such as water ingress and temperature fluctuations.
- Campus and Enterprise Networks: Suitable for linking large-scale campuses or enterprise facilities where fire safety standards must be strictly observed.
- Rural and Remote Areas: Can be used in rural or remote outdoor networks that require long-distance connectivity with reliable water-blocking and mechanical performance.

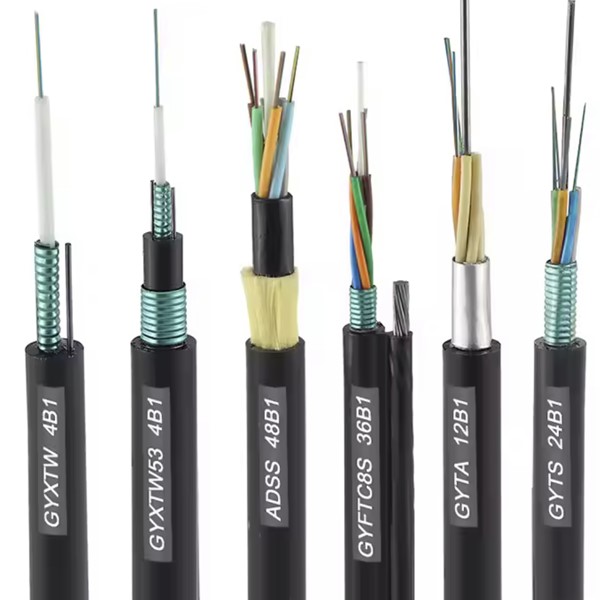

GYTZA-8~12Xn Optic Cable Product Structure
