GYFTA53-14~18Xn Optic Cable

Beskrivelse

GYFTA53-14~18Xn Optic Cable is Stranded loose sleeve non-metallic reinforced core armored fiber optic cable

GYFTA53-14~18Xn Optic Cable Product Overview

GYFTA53 The structure of the fiber optic cable is that a 250μm optical fiber is sleeved into a loose tube made of high-modulus material, which is filled with a waterproof compound. In the center of the core is a non-metallic reinforcing core (FRP), and for some core counts, et lag polyethylen (Pe) is squeezed on top of the non-metallic reinforcing core. Det løse rør (og fyldtov) are twisted around a central reinforcing core to form a compact and round core, og hullerne inden i kernen er fyldt med vandblokering af fyldning. The plastic-coated aluminum strip (Apl) is squeezed with a layer of polyethylene inner sheath after longitudinal wrapping, and the double-sided plastic-coated steel strip (PSP) is extruded with polyethylene outer sheath after longitudinal wrapping to form a cable.
A fiber optic cable is a communication line used for long-distance, high-speed data transmission, and its core component is an optical fiber made of high-purity glass or plastic. The optical cable uses the principle of total reflection of light to convert the electrical signal into an optical signal, transmit it through optical fiber, and then convert the optical signal back to the electrical signal at the receiving end, so as to realize the high-speed transmission of information.

GYFTA53-14~18Xn Optic Cable Product Pictures

GYFTA53-14~18Xn Optic Cable Product Specifications

GYFTA53-14~18Xn Optic Cable Product Features

• Ultra-high bandwidth/extremely high capacity: The transmission bandwidth far exceeds that of copper cables (such as twisted pair and coaxial cables), and the theoretical transmission capacity of a single optical fiber can reach the Tbps level, which can easily meet the high-bandwidth requirements of high-definition video, cloud computing, og 5G.
• Ultra-long transmission distance: Signal attenuation is minimal (especially in the 1550nm window), and the relay distance can reach tens or even hundreds of kilometers, which is much better than copper cables.
• Anti-electromagnetic interference: Optical fiber is an insulator, transmits optical signals, is completely unaffected by electromagnetic interference and lightning, and has obvious advantages in strong electromagnetic environments such as electric power and railways.
• Low loss: Modern optical fibers have very low transmission losses (as low as 0.2dB/km).
• Small size and light weight: Fiber optic cables are thinner and lighter than copper cables with the same transmission capacity, making them easy to lay and transport.
• Good confidentiality: Optical signals are transmitted inside the optical fiber and are not easy to be eavesdropped.
• No crosstalk: Fibers do not interfere with each other.
• Abundant resources: The main material is silica (sand), which comes from a wide range of sources.

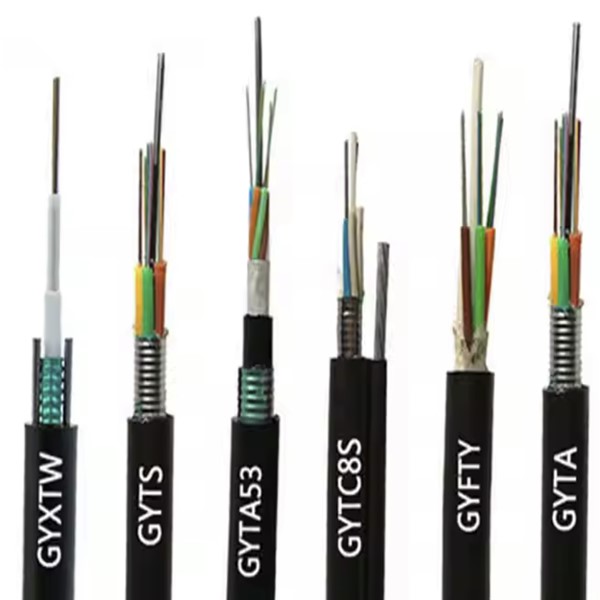

GYFTA53-14~18Xn Optic Cable Product and More Optic Cables

Centralrør Umonteret fiberoptisk kabel (Gyxy)
Centralt rør lys pansret fiberoptisk kabel (Gyxs/gyxtw)
Løs ærme strandet lys pansret fiber strip kabel (Gydts)
Strandet løs jakke ubevarmureret fiberoptisk kabel (Gyta)
Strandet løs jakke Ikke-metallisk forstærket kerne Ikke-armet flammehæmmende fiberoptisk kabel (Gyftzy)
Løs ærme strandet forstærket kerne pansret flammehæmmende optisk kabel(Gytza53)
Løs ærme strandet ikke-metallisk forstærket kerne pansret flammehæmmende fiberoptisk kabel (Gyftza53)
Strandet flammehæmmende fiberoptisk kabel (Gytzs)
Strandet løs jakke Ikke-armet flammehæmmende fiberoptisk kabel (Gytza)
Strandede ikke-metalliske forstærkende kerne almindelige pansrede fiberoptiske kabel (CYFTY53)
Strandet løs jakke Ikke-metallisk forstærket kerne Umarnet fiberoptisk kabel (SAMMEN)
Løs ærme strandet ikke-metallisk forstærket kernet optisk kabel (Gyhty)
Strandet løs jakke Ikke-metallisk forstærket kerne Umarnet fiberoptisk kabel (Fætter)
Løs ærme strandet enkelt tynd rund ståltråd pansret fiberoptisk kabel (Gyta53 33)

GYFTA53-14~18Xn Optic Cable Product Applications

• Long-distance communication: Used for long-distance data transmission between countries and countries.
• Metro: Connects different network nodes within a city.
• Local Area Network: Used for high-speed data transmission in local area networks such as businesses, skoler, and homes.
• Data center: Connect servers, storage, and network equipment for high-speed internal communication.

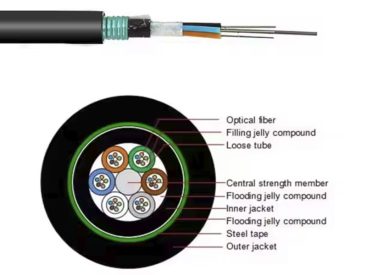

GYFTA53-14~18Xn Optic Cable Product Structure

Undskyld, ingen vedhæftet fil tilgængelig !
