Beskrivelse
GYTZA-86~96Xn Optic Cable is Flame-retardance Stranded Loose Tube Optical Cable
GYTZA-86~96Xn Optic Cable Product Overview
The structure of GYTZA fiber optic cable is that a 250μm optical fiber is sleeved into a loose tube made of high-modulus material, which is filled with a waterproof compound. I midten af kernen er en metalforstærkende kerne, Og for nogle kernekabler, et lag polyethylen (Pe) presses ud af metalforstærkende kerne. Det løse rør (og fyldtov) er snoede rundt om den centrale forstærkende kerne for at danne en kompakt og afrundet kerne, og hullerne inden i kernen er fyldt med vandblokering af fyldning. Plastic-coated aluminum strip (Apl) is longitudinally wrapped and extruded into a flame-retardant sheath to form a cable.
Optical cable is a kind of communication cable that uses optical signals to transmit data, which has the advantages of high speed, large capacity, and anti-interference, and is widely used in modern communication networks

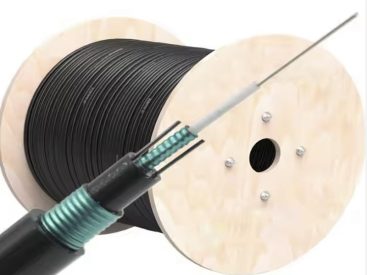

GYTZA-86~96Xn Optic Cable Product Pictures
GYTZA-86~96Xn Optic Cable Product Specifications
| Fiber cable model (in increments of 2 fibre) | Number of optical fiber tubes | Number of sleeves | Number of filling ropes | Reference optical cable weight (kg/km) | Allowable tensile force Long-term/short-term (N) | Allowable crushing force long term/short term (N/100mm) | Bending radius static/dynamic (mm) | |
| GYTZA-2~6Xn | 2~ 6 | 1 | 4 | 101 | 600/1500 | 300/1000 | 10D/20D | |
| GYTZA-8~12Xn | 8~12 | 2 | 3 | 101 | ||||
| GYTZA-14~18Xn | 14~ 18 | 3 | 2 | 101 | ||||
| GYTZA-20~24Xn | 20~24 | 4 | 1 | 101 | ||||
| GYTZA-26~30Xn | 26~ 30 | 5 | 0 | 101 | ||||
| GYTZA-32~36Xn | 32~36 | 6 | 0 | 111 | ||||
| GYTZA-38~48Xn | 38~48 | 4 | 1 | 117 | ||||
| GYTZA-50~60Xn | 50~ 60 | 5 | 0 | 117 | ||||
| GYTZA-62~72Xn | 62~ 72 | 6 | 0 | 144 | ||||
| GYTZA-74~84Xn | 74~ 84 | 7 | 1 | 171 | ||||
| GYTZA-86~96Xn | 86~ 96 | 8 | 0 | 171 | ||||
| GYTZA-98~108Xn | 98~ 108 | 9 | 1 | 198 | ||||
| GYTZA-110~120Xn | 110~ 120 | 10 | 0 | 198 | ||||
| GYTZA-122~132Xn | 122~ 132 | 11 | 1 | 229 | ||||
| GYTZA-134~144Xn | 134~ 144 | 12 | 0 | 229 | ||||
| GYTZA-146~216Xn | 146~ 216 | 13~ 18 | 5~ 0 | 229 | ||||
| Fiber optic type | Dæmpning (20°C) | Båndbredde | Numerisk blænde | Optical fiber cutoff wavelength | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @ 850nm | @1300nm | |||
| G.652 | — | — | ≤0,36dB/km | ≤0,22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0,40db/km | ≤0,23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3db/km | ≤1.2db/km | — | — | ≥500MHz · km | ≥500MHz · km | 0.200± 0,015 allerede | — |
| 62.5/125µm | ≤3,5 dB/km | ≤1.2db/km | — | — | ≥200MHz · km | ≥500MHz · km | 0.275± 0,015 allerede | — |
GYTZA-86~96Xn Optic Cable Product Features
- Precise Process Control: Ensures exceptional mechanical stability and reliable performance across a wide range of temperatures, making the cable robust in diverse environments.
- Hydrolysis-Resistant Loose Tube Material: Manufactured using high-strength, hydrolysis-resistant material, providing long-lasting durability and optimal protection for the optical fibers.
- LSZH (Low Smoke Zero Halogen) Sheath: The flame-retardant sheath ensures excellent fire safety performance, emitting minimal smoke and no harmful halogen gases during combustion, meeting stringent safety standards.
- Comprehensive Water-Blocking Measures:
- Special Water-Blocking Compound: Loose tubes are filled with a specialized water-blocking compound to prevent moisture penetration.
- Laminated Aluminum Tape Armor: Provides an effective barrier against moisture ingress and adds structural reinforcement to the cable.
- Longitudinal Water Resist
GYTZA-86~96Xn Optic Cable Product and More Optic Cables
Løs ærme strandet forstærket kerne pansret flammehæmmende optisk kabel(Gytza53)
Løs ærme strandet ikke-metallisk forstærket kerne pansret flammehæmmende fiberoptisk kabel (Gyftza53)
Strandet flammehæmmende fiberoptisk kabel (Gytzs)
Strandet løs jakke Ikke-armet flammehæmmende fiberoptisk kabel (Gytza)
Strandet løs ærme Ikke-metallisk forstærket kernepansret fiberoptisk kabel (Cyfta53)
Strandede ikke-metalliske forstærkende kerne almindelige pansrede fiberoptiske kabel (CYFTY53)
Strandet løs jakke Ikke-metallisk forstærket kerne Umarnet fiberoptisk kabel (SAMMEN)
Løs ærme strandet ikke-metallisk forstærket kernet optisk kabel (Gyhty)
Strandet løs jakke Ikke-metallisk forstærket kerne Umarnet fiberoptisk kabel (Fætter)
Løs ærme strandet enkelt tynd rund ståltråd pansret fiberoptisk kabel (Gyta53 33)
Løs ærme strandet forstærket pansret fiberoptisk kabel(Gyta53)
Løs ærme strandet almindeligt pansret fiberoptisk kabel(Gyty53)
Løs ærme strandet lys pansret fiberoptisk kabel (Konsonant)
Strandet løs jakke ubevarmureret fiberoptisk kabel (Fremhæver)
GYTZA-86~96Xn Optic Cable Product Applications
- Communication networks: 5G base stations, broadband access (FTTH), long-distance backbone networks.
- Data center: high-speed interconnection between servers (such as 40G/100G optical modules)
- Industrial & Sikkerhed: Factory Automation Control, Video Surveillance Systems.
- Special fields: medical endoscopy, military communications, submarine communications.
GYTZA-86~96Xn Optic Cable Product Structure
