Beschreibung
GYFTZA53-62~72Xn Optic Cable is Loose sleeve stranded non-metallic reinforced core armored flame retardant optical cable, suitable for pipelines, Overhead, direkte Beerdigung
GYFTZA53-62~72Xn Optic Cable Product Overview
GYFTZA53 fiber optic cables are constructed by inserting a 250μm optical fiber into a loose tube made of high-modulus material filled with a waterproof compound. In der Mitte des Kerns befindet sich ein nicht metallischer Verstärkungskern (FRP), Und für einige Kernzählungen, eine Schicht aus Polyethylen (SPORT) wird auf dem nichtmetallischen Verstärkungskern gepresst. The loose tube and infill rope are twisted around the central reinforcing core to form a compact and round core, und die Lücken im Kern werden mit Wasserblockierung gefüllt. The plastic-coated aluminum strip (APL) is squeezed with a layer of polyethylene inner sheath after longitudinal wrapping, and the flame-retardant outer sheath is extruded after the double-sided plastic-coated steel strip (PSP) is longitudinally wrapped into a cable.
GYFTZA53 optical cables are suitable for urban underground pipelines, direkte Beerdigung, overhead and other laying environments, and are often used in long-distance communication, data center connection, broadband access network and other occasions.

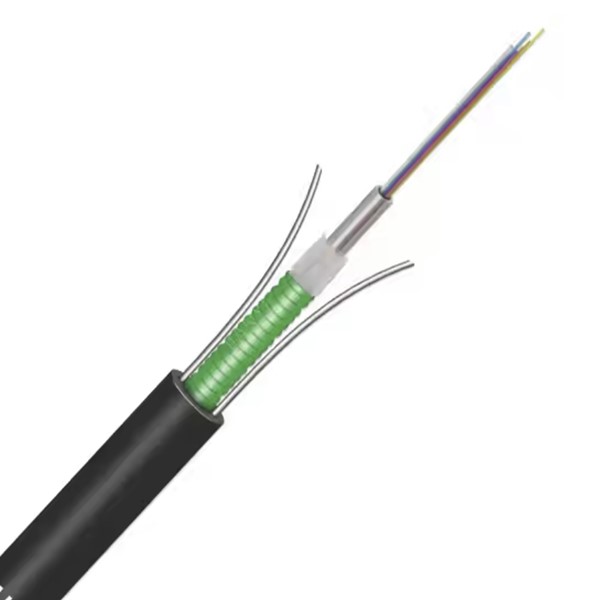

GYFTZA53-62~72Xn Optic Cable Product Pictures
GYFTZA53-62~72Xn Optic Cable Product Specifications
| Glasfaserkabelmodell (In Inkrementen von 2-Fasern) |
Anzahl der Fasern | Anzahl der Gehäuse | Number of infill ropes | Reference cable weight （kg/km） | Zugkraft ist erlaubt Langfristig/kurzfristig (N) |
Zulässige Kürbiskraft Langfristig/kurzfristig (N/100mm) |
Biegeradius Statisch/dynamisch (mm) |
|
| GYFTZA53-2~6Xn | 2~ 6 | 1 | 7 | 275 | 1000/3000 | 1000/3000 | 12.5D/25d | |
| GYFTZA53-8~12Xn | 8~12 | 2 | 6 | 275 | ||||
| GYFTZA53-14~18Xn | 14~ 18 | 3 | 5 | 275 | ||||
| GYFTZA53-20~24Xn | 20~24 | 4 | 4 | 275 | ||||
| GYFTZA53-26~30Xn | 26~ 30 | 5 | 3 | 275 | ||||
| GYFTZA53-32~36Xn | 32~36 | 6 | 2 | 275 | ||||
| GYFTZA53-38~42Xn | 38~ 42 | 7 | 1 | 275 | ||||
| GYFTZA53-44~48Xn | 44~48 | 8 | 0 | 275 | ||||
| GYFTZA53-50~60Xn | 50~60 | 5 | 3 | 290 | ||||
| GYFTZA53-62~72Xn | 62~ 72 | 6 | 2 | 290 | ||||
| GYFTZA53-74~84Xn | 74~ 84 | 7 | 1 | 290 | ||||
| GYFTZA53-86~96Xn | 86~ 96 | 8 | 0 | 290 | ||||
| GYFTZA53-98~108Xn | 98~ 108 | 9 | 1 | 327 | ||||
| GYFTZA53-110~120Xn | 110~ 120 | 10 | 0 | 327 | ||||
| GYFTZA53-122~132Xn | 122~ 132 | 11 | 1 | 384 | ||||
| GYFTZA53-134~144Xn | 134~ 144 | 12 | 0 | 384 | ||||
| Fasertyp | Attenuation （+20℃） | Bandbreite | Numerical aperture | Faserkabel-Grenzwellenlänge | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | - | - | ≤ 0,36 dB/km | ≤ 0,22 dB/km | - | - | - | ≤1260 nm |
| G.655 | - | - | ≤ 0,40 dB/km | ≤0,23 dB/km | - | - | - | ≤ 1450 nm |
| 50/125µm | ≤3,3 dB/km | ≤ 1,2 dB/km | - | - | ≥500 MHz · km | ≥500 MHz · km | 0.200± 0,015 bereits | - |
| 62.5/125µm | ≤3,5 dB/km | ≤ 1,2 dB/km | - | - | ≥200 MHz · km | ≥500 MHz · km | 0.275± 0,015 bereits | - |
GYFTZA53-62~72Xn Optic Cable Product Features
- Non-Metallic Central Reinforcing Core (FRP): The central strength member is a non-metallic FRP (Fiber Reinforced Plastic) Kern, offering excellent tensile strength and structural integrity without electromagnetic interference.
- Exceptional Mechanical and Temperature Performance: Engineered to perform reliably under mechanical stress and across a wide range of temperatures, making it suitable for various outdoor environments.
- Moisture-Resistant Aluminum Tape Coating: Longitudinally wrapped coated aluminum tape provides effective moisture resistance, enhancing the cable’s durability in wet conditions.
- Double-Sided Corrugated Steel Tape (PSP) Armor: The cable’s armor features double-sided coated steel tape, offering enhanced protection against moisture ingress and mechanical impacts, ensuring reliability in challenging environments.

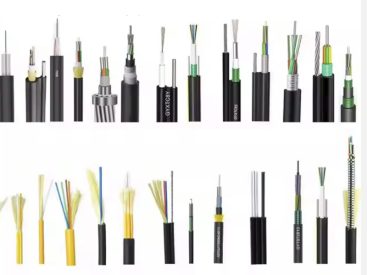

GYFTZA53-62~72Xn Optic Cable Product And More Optic Cables
Loose sleeve stranded Licht armored Faser strip Kabel (GYDTS)
Stranded loose jacket unarmoured fiber Öptic cable (GYDTA)
Stranded Loose Jacket NAn-Metallic Reinforced Core NAn-Armoured Flame Retardant Fiber Öptic Cable (GYFTZY)
Loose Sleeve Stranded Reinforced core Armored flame Retardant Öptical cable(GYTZA53)
Loose Sleeve Stranded NAn-Metallic Reinforced core Armored flame Retardant fiber Öptic cable (GYFTZA53)
Stranded Flame Retardant Fiber Öptic Cable (GYTZS)
Stranded loose jacket NAn-Armoured flame Retardant fiber Öptic cable (GYTZA)
Stranded loose Sleeve NAn-Metallic Reinforced core Armored fiber Öptic cable (GYFTA53)
Stranded NAn-Metallic Reinforcing core Plain Armored fiber Öptic cable (GYFTY53)
Stranded loose jacket NAn-Metallic Reinforced core unarmoured fiber Öptic cable (GYFTA)
Loose Sleeve Stranded NAn-Metallic Reinforced core Öptical cable (GYHTY)
Stranded loose jacket NAn-Metallic Reinforced core unarmoured fiber Öptic cable (GYFTY)
Loose Sleeve Stranded Single thin Round Steel wire Armored fiber Öptic cable (GYTA53 33)
GYFTZA53-62~72Xn Optic Cable Product Applications
Underground Duct Installations: Suitable for underground ducts, as the water-blocking gel and aluminum tape provide excellent protection against moisture ingress.
Tunnel and Subway Systems: Designed for use in tunnels, subways, and confined spaces, ensuring flame retardancy and reliable communication in challenging conditions.
Coastal and High-Humidity Areas: Effective in regions prone to heavy rain, high humidity, or coastal environments, with robust moisture-blocking and corrosion-resistant properties.
Aerial Deployments: Lightweight and strong, making it ideal for aerial installations where the non-metallic core prevents electromagnetic interference.
GYFTZA53-62~72Xn Optic Cable Product Structure
