GYTZS-62~72Xn Optic Cable is Stranded Loose Tube Flame-retardant Cable
GYTZS-62~72Xn Optic Cable Product Overview
The structure of optical cables consists of a 250µm optical fiber encased in a loose tube made of high-modulus materials, with waterproof compounds filling the inside of the loose tube. At the center of the cable core is a metal strength member, and for some types of optical cables, eine zusätzliche Schicht Polyethylen (SPORT) is extruded around the metal strength member. The loose tubes and filling yarns are twisted around the central strength member to form a compact and round cable core, Mit Lücken im Kabelkern, gefüllt mit Wasserblockierungsmaterial gefüllt. Ein doppelseitiges Stahlband (PSP) is then longitudinally wrapped and extruded to form a flame-retardant outer sheath. Optical cables are communication cables made up of one or more optical fibers that serve as the transmission medium. To protect the optical fibers from physical damage, moisture, and other external factors, optical cables are typically wrapped with one or more layers of protective materials, such as plastic sheaths and steel wires.

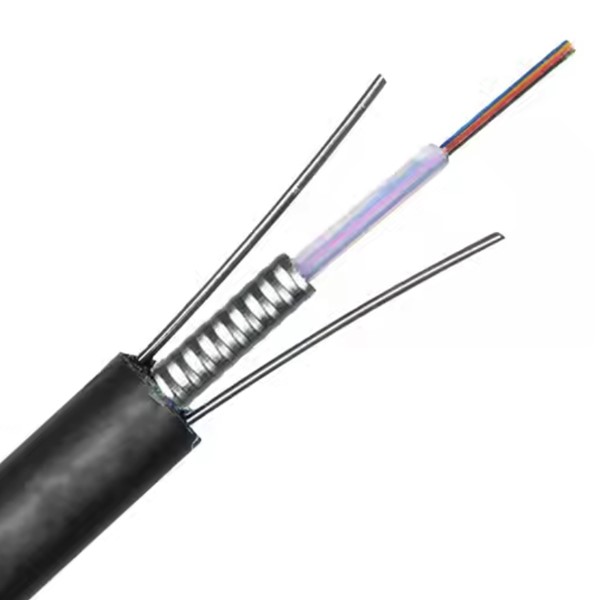

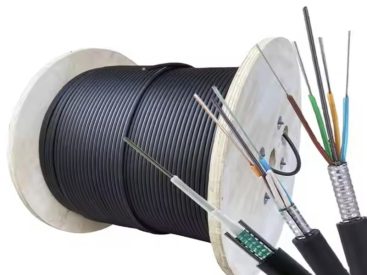

GYTZS-62~72Xn Optic Cable Product Pictures
GYTZS-62~72Xn Optic Cable Product Specifications
| Glasfaserkabelmodell (In Inkrementen von 2-Fasern) | Anzahl der Fasern | Anzahl der Gehäuse | Anzahl der Infill -Seile | Referenzkabelgewicht (kg/km. | Zugkraft erlaubt Langfristig/kurzfristig (N) |
Zulässige Kürbiskraft Langfristig/kurzfristig (N/100mm) |
Biegeradius Statisch/dynamisch (mm) |
|
| Gytzs-2 ~ 6xn | 2~ 6 | 1 | 4 | 118 | 600/1500 | 300/1000 | 10D/20D | |
| Gytzs-8 ~ 12xn | 8~12 | 2 | 3 | 118 | ||||
| Gytzs-14 ~ 18xn | 14~ 18 | 3 | 2 | 118 | ||||
| Gytzs-20 ~ 24xn | 20~24 | 4 | 1 | 118 | ||||
| Gytzs-26 ~ 30xn | 26~ 30 | 5 | 0 | 118 | ||||
| Gytzs-32 ~ 36xn | 32~36 | 6 | 0 | 131 | ||||
| Gytzs-38 ~ 48xn | 38~48 | 4 | 1 | 139 | ||||
| Gytzs-50 ~ 60xn | 50~60 | 5 | 0 | 139 | ||||
| GYTZS-62 ~ 72XN | 62~ 72 | 6 | 0 | 170 | ||||
| Gytzs-74 ~ 84xn | 74~ 84 | 7 | 1 | 200 | ||||
| Gytzs-86 ~ 96xn | 86~ 96 | 8 | 0 | 200 | ||||
| Gytzs-98 ~ 108xn | 98~ 108 | 9 | 1 | 230 | ||||
| Gytzs-110 ~ 120xn | 110~ 120 | 10 | 0 | 230 | ||||
| GYTZS-122 ~ 132XN | 122~ 132 | 11 | 1 | 268 | ||||
| Gytzs-134 ~ 144xn | 134~ 144 | 12 | 0 | 268 | ||||
| GYTZS-146 ~ 216XN | 146~ 216 | 13~ 18 | 5~0 | 268 | ||||
| GYTZS-288XN | 288 | 24 | 0 | 360 | ||||
| Fasertyp | Dämpfung | Bandbreite | Numerische Apertur | Faserkabel-Grenzwellenlänge | ||||
| （+20 ℃） | ||||||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | - | - | ≤ 0,36 dB/km | ≤ 0,22 dB/km | - | - | - | ≤1260 nm |
| G.655 | - | - | ≤ 0,40 dB/km | ≤0,23 dB/km | - | - | - | ≤ 1450 nm |
| 50/125µm | ≤3,3 dB/km | ≤ 1,2 dB/km | - | - | ≥500 MHz · km | ≥500 MHz · km | 0.200± 0,015 bereits | - |
| 62.5/125µm | ≤3,5 dB/km | ≤ 1,2 dB/km | - | - | ≥200 MHz · km | ≥500 MHz · km | 0.275± 0,015 bereits | - |
GYTZS-62~72Xn Optic Cable Product Features
- Hydrolysis-Resistant Loose Tube Material: Constructed from high-modulus material, the loose tube offers excellent resistance to hydrolysis and high mechanical strength, ensuring long-term reliability and durability.
- Thixotropic Gel Filling: The loose tube is filled with thixotropic gel, providing essential sealing and water-blocking protection to safeguard the optical fibers from environmental moisture and damage.
- Flame-Retardant Sheath Material: The outer sheath is made of a flame-retardant material, delivering superior fire resistance to meet safety requirements in high-risk environments.
GYTZS-62~72Xn Optic Cable Product and More Optic Cables
Loose tube stranded non-metallic reinforced core non-armored flame-retardant optical cable (GYFTZY)
Loose tube stranded reinforced core armored flame-retardant optical cable (Gytza53)
Loose tube stranded non-metallic reinforced core armored flame-retardant optical cable (Gyftza53)
Loses röhrchen gestrandetes flammeinspannendes optisches Kabel (Gytzs)
Lose Röhrchen, nicht gepanzertes flammenretardanter optisches Kabel (Gytza)
Loose tube stranded non-metallic reinforced core armored optical cable (Cyfta53)
Loose tube stranded non-metallic reinforced core ordinary armored optical cable (Cyfty53)
Loose tube stranded non-metallic reinforced core non-armored optical cable (ZUSAMMEN)
Loose tube stranded non-metallic reinforced core optical cable (Gyhty)
Loose tube stranded non-metallic reinforced core non-armored optical cable (Cousin)
Lose Rohrstranded Eine Stahldrahtgepanzerte optisches Kabel (Gyta53 33)
Lose Rohrstranded verstärktes gepanzertes optisches Kabel (Gyta53)
Loose tube stranded ordinary armored optical cable (Gyty53)
Lockeres röhrchenstrangiertes leichtes optisches Kabel (Konsonant)
GYTZS-62~72Xn Optic Cable Product Applications
- Lufteinsätze: Lightweight and strong, making it ideal for aerial installations where the non-metallic core prevents electromagnetic interference.
- Critical Infrastructure Projects: Essential for smart city projects, transportation hubs, and emergency communication networks, where safety, Zuverlässigkeit, and high performance are prioritized.
- Remote and Rural Networks: Suitable for long-distance communication in remote or rural areas, offering durable construction to withstand harsh weather conditions.

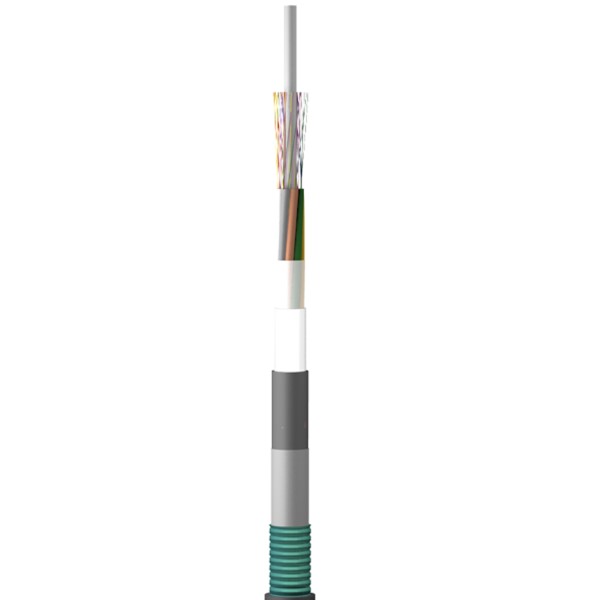

GYTZS-62~72Xn Optic Cable Product Structure
