GYTZA-32~36Xn Optic Cable is Flame-retardance Stranded Loose Tube Optical Cable, Applicable: pipelines, overhead
GYTZA-32~36Xn Optic Cable Product Overview
GYTZA optical cable uses a metal reinforced component and a loose tube layer stranding filling structure, featuring a full-width water-blocking structure and double-sided laminated aluminum foil for excellent water and moisture resistance. The loose tube is filled with a special oil paste to provide critical protection for the optical fibers. The phosphated steel wire center reinforcement has a high modulus and is corrosion-resistant. The jacket is made of low-smoke halogen-free materials, showcasing good flame retardant and environmental properties. Επιπροσθέτως, GYTZA optical cable is primarily used for the entrance sections of core nodes and important aggregation nodes, with a typical segment length not less than 500 μέτρα. Due to its flame retardant characteristics, it is suitable for use in environments that require high safety standards. Εξάλλου, GYTZA optical cable can be installed via overhead and duct installation methods, making it suitable for various outdoor environments. The lifespan of GYTZA optical cable can reach over 25 χρόνια, offering good mechanical performance and environmental adaptability.

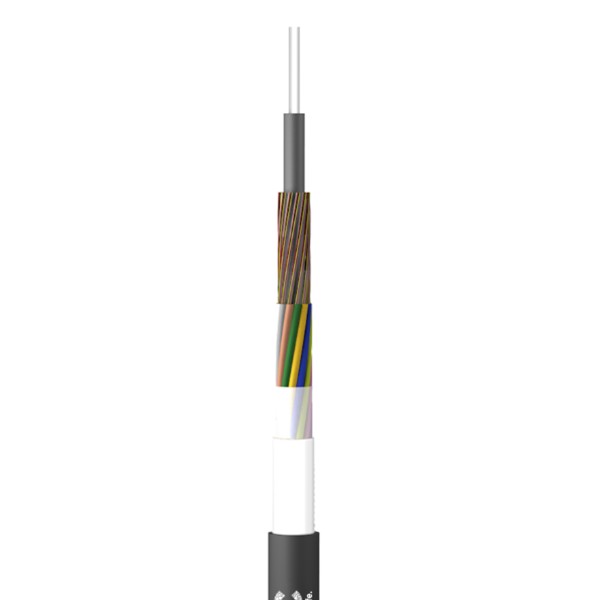

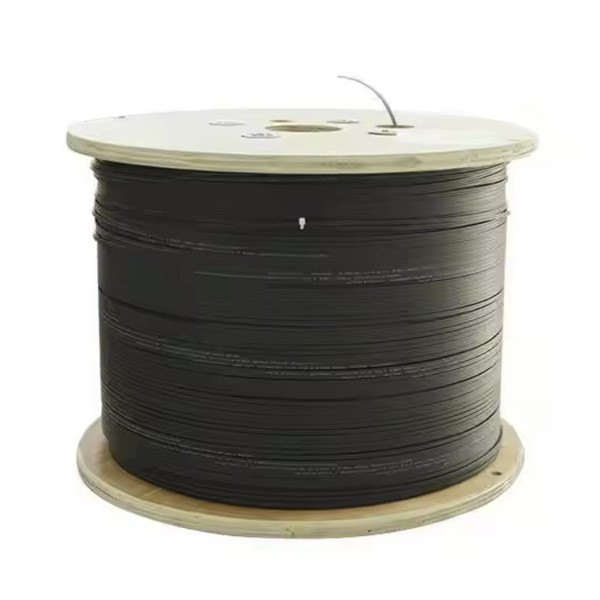

GYTZA-32~36Xn Optic Cable Product Picture
GYTZA-32~36Xn Optic Cable Product Specifications
| Fiber cable model (in increments of 2 ίνες) | Number of optical fiber tubes | Number of sleeves | Number of filling ropes | Reference optical cable weight (kg/km) | Allowable tensile force Long-term/short-term (Ν) | Allowable crushing force long term/short term (N/100mm) | Bending radius static/dynamic (mm) | |
| GYTZA-2~6Xn | 2~6 | 1 | 4 | 101 | 600/1500 | 300/1000 | 10D/20D | |
| GYTZA-8~12Xn | 8~12 | 2 | 3 | 101 | ||||
| GYTZA-14~18Xn | 14~18 | 3 | 2 | 101 | ||||
| σολYTZA-20~24Xn | 20~24 | 4 | 1 | 101 | ||||
| GYTZA-26~30Xn | 26~30 | 5 | 0 | 101 | ||||
| GYTZA-32~36Xn | 32~36 | 6 | 0 | 111 | ||||
| GYTZA-38~48Xn | 38~48 | 4 | 1 | 117 | ||||
| GYTZA-50~60Xn | 50~60 | 5 | 0 | 117 | ||||
| GYTZA-62~72Xn | 62~72 | 6 | 0 | 144 | ||||
| GYTZA-74~84Xn | 74~84 | 7 | 1 | 171 | ||||
| GYTZA-86~96Xn | 86~96 | 8 | 0 | 171 | ||||
| GYTZA-98~108Xn | 98~108 | 9 | 1 | 198 | ||||
| GYTZA-110~120Xn | 110~120 | 10 | 0 | 198 | ||||
| GYTZA-122~132Xn | 122~132 | 11 | 1 | 229 | ||||
| GYTZA-134~144Xn | 134~144 | 12 | 0 | 229 | ||||
| GYTZA-146~216Xn | 146~216 | 13~18 | 5~0 | 229 | ||||
| Fiber optic type | Attenuation (20°C) | εύρος ζώνης | Numerical aperture | Optical fiber cutoff wavelength | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @ 850nm | @1300nm | |||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0.40dB/km | ≤0.23dB/km | — | — | — | ≤1450nm |
| 50/125μm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125μm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYTZA-32~36Xn Optic Cable Product Features
- Accurate process control ensuring good mechanical and temperature performances
- The material of loose tubes with good hydrolysis resistance and relatively high strength
- LSZH sheath ensuring good flame-retardant performance
- Water resistance of optical cable is ensured by the following measures
- Special water-blocking compound filled in loose tubes
- Laminated aluminum tape armor
- Water-blocking material ensuring longitudinal water resistance
GYTZA-32~36Xn Optic Cable Product And More Optic Cables
Loose tube twisted flame-retardant optical cable (GYTZS)
Loose tube twisted non-metallic reinforcement core armored optical cable (GYFTA53)
Loose tube twisted non-metallic reinforcement core ordinary armored optical cable (GYFTY53)
Loose tube twisted non-metallic reinforcement core non-armored optical cable (GYFTA)
Loose tube twisted non-metallic reinforcement core optical cable (GYHTY)
Loose tube twisted non-metallic reinforcement core non-armored optical cable (GYFTY)
Loose tube twisted single steel wire armored optical cable (GYTA53 33)
Loose tube twisted enhanced armored optical cable (GYTA53)
Loose tube twisted ordinary armored optical cable (GYTY53)
Loose tube twisted light armored optical cable (GYTS)
Loose tube twisted non-armored optical cable (GYTA)
GYTZA-32~36Xn Optic Cable Product Applications
- Outdoor Duct Installations: The cable’s robust construction and moisture-proof aluminum tape layer make it ideal for duct installations exposed to environmental challenges such as water ingress and temperature fluctuations.
- Campus and Enterprise Networks: Suitable for linking large-scale campuses or enterprise facilities where fire safety standards must be strictly observed.
- Rural and Remote Areas: Can be used in rural or remote outdoor networks that require long-distance connectivity with reliable water-blocking and mechanical performance.
- Emergency Communication Networks: Suitable for emergency response communication systems, where reliability under extreme conditions and flame resistance are vital. Public Infrastructure Projects: Frequently used in public infrastructure projects such as smart cities, highways, and transportation hubs, where fire safety and environmental durability are prioritized.

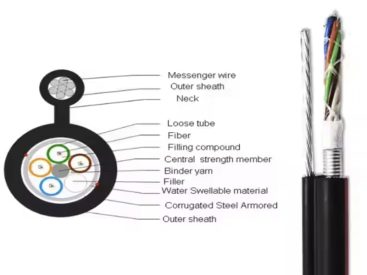

GYTZA-32~36Xn Optic Cable Product Structure
