Περιγραφή
GYTZA-38~48Xn Optic Cable is Loose Tube Layer Stranded Non-armored Flame-retardant Optical Cable
GYTZA-38~48Xn Optic Cable Product Overview
The structure of GYTZA optical cable consists of a 250µm optical fiber housed in a loose tube made of high-modulus material, with the loose tube filled with a waterproof compound. At the center of the cable core is a metal strength member, and for certain fiber counts, an additional layer of polyethylene (Π.Ε) is extruded around the metal strength member. The loose tube (and filler ropes) is twisted around the central strength member to form a compact and round cable core, with the gaps inside the cable core filled with water-blocking material. After wrapping with coated aluminum tape (APL), a flame-retardant sheath is extruded to form the cable.
A flame-retardant outer sheath, extruded over longitudinally wrapped coated aluminum tape, delivers superior fire resistance and environmental protection. This innovative design ensures the cable’s safety and durability in challenging conditions, including areas with stringent fire safety requirements.

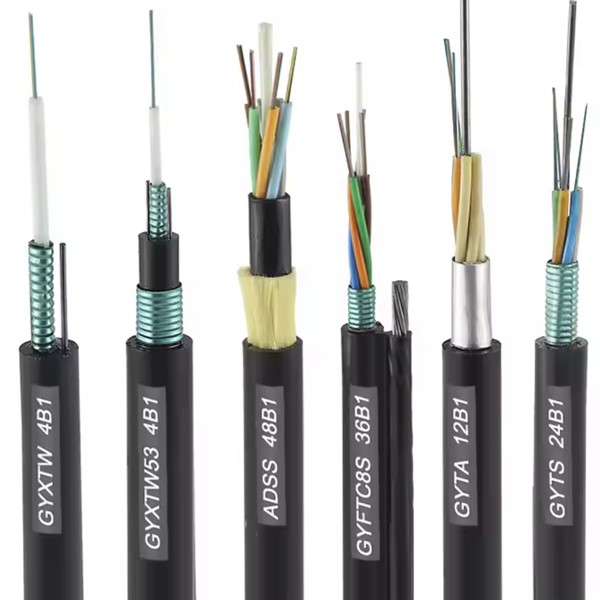

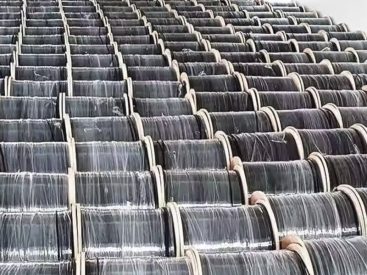

GYTZA-38~48Xn Optic Cable Product Pictures
GYTZA-38~48Xn Optic Cable Product Specifications
| Fiber cable model (in increments of 2 ίνες) | Number of optical fiber tubes | Number of sleeves | Number of filling ropes | Reference optical cable weight (kg/km) | Allowable tensile force Long-term/short-term (Ν) | Allowable crushing force long term/short term (N/100mm) | Bending radius static/dynamic (mm) | |
| GYTZA-2~6Xn | 2~6 | 1 | 4 | 101 | 600/1500 | 300/1000 | 10D/20D | |
| GYTZA-8~12Xn | 8~12 | 2 | 3 | 101 | ||||
| GYTZA-14~18Xn | 14~18 | 3 | 2 | 101 | ||||
| σολYTZA-20~24Xn | 20~24 | 4 | 1 | 101 | ||||
| GYTZA-26~30Xn | 26~30 | 5 | 0 | 101 | ||||
| GYTZA-32~36Xn | 32~36 | 6 | 0 | 111 | ||||
| GYTZA-38~48Xn | 38~48 | 4 | 1 | 117 | ||||
| GYTZA-50~60Xn | 50~60 | 5 | 0 | 117 | ||||
| GYTZA-62~72Xn | 62~72 | 6 | 0 | 144 | ||||
| GYTZA-74~84Xn | 74~84 | 7 | 1 | 171 | ||||
| GYTZA-86~96Xn | 86~96 | 8 | 0 | 171 | ||||
| GYTZA-98~108Xn | 98~108 | 9 | 1 | 198 | ||||
| GYTZA-110~120Xn | 110~120 | 10 | 0 | 198 | ||||
| GYTZA-122~132Xn | 122~132 | 11 | 1 | 229 | ||||
| GYTZA-134~144Xn | 134~144 | 12 | 0 | 229 | ||||
| GYTZA-146~216Xn | 146~216 | 13~18 | 5~0 | 229 | ||||
| Fiber optic type | Attenuation (20°C) | εύρος ζώνης | Numerical aperture | Optical fiber cutoff wavelength | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @ 850nm | @1300nm | |||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0.40dB/km | ≤0.23dB/km | — | — | — | ≤1450nm |
| 50/125μm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125μm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYTZA-38~48Xn Optic Cable Product Features
- It has excellent mechanical properties and temperature characteristics.
- The loose tube material itself has good hydrolysis resistance and high strength.
- The tube is filled with a special oil paste, providing critical protection to the optical fibers.
- The specially designed compact cable structure effectively prevents sheath shrinkage.
- Good compressive strength and flexibility.
- The special sheath has excellent flame retardant properties.
- The following measures are taken to ensure the waterproof performance of the cable:
- Single steel wire central reinforcement core.
- The loose tube is filled with special waterproof compounds.
- Fully filled cable core.
- PVC aluminum tape (APL) moisture-proof layer.
GYTZA-38~48Xn Optic Cable Product and More Optic Cables
Central tube non-armored optical cable (GYXY)
Central tube light armored optical cable (GYXS/GYXTW)
Loose tube layer stranded light armored fiber optic ribbon cable (GYDTS)
Loose tube layer stranded non-armored fiber optic ribbon cable (GYDTA)
Loose tube layer stranded non-metallic strengthened core non-armored flame-retardant optical cable (GYFTZY)
Loose tube layer stranded reinforced core armored flame-retardant optical cable (GYTZA53)
Loose tube layer stranded non-metallic strengthened core armored flame-retardant optical cable (GYFTZA53)
Loose tube layer stranded flame-retardant optical cable (GYTZS)
Loose tube layer stranded non-metallic strengthened core armored optical cable (GYFTA53)
Loose tube layer stranded non-metallic strengthened core ordinary armored optical cable (GYFTY53)
Loose tube layer stranded non-metallic strengthened core non-armored optical cable (GYFTA)
Loose tube layer stranded non-metallic strengthened core optical cable (GYHTY)
Loose tube layer stranded non-metallic strengthened core non-armored optical cable (GYFTY)
Loose tube layer stranded single thin round steel wire armored optical cable (GYTA53 33)
GYTZA-38~48Xn Optic Cable Product Applications
- Long-distance communication: Used for long-distance data transmission between countries and internationally.
- Metropolitan area network: Connects different network nodes within a city.
- Local area network: Used for high-speed data transmission in local networks such as businesses, schools, and homes.
- Data center: Connects servers, storage devices, and network devices to achieve high-speed internal communication.
GYTZA-38~48Xn Optic Cable Product Structure
