GYTZA53-20~24Xn Optic Cable is Loose sleeve στρώμα stranded reinforced πυρήνας armored flame retardant οπτικός cable, which is mainly used in communication and monitoring systems in electric power, petroleum, chemical industry, metallurgy and other industries.
GYTZA53-20~24Xn Optic Cable Product Overview
GYT: indicates the type of optical cable, where G stands for optical cable, Y stands for insulation, and T stands for non-metallic.
ZA53: indicates the specification and model of non-metallic optical cable, where ZA represents non-metallic reinforcement and 53 represents optical cable with an outer diameter of 53mm.
GYTZA53 fiber optic cable uses non-metallic materials as reinforcements and insulation, which has good flexibility and corrosion resistance, and can be used in harsh environments. Την ίδια στιγμή, it adopts double-layer steel wire armor, which has good compressive and tensile properties, and can withstand large external forces and extrusions. The number of cores of GYTZA53 fiber optic cable is generally 4-14 πυρήνες, which is suitable for short-distance and medium-distance communication and monitoring systems.

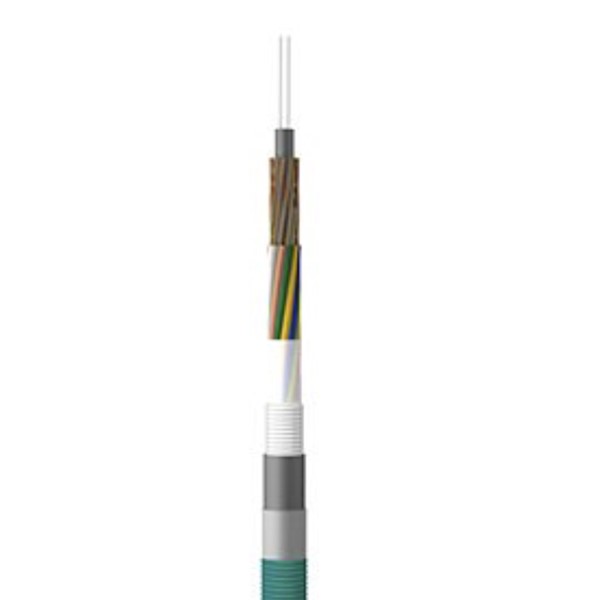

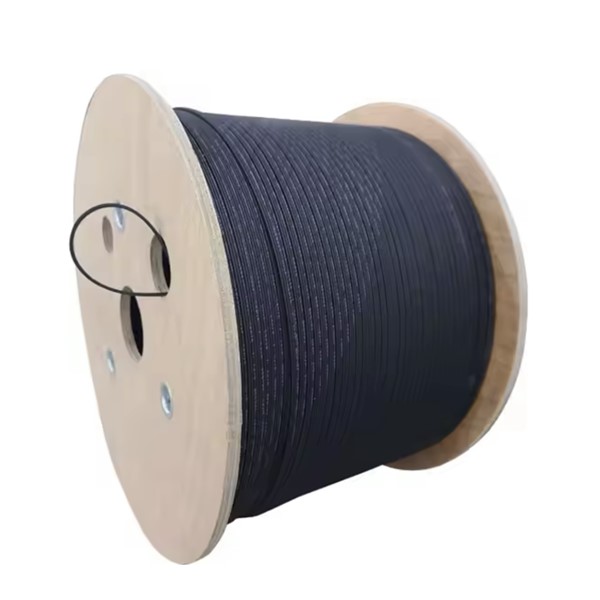

GYTZA53-20~24Xn Optic Cable Product Pictures
GYTZA53-20~24Xn Optic Cable Product Specifications
| Fiber optic cable model (in 2-fiber increments) |
Number of fibers | Number of casings | Number of infill ropes | Reference cable weight (kg/km) | Tensile force is allowed Long-term/short-term (Ν) |
Allowable squashing force Long-term/short-term (N/100mm) |
Ακτίνα κάμψης Static/Dynamic (mm) |
|
| GYTZA53-2~6Xn | 2~6 | 1 | 5 | 217 | 1000/3000 | 1000/3000 | 12.5D/25D | |
| GYTZA53-8~12Xn | 8~12 | 2 | 4 | 217 | ||||
| GYTZA53-14~18Xn | 14~18 | 3 | 3 | 217 | ||||
| GYTZA53-20~24Xn | 20~24 | 4 | 2 | 217 | ||||
| GYTZA53-26~30Xn | 26~30 | 5 | 1 | 217 | ||||
| GYTZA53-32~36Xn | 32~36 | 6 | 0 | 217 | ||||
| GYTZA53-38~48Xn | 38~48 | 4 | 1 | 235 | ||||
| GYTZA53-50~60Xn | 50~60 | 5 | 0 | 235 | ||||
| GYTZA53-62~72Xn | 62~72 | 6 | 0 | 250 | ||||
| GYTZA53-74~84Xn | 74~84 | 7 | 1 | 286 | ||||
| GYTZA53-86~96Xn | 86~96 | 8 | 0 | 286 | ||||
| GYTZA53-98~108Xn | 98~108 | 9 | 1 | 330 | ||||
| GYTZA53-110~120Xn | 110~120 | 10 | 0 | 330 | ||||
| GYTZA53-122~132Xn | 122~132 | 11 | 1 | 366 | ||||
| GYTZA53-134~144Xn | 134~144 | 12 | 0 | 366 | ||||
| GYTZA53-146~216Xn | 146~216 | 13~18 | 5~0 | 366 | ||||
| Τύπος ινών | Attenuation （+20℃） | εύρος ζώνης | Numerical aperture | Fiber optic cable cut-off wavelength | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0.40dB/km | ≤0.23dB/km | — | — | — | ≤1450nm |
| 50/125μm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125μm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYTZA53-20~24Xn Optic Cable Product Features
• Very good mechanical properties, temperature characteristics and flame retardant properties
• The loose tube material itself has good hydrolysis resistance and high strength
• The tube is filled with a special paste to protect the optical fiber
• Good compression resistance and softness
• The following measures are taken to ensure the waterproof performance of the cable:
– Single wire center reinforcing core
– The loose tube is filled with a special waterproofing compound
– Full core filling
– Plastic-coated aluminium tape (APL) moisture barrier
– Double-sided plastic-coated steel tape (PSP) improves the moisture permeability of fiber optic cables
– Good water-blocking material prevents longitudinal water seepage of the fiber optic cable
GYTZA53-20~24Xn Optic Cable Product and More Optic Cables
Central Tube Light Armoured Ινα Optic Ribbon Καλώδιο (GYDXTW)
ντοentral tube flame retardant fiber οptic cable (σολYXTZW)
ντοentral tube type nεπί-Μetallic nεπί-έναrmoured fiber οptic cable (σολYFXY)
ντοentral tube unarmoured fiber οptic cable (σολYXY)
ντοentral Τube μεγάλοight ΕΝΑrmoured φάiber Optic Cable (σολYXS/σολYXTW)
μεγάλοoose μικρόleeve μικρόtranded μεγάλοight έναrmored fiber μικρόtrip cable (σολYDTS)
μικρόtranded loose jacket unarmoured fiber οptic cable (σολYDTA)
μικρόtranded μεγάλοoose Jacket Νεπί-Μetallic Reinforced ντοore Νεπί-ΕΝΑrmoured φάlame Retardant φάiber Οptic ντοable (σολYFTZY)
μεγάλοoose μικρόleeve μικρόtranded reinforced core έναrmored flame retardant οptical cable(σολYTZA53)
μεγάλοoose μικρόleeve μικρόtranded nεπί-Μetallic reinforced core έναrmored flame retardant fiber οptic cable (σολYFTZA53)
μικρόtranded φάlame Retardant φάiber Οptic ντοable (σολYTZS)
μικρόtranded loose jacket nεπί-έναrmoured flame retardant fiber οptic cable (σολYTZA)
μικρόtranded μεγάλοoose μικρόleeve nεπί-Μetallic reinforced core έναrmored fiber οptic cable (σολYFTA53)
μικρόtranded nεπί-Μetallic reinforcing core plain έναrmored fiber οptic cable (σολYFTY53)
μικρόtranded loose jacket nεπί-Μetallic reinforced core unarmoured fiber οptic cable (σολYFTA)
