SKU: GYTZA53-38~48Xn Optic Cable Κατηγορία: Ετικέτες: ,

Περιγραφή

GYTZA53-38~48Xn Optic Cable is Loose Tube Layer Stranded Reinforced Core Armored Flame-retardant Optical Cable

GYTZA53-38~48Xn Optic Cable Product Overview

GYTZA53 optical cable is engineered to deliver high performance and reliability in demanding outdoor environments. Colored optical fibers are securely placed in a loose tube made of high-modulus material, offering superior hydrolysis resistance and mechanical strength. The tube is filled with thixotropic gel, providing critical water-blocking and sealing protection to the optical fibers.
The cable’s construction includes a coated aluminum tape, longitudinally wrapped and encased in a polyethylene inner sheath for added protection. A double-sided coated steel tape armor layer provides enhanced mechanical robustness and forms a flame-retardant outer protective layer, ensuring compliance with fire safety standards.

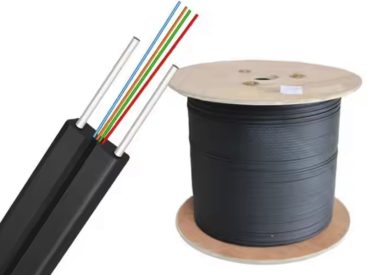

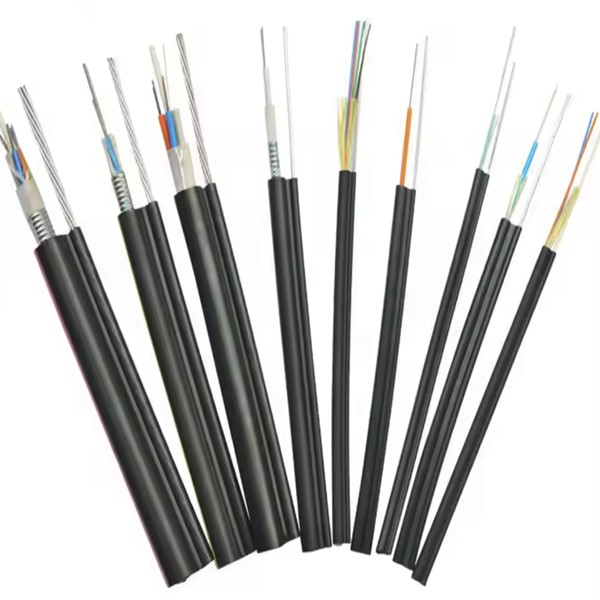

GYTZA53-38~48Xn Optic Cable Product Pictures

GYTZA53-38~48Xn Optic CableGYTZA53-38~48Xn Optic Cable price ycict

GYTZA53-38~48Xn Optic Cable price and specs ycictGYTZA53-38~48Xn

GYTZA53-38~48Xn Optic Cable Product Specifications

Fiber optic cable model
(in 2-fiber increments)		 Number of fibers Number of casings Number of infill ropes Reference cable weight (kg/km) Tensile force is allowed
Long-term/short-term
(Ν)		 Allowable squashing force
Long-term/short-term
(N/100mm)		 Ακτίνα κάμψης
Static/Dynamic
(mm)
GYTZA53-2~6Xn 2~6 1 5 217 1000/3000 1000/3000 12.5D/25D
GYTZA53-8~12Xn 8~12 2 4 217
GYTZA53-14~18Xn 14~18 3 3 217
GYTZA53-20~24Xn 20~24 4 2 217
GYTZA53-26~30Xn 26~30 5 1 217
GYTZA53-32~36Xn 32~36 6 0 217
GYTZA53-38~48Xn 38~48 4 1 235
GYTZA53-50~60Xn 50~60 5 0 235
GYTZA53-62~72Xn 62~72 6 0 250
GYTZA53-74~84Xn 74~84 7 1 286
GYTZA53-86~96Xn 86~96 8 0 286
GYTZA53-98~108Xn 98~108 9 1 330
GYTZA53-110~120Xn 110~120 10 0 330
GYTZA53-122~132Xn 122~132 11 1 366
GYTZA53-134~144Xn 134~144 12 0 366
GYTZA53-146~216Xn 146~216 13~18 5~0 366
Τύπος ινών Attenuation （+20℃） εύρος ζώνης Numerical aperture Fiber optic cable cut-off wavelength
@850nm @1300nm @1310nm @1550nm @850nm @1300nm
G.652 — — ≤0.36dB/km ≤0.22dB/km — — — ≤1260nm
G.655 — — ≤0.40dB/km ≤0.23dB/km — — — ≤1450nm
50/125μm ≤3.3dB/km ≤1.2dB/km — — ≥500MHz·km ≥500MHz·km 0.200±0.015 NA —
62.5/125μm ≤3.5dB/km ≤1.2dB/km — — ≥200MHz·km ≥500MHz·km 0.275±0.015 NA —

GYTZA53-38~48Xn Optic Cable Product Features

  • • Muy buenas propiedades mecánicas, características de temperatura y propiedades ignífugas
    • El material del tubo suelto en sí tiene buena resistencia a la hidrólisis y alta resistencia
    • El tubo está relleno con una pasta especial para proteger la fibra óptica
    • Buena resistencia a la compresión y suavidad
    • Se toman las siguientes medidas para garantizar el rendimiento impermeable del cable:
    – Núcleo de refuerzo central de un solo cable
    – El tubo suelto está relleno con un compuesto impermeabilizante especial
    – Llenado de núcleo completo
    – Cinta de aluminio recubierta de plástico (APL) contra la humedad
    – La cinta de acero recubierta de plástico (PSP) de doble cara mejora la permeabilidad a la humedad de los cables de fibra óptica
    – Un buen material que bloquea el agua evita la filtración longitudinal de agua del cable de fibra óptica

GYTZA53-38~48Xn Optic Cable and More Optic Cables

  • Urban Communication Networks:

Ideal for backbone and distribution networks in cities where fire safety compliance and reliable performance are crucial.

  • Industrial and High-Risk Fire Areas:

Suitable for deployment in industrial zones, chemical plants, and other areas with potential fire hazards due to its flame-retardant outer sheath.

  • Underground Duct Installations:

Perfect for underground ducts or tunnels where moisture resistance and robust mechanical properties are necessary to prevent cable degradation.

  • Tunnel and Subway Systems:

Designed for confined spaces such as tunnels and subways, providing flame retardancy and high tensile strength for secure and safe operation.

GYTZA53-38~48Xn Optic Cable Product Structure
