Descripción
GYFTA53-2~6Xn Optic Cable is Loose sleeve layer stranded non-metallic reinforced core armored optical cable
GYFTA53-2~6Xn Optic Cable Product Overview
The structure of GYFTA53 fiber optic cable is that a 250μm optical fiber is sleeved into a loose tube made of high-modulus material, que está lleno de un compuesto impermeable. In the center of the core is a non-metallic reinforcing core (FRP), and for some core counts, una capa de polietileno (EDUCACIÓN FÍSICA) is squeezed on top of the non-metallic reinforcing core. El tubo suelto (y cuerda de relleno) are twisted around a central reinforcing core to form a compact and round core, y los espacios dentro del núcleo se llenan con un relleno que bloquea el agua.. The plastic-coated aluminum strip (APL) is squeezed with a layer of polyethylene inner sheath after longitudinal wrapping, and the double-sided plastic-coated steel strip (PSP) is extruded with polyethylene outer sheath after longitudinal wrapping to form a cable.
GYFTA53-2~6Xn Optic Cable Product Pictures
GYFTA53-2~6Xn Optic Cable Specifications
Fiber cable model (in increments of 2 fibras) | Number of optical fiber tubes | Number of sleeves | Number of filling ropes | Reference optical cable weight (kg/km) | Allowable tensile force Long-term/short-term (norte) | Allowable crushing force long term/short term (N/100mm) | Bending radius static/dynamic (milímetros) | |
GYFTA53-2~6Xn | 2~6 | 1 | 7 | 228 | 1000/3000 | 1000/3000 | 12.5D/25d | |
GYFTA53-8~12Xn | 8~12 | 2 | 6 | 228 | ||||
GYFTA53-14~18Xn | 14~18 | 3 | 5 | 228 | ||||
GYFTA53-20~24Xn | 20~24 | 4 | 4 | 228 | ||||
GYFTA53-26~30Xn | 26~30 | 5 | 3 | 228 | ||||
GYFTA53-32~36Xn | 32~36 | 6 | 2 | 228 | ||||
GYFTA53-38~42Xn | 38~42 | 7 | 1 | 228 | ||||
GYFTA53-44~48Xn | 44~48 | 8 | 0 | 228 | ||||
GYFTA53-50~60Xn | 50~60 | 5 | 3 | 240 | ||||
GYFTA53-62~72Xn | 62~72 | 6 | 2 | 240 | ||||
GYFTA53-74~84Xn | 74~84 | 7 | 1 | 240 | ||||
GYFTA53-86~96Xn | 86~96 | 8 | 0 | 240 | ||||
GYFTA53-98~108Xn | 98~108 | 9 | 1 | 276 | ||||
GYFTA53-110~120Xn | 110~120 | 10 | 0 | 276 | ||||
GYFTA53-122~132Xn | 122~132 | 11 | 1 | 326 | ||||
GYFTA53-134~144Xn | 134~144 | 12 | 0 | 326 | ||||
Fiber optic type | Atenuación (+20 ℃) | Banda ancha | Apertura numérica | Optical fiber cutoff wavelength | ||||
@ 850 nm | @1300nm | @1310nm | @1550nm | @ 850 nm | @1300nm | |||
G.652 | — | — | ≤0,36dB/km | ≤0,22 dB/km | — | — | — | ≤1260nm |
G.655 | — | — | ≤0,40 dB/km | ≤0,23 dB/km | — | — | — | ≤1450nm |
50/125µm | ≤3,3dB/km | ≤1,2 dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0,015 NA | — |
62.5/125µm | ≤3,5 dB/km | ≤1,2 dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0,015 NA | — |
GYFTA53-2~6Xn Optic Cable Features
- It has excellent mechanical properties and temperature characteristics.
- El material del tubo holgado en sí tiene buena resistencia a la hidrólisis y alta resistencia..
- Special oil paste fills the tube, providing critical protection for the optical fibers.
- It has good compressive strength and flexibility.
- Se toman las siguientes medidas para garantizar el rendimiento impermeable del cable.:
- A single non-metallic central reinforcement core
- The loose tube is filled with a special waterproof compound
- Complete core filling
- Cinta de aluminio plastificada (APL) barrera de humedad
- Cinta de acero recubierta de plástico de doble cara (PSP) to enhance the cable’s moisture resistance
- -Good water-blocking materials to prevent longitudinal water ingress in the cable.
GYFTA53-2~6Xn Optic Cable and More Optic Cables
Loose tube layer stranded reinforced core armored flame-retardant fiber optic cable (GYTZA53)
Loose tube layer stranded non-metal reinforced core armored flame-retardant fiber optic cable (GYFTZA53
)Loose tube layer stranded flame-retardant fiber optic cable (GYTZ)
Loose tube layer stranded non-armored flame-retardant fiber optic cable (GITZA)
Loose tube layer stranded non-metal reinforced core ordinary armored fiber optic cable (AG53)
Loose tube layer stranded non-metal reinforced core non-armored fiber optic cable (JUNTOS)
Loose tube layer stranded non-metal reinforced core fiber optic cable (GYHTY)
Loose tube layer stranded non-metal reinforced core non-armored fiber optic cable (LIMITADO)
Loose tube layer stranded single wire round steel armored fiber optic cable (GYTA53 33)
Loose tube layer stranded reinforced armored fiber optic cable (GYTA53)
Loose tube layer stranded ordinary armored fiber optic cable (GYTY53)
Loose tube layer stranded light armored fiber optic cable (GYTS)
Loose tube layer stranded non-armored fiber optic cable (CON)
GYFTA53-2~6Xn Optic Cable Product Applications
- Core scenarios: long-distance communication trunk lines, inter-office communication, direct burial projects (especially in high water level and rodent-prone areas).
- Special demand scenarios: areas with frequent lightning (non-metallic structures), environments requiring chemical corrosion resistance (PE sheath resistant to corrosion).

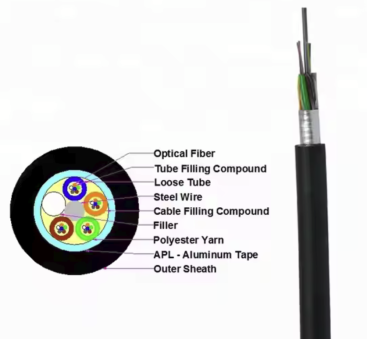

GYFTA53-2~6Xn Optic Cable Product Structure
