Description
Répartiteur PLC SC/UPC 1*32 Mini Type is 1*32 Sc/Upc Mini Type Optical Fiber Splitter with Low Insertion Loss Fiber Optical Splitter
Répartiteur PLC SC/UPC 1*32 Mini Type Overview
A planar optical wave circuit (API) splitter is an optical power management device manufactured using quartz optical waveguide technology. It has small size, grande fiabilité, wide operating wavelength range and good channel-to-channel uniformity and is widely used in PON networks to realize optical signal power distribution. We offer a full range of 1×N distributors, tailored to specific applications. All products meet the requirements of GR-1209-CORE-2001 and GR-1221-CORE-1999. The product features Low insertion loss, high isolation, low polarization-dependent loss , compact design, good channel-to-channel uniformity, wide operating wavelength range, high reliability and stability

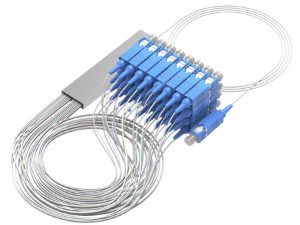

Répartiteur PLC SC/UPC 1*32 Mini Type Picture
Répartiteur PLC SC/UPC 1*32 Spécifications du type mini
Fiche technique du répartiteur PLC mini type 1*N | ||||||||
Longueur d'onde de fonctionnement (nm) | 1260nm-1650nm | |||||||
Type de fibre | G657A1 ou spécifié par le client | |||||||
Configuration des ports | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 | |
Perte d'insertion (dB) (Note P/S) | maximum | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21 | 23.8/24.2 |
Uniformité des pertes (dB) | maximum | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2 | 2.5 |
Perte dépendante de la polarisation (dB) | maximum | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.5 |
Perte de retour (dB) | min | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
Directivité (dB) | min | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
Perte dépendante de la longueur d'onde (dB) | maximum | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1 | 1.2 |
Stabilité de la température(-40~85 °C)(dB) | maximum | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1 | 1.2 |
Dimension (mm) (L×L×H) | 60×7×4 | 60×7×4 | 60×7×4 | 60×12×4 | 80×20×6 | 100×40×6 | N / A |
Fiche technique du répartiteur PLC mini type 2*N | ||||||||
Longueur d'onde de fonctionnement (nm) | 1260nm-1650nm | |||||||
Type de fibre | G657A1 ou spécifié par le client | |||||||
Configuration des ports | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | 2×128 | |
Perte d'insertion (dB) (Note P/S) | maximum | 4.2 | 7.6 | 10.8 | 14 | 17.5 | 21 | 24.5 |
Uniformité des pertes (dB) | maximum | 0.9 | 1.1 | 1.2 | 1.5 | 1.8 | 2.2 | 2.5 |
Perte dépendante de la polarisation (dB) | maximum | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.5 |
Perte de retour (dB) | min | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
Directivité (dB) | min | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
Perte dépendante de la longueur d'onde (dB) | maximum | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1 | 1.2 |
Stabilité de la température(-40~85 °C)(dB) | maximum | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1 | 1.2 |
Dimension (mm) (L×L×H) | 60×7×4 | 60×7×4 | 60×7×4 | 80×12×4 | 80×20×6 | 100×40×6 | N / A |
Répartiteur PLC SC/UPC 1*32 Caractéristiques du type mini
- Faible perte d'insertion
- Low PDL
- Perte de rendement élevée
- Répartition uniforme de la puissance
- Design compact
- Large longueur d'onde de fonctionnement
- Large température de fonctionnement
- Excellent Environmental & Mechanical Stability
- Qualified Under Telcordia GR-1221 and GR-1209
