תיאור
Cisco GLC-BX80-D-I Module is a 1000BASE-BX10 SFP module for single-strand SMF, delivering 1490-nm TX/1570-nm RX wavelength, and single LC/PC connector.
Cisco GLC-BX80-D-I Module Product Overview
Cisco GLC-BX80-D-I Module operates on a single strand of standard SMF. A GLC-BX80-D-I device is always connected to a GLC-BX80-U-I device with a single strand of standard SMF with an operating transmission range up to 80 ק"מ.
The communication over a single strand of fiber is achieved by separating the transmission wavelength of the two devices. The GLC-BX80-D-I and GLC-BX80-U-I SFPs also support Digital Optical Monitoring (DOM) functions according to the industry-standard SFF-8472 Multisource Agreement (MSA). This feature gives the end user the ability to monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

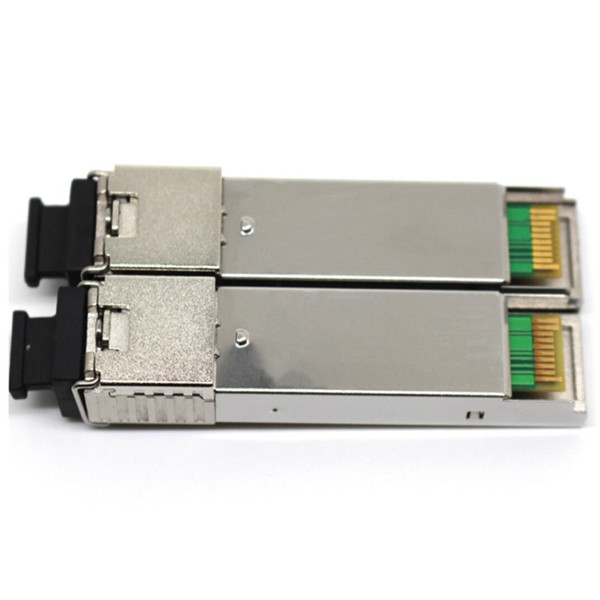

Cisco GLC-BX80-D-I Module Product Picture
Cisco GLC-BX80-D-I Module Product Specification
| מותג | סיסקו |
| Product number | GLC-BX80-D-I |
| סוג האריזה | SFP |
| קצב שידור | 1.25Gb/s, GE, 1000Base-T, OC24 |
| Emission wavelength | 1490נ"מ |
| Receive wavelength | 1310נ"מ |
| טמפרטורת פעולה | Commercial grade 0℃～+70℃/Industrial grade -40℃～+85℃ optional |
| Receiving sensitivity | BiDi-20KM |
| Receiving sensitivity | BiDi-20KM |
| סוג מחבר | דופלקס LC |
| specification | 2.1*7.9*12.2 |
Cisco GLC-BX80-D-I Module Product Feature
- Maximum transmission rate 1.25Gbps
- TX 1310nm FP laser/RX1550nm
- Or TX 1550 nm DFB laser/ RX 1310 נ"מ
Typical transmission distance of 20 קילומטרים (single mode fiber) - 3V single voltage, TTL logic interface
- Single SC/LC interface, support hot swap
- מעמד 1 laser
- Support digital diagnosis function
- Compliant with SFP MSA specification
- Comply with SFF-8472 specification
- Working environment temperature: 0℃ עד +70 ℃
Cisco GLC-BX80-D-I Module Product and More SFP Module
| מוצר | Transmit Power Range (dBm) | Receive Power Range (dBm) | Maximum Channel insertion loss in dB (by fiber type)* | Transmit and Receive Wavelength Range (נ"מ) |
| 1000BASE-LX/LH | -3 ל -9.5 | -3 ל -20 | 2.4 (any MMF) | 1270 ל 1355 |
| 6 (G.652 SMF) | ||||
| 1000BASE-EX | +3 ל -1 | +1 ל -22 | 18 (G.652 SMF) | 1290 ל 1335 |
| 1000BASE-ZX | +5 ל 0 | -3 ל -23 | 21 (any SMF) | 1500 ל 1580 |
| GLC-GE-DR-LX | -9.5 ל -3 | -25 ל -3 | 6 (G.652 SMF) | 1260 ל 1360 |
| 1000BASE-BX10-D | -3 ל -9 | -3 ל -19.5 | 5.5 (G.652 SMF) | 1480 ל 1500 (Transmit) |
| 1260 ל 1360 (Receive) | ||||
| 1000BASE-BX10-U | -3 ל -9 | -3 ל -19.5 | 6 (G.652 SMF) | 1260 ל 1360 (Transmit) |
| 1480 ל 1500 (Receive) | ||||
| GLC-BX40-D-I | -5 ל +3 | -25 ל +3 | 19 (G.652 SMF) | 1540 ל 1560 (Transmit) |
| 1260 ל 1360 (Receive) | ||||
| GLC-BX40-DA-I | -5 ל +3 | -25 ל +3 | 19 (G.652 SMF) | 1480 ל 1500 (Transmit) |
| 1260 ל 1360 (Receive) | ||||
| GLC-BX40-U-I | -5 ל +3 | -25 ל +3 | 19 (G.652 SMF) | 1260 ל 1360 (Transmit) |
| 1480 ל 1600 (Receive) | ||||
| GLC-BX80-D-I | -2 ל +3 | -27 ל +3 | 23 (G.652 SMF) | 1560 ל 1580 (Transmit) |
| 1470 ל 1510 (Receive) | ||||
| GLC-BX80-U-I | -2 ל +3 | -27 ל +3 | 23 (G.652 SMF) | 1480 ל 1500 (Transmit) |
| 1550 ל 1620 (Receive) |
Cisco GLC-BX80-D-I Module Product Application
