תיאור
GYFTA-26~30Xn Optic Cable is Loose tube stranded non-metallic reinforced core unarmored optical cable
GYFTA-26~30Xn Optic Cable Product Overview
The structure of optical cable consists of a 250µm optical fiber encased in a high-modulus material that forms a loose tube, which is filled with a waterproof compound. At the center of the cable core is a non-metallic strengthening core (FRP), which for certain core counts may require an additional layer of polyethylene (PE) extrusion outside the non-metallic strengthening core. The loose tube (and filling ropes) are twisted around the central strengthening core to form a compact and circular cable core, with the gaps inside the cable core filled with water-blocking filler.
The cable is finished with an aluminum tape (APL) longitudinally wrapped and then extruded with a polyethylene jacket. The optical cable is composed of several parts, including the cable core, reinforcing steel wires, filler materials, and the sheath. יתר על כך, depending on the requirements, there may be waterproof layers, buffering layers, and insulating metal conductors. The optical cable consists of three parts: the strengthening core, the cable core, and the outer sheath. The cable core structure can be either single-core or multi-core: single-core can be solid or tube-type; multi-core can be ribbon or unit type. The outer protective layer can be metal armored or non-armored.

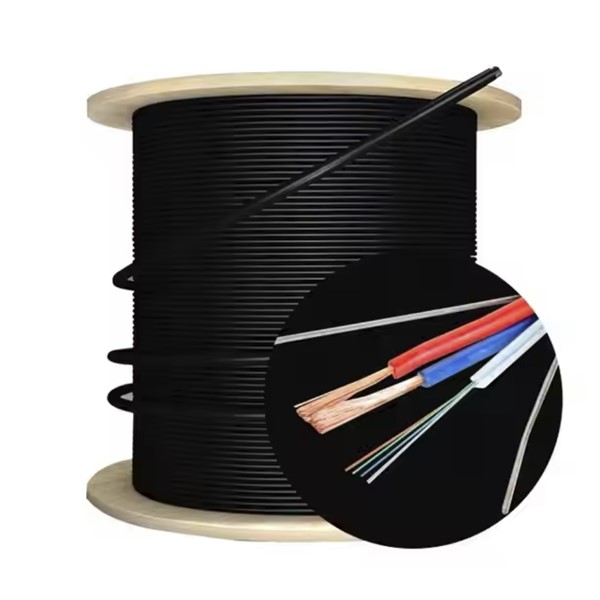

GYFTA-26~30Xn Optic Cable Product Pictures
GYFTA-26~30Xn Optic Cable Product Specifications
| Fiber optic cable model (in 2-fiber increments) |
Number of fibers | Number of casings | Number of infill ropes | Reference cable weight (kg/km） |
Tensile force allowed Long-term/short-term (נ) |
Allowable squashing force Long-term/short-term (N/100mm) |
לכופף רדיוס Static/Dynamic (מ"מ) |
|
| GYFTA-2~6Xn | 2~6 | 1 | 7 | 127 | 1000/3000 | 300/1000 | 10D/20D | |
| GYFTA-8~12Xn | 8~12 | 2 | 6 | 127 | ||||
| GYFTA-14~18Xn | 14~18 | 3 | 5 | 127 | ||||
| GYFTA-20~24Xn | 20~24 | 4 | 4 | 127 | ||||
| GYFTA-26~30Xn | 26~30 | 5 | 3 | 127 | ||||
| GYFTA-32~36Xn | 32~36 | 6 | 2 | 127 | ||||
| GYFTA-38~42Xn | 38~42 | 7 | 1 | 127 | ||||
| GYFTA-44~48Xn | 44~48 | 8 | 0 | 127 | ||||
| GYFTA-50~60Xn | 50~60 | 5 | 3 | 136 | ||||
| GYFTA-62~72Xn | 62~72 | 6 | 2 | 136 | ||||
| GYFTA-74~84Xn | 74~84 | 7 | 1 | 136 | ||||
| GYFTA-86~96Xn | 86~96 | 8 | 0 | 136 | ||||
| GYFTA-98~108Xn | 98~108 | 9 | 1 | 161 | ||||
| GYFTA-110~120Xn | 110~120 | 10 | 0 | 161 | ||||
| GYFTA-122~132Xn | 122~132 | 11 | 1 | 195 | ||||
| GYFTA-134~144Xn | 134~144 | 12 | 0 | 195 | ||||
| סוג סיבים | הנחתה | רוחב פס | צמצם מספרי | Fiber optic cable cut-off wavelength | ||||
| （+20℃） | ||||||||
| @850nm | @1300 nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260 ננומטר |
| G.655 | — | — | ≤0.40dB/km | ≤0.23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYFTA-26~30Xn Optic Cable Product Features
• Possesses excellent mechanical properties, temperature characteristics, and flame retardant performance.
• The loose tube material itself has good hydrolysis resistance and high strength.
• The tube is filled with a special oil paste, providing critical protection for the optical fibers.
• The specially designed compact cable structure effectively prevents tube shrinkage.• The PE sheath has excellent UV radiation resistance.
• The following measures are taken to ensure the waterproof performance of the cable:
– A single non-metallic central reinforcing core.
– The loose tube is filled with a special waterproof compound.
– Complete filling of the cable core.
– Coated aluminum tape (APL) moisture barrier.

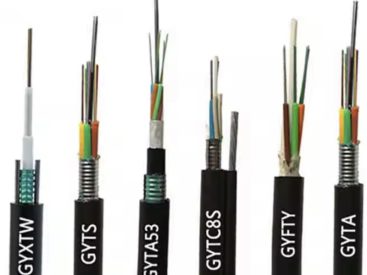

GYFTA-26~30Xn Optic Cable Product and More Optic Cables
Central tube non-armored optical cable (GYXY)
Central tube light armored optical cable (GYXS/GYXTW)
Loose tube layer stranded light armored fiber optic cable (GYDTS)
Loose tube layer stranded non-armored fiber optic cable (GYDTA)
Loose tube layer stranded non-metallic reinforced core non-armored flame-retardant optical cable (GYFTZY)
Loose tube layer stranded reinforced core armored flame-retardant optical cable (GYTZA53)
Loose tube layer stranded flame-retardant optical cable (GYTZS)
Loose tube layer stranded non-armored flame-retardant optical cable (GYTZA)
Loose tube layer stranded non-metallic reinforced core armored optical cable (GYFTA53)
Loose tube layer stranded non-metallic reinforced core ordinary armored optical cable (GYFTY53)
Loose tube layer stranded non-metallic reinforced core non-armored optical cable (GYFTA)
Loose tube layer stranded non-metallic reinforced core optical cable (GYHTY)
Loose tube layer stranded non-metallic reinforced core non-armored optical cable (GYFTY)
Loose tube layer stranded ordinary armored optical cable (GYTY53)
Loose tube layer stranded light armored optical cable (GYTS)
Loose tube layer stranded non-armored optical cable (GYTA)
GYFTA-26~30Xn Optic Cable Product Applications
- Long-distance communication: Used for long-distance data transmission between countries and internationally.
- Metropolitan area network: Connects different network nodes within a city.
- Local area network: Used for high-speed data transmission in local networks such as businesses, schools, and homes.
- Data center: Connects servers, storage devices, and network devices to achieve high-speed internal communication.
GYFTA-26~30Xn Optic Cable Product Structure
