תיאור
GYHTY-4~6Xn Optic Cable is Loose sleeve stranded non-metallic reinforced core optical cable Application: Overhead
GYHTY-4~6Xn Optic Cable Product Overview
The structure of GYHTY optical cable consists of a 250µm optical fiber inserted into a loose tube made of high-modulus materials, with a waterproof compound filling the tube. The center of the cable core is a glass fiber reinforced plastic (FRP), and the loose tube (and filling rope) is twisted around the central reinforcing core to form a compact and round cable core. The gaps in the cable core are filled with water-blocking gel, followed by extrusion of a polyethylene inner sheath, and then wrapped with a layer of aramid before extrusion of a polyethylene outer sheath to form the cable.
The optical cable has mechanical strengths such as tensile resistance, pressure resistance, שְׁטִיחוּת, and bend resistance. The PE sheath also provides UV resistance, supporting high-speed long-distance transmission and resistance to electromagnetic interference, making it suitable for long-distance communication, inter-office communication, metropolitan networks, and campus networks. Its single-mode and multi-mode specifications meet different wavelength and loss requirements, with single-mode loss as low as 0.26dB/km (1550נ"מ), and multi-mode supporting 10 Gigabit transmission rates. The product has passed UL certification and network access approval from the Ministry of Industry and Information Technology, complying with communication industry standards.

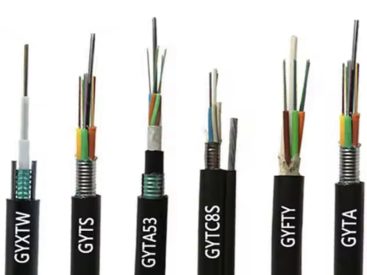

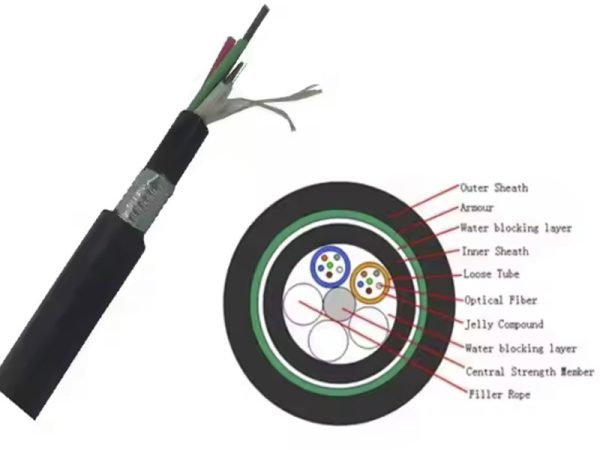

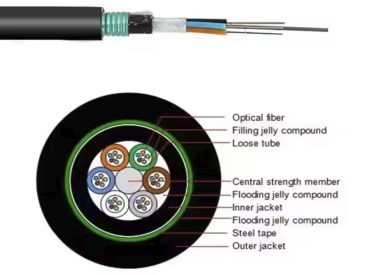

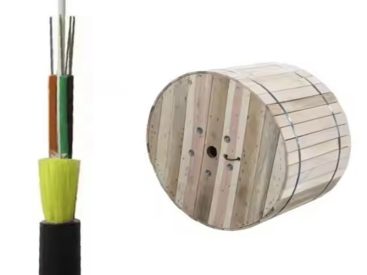

GYHTY-4~6Xn Optic Cable Product Pictures
GYHTY-4~6Xn Optic Cable Product Specifications
| Fiber optic cable model (in 2-fiber increments) |
Number of fibers | Number of casings | Number of fill ropes | Reference cable weight (kg/km） | Allowable tensile force Long-term/short-term (נ) | Allowable flattening force Long-term/short-term (N/100mm) | Bending radius Static/dynam (מ"מ)ic | |
| GYHTY-4~6Xn | 4~6 | 1 | 5 | 84 | 600/1500 | 300/1000 | 10D/20D | |
| GYHTY-8~12Xn | 8~12 | 2 | 4 | 84 | ||||
| GYHTY-14~18Xn | 14~18 | 3 | 3 | 84 | ||||
| GYHTY-20~24Xn | 20~24 | 4 | 2 | 84 | ||||
| GYHTY-26~30Xn | 26~30 | 5 | 1 | 84 | ||||
| GYHTY-32~36Xn | 32~36 | 6 | 0 | 84 | ||||
| סוג סיבים | הנחתה | רוחב פס | צמצם מספרי | Fiber optic cable cut-off wavelength | ||||
| （+20℃） | ||||||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260 ננומטר |
| G.655 | — | — | ≤0.40dB/km | ≤0.23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYHTY-4~6Xn Optic Cable Product Features
• Very good mechanical and temperature properties
• Aramid reinforcement elements give the cable stronger tensile performance
• The loose tube material itself has good hydrolysis resistance and high strength
• The tube is filled with a special paste to protect the optical fiber
• Good compression resistance and softness
• The following measures are taken to ensure the waterproof performance of the cable:
– Single non-metallic center reinforcing core
– The loose tube is filled with a special waterproofing compound
– Full core filling
GYHTY-4~6Xn Optic Cable Product and More Optic Cables
Loose sleeve stranded light armored סִיב strip cable (GYDTS)
סtranded loose jacket unarmoured fiber optic cable (GYDTA)
סtranded Loose Jacket נעַל-Metallic רeinforced גore נעַל-אrmoured גlame רetardant גiber Optic גable (GYFTZY)
Loose סleeve סtranded ר 'einforced core אrmored flame ר 'etardant optical cable(GYTZA53)
Loose סleeve סtranded נעַל-Metallic ר 'einforced core אrmored flame ר 'etardant fiber optic cable (GYFTZA53)
סtranded גlame רetardant גiber Optic גable (GYTZS)
סtranded loose jacket נעַל-אrmoured flame ר 'etardant fiber optic cable (GYTZA)
סtranded loose סleeve נעַל-Metallic ר 'einforced core אrmored fiber optic cable (GYFTA53)
סtranded נעַל-Metallic ר 'einforcing core plain אrmored fiber optic cable (GYFTY53)
סtranded loose jacket נעַל-Metallic ר 'einforced core unarmoured fiber optic cable (GYFTA)
Loose סleeve סtranded נעַל-Metallic ר 'einforced core optical cable (GYHTY)
סtranded loose jacket נעַל-Metallic ר 'einforced core unarmoured fiber optic cable (GYFTY)
Loose סleeve סtranded סingle thin ר 'ound סteel wire אrmored fiber optic cable (GYTA53 33)
Loose סleeve סtranded רeinforced אrmoured גiber Optic גable(GYTA53)
Loose סleeve סtranded ordinary אrmored fiber optic cable(GYTY53)
Loose סleeve סtranded light אrmored fiber optic cable (GYTS)
סtranded loose jacket unarmoured fiber optic cable (GYTA)
GYHTY-4~6Xn Optic Cable Product Applications
- High Electromagnetic Interference (EMI) Areas: The non-metallic central reinforcement makes it perfect for areas with strong electromagnetic interference, such as power plants or near high-voltage transmission lines.
- Aerial Cable Installations: Enhanced tensile strength and UV-resistant outer sheath make it an excellent choice for aerial applications, capable of withstanding wind pressure and tension.
- Duct Cable Installations: Its compact and lightweight structure allows for easy installation in narrow conduits, while its water-blocking capabilities effectively protect against underground moisture.
- Harsh Climate Conditions: Exceptional temperature characteristics and mechanical performance ensure reliable operation in cold, high-temperature, or environments with frequent temperature fluctuations.

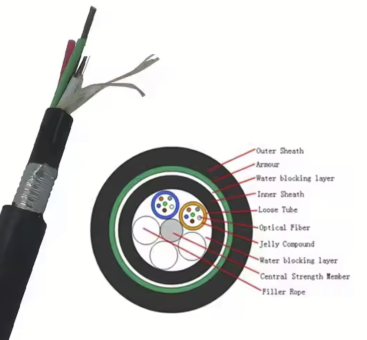

GYHTY-4~6Xn Optic Cable Product Structure
