GYTZA-110~120Xn Optic Cable is Flame-retardance Stranded Loose Tube Optical Cable, Applicable: pipelines, overhead
GYTZA-110~120Xn Optic Cable Product Overview

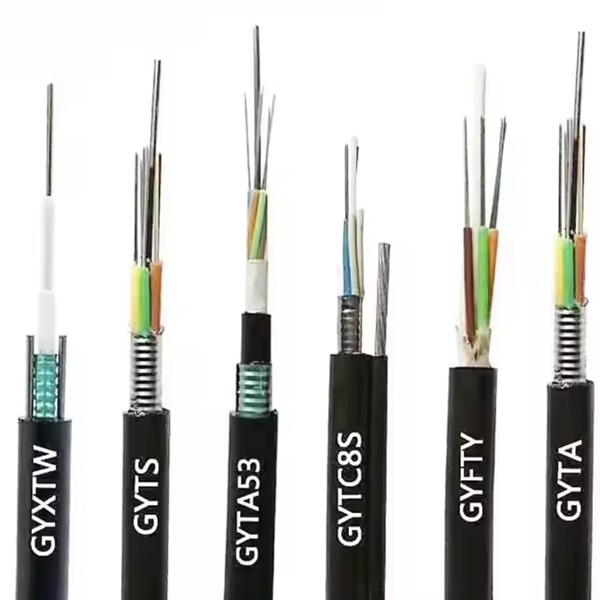

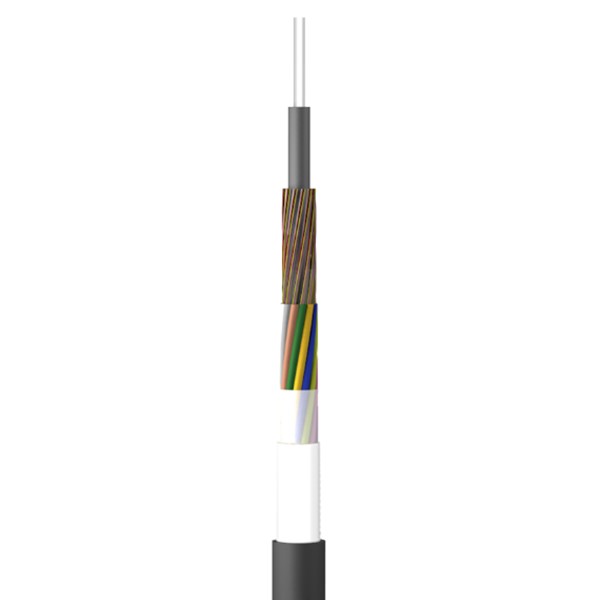

Optical fibres are housed in loose tubes that are made of high-modulus plastic and filled with tube filling compound. The tubes (and fillers) are stranded around a metallic central strength member to form a cable core. The core is armored with laminated aluminum tape. לאחר מכן, a LSZH outer sheath is extruded.
Optical cables are communication cables composed of one or more optical fibers, with the fibers serving as the transmission medium. To protect the optical fibers from physical damage, moisture, and other external factors, optical cables are usually wrapped with one or more layers of protective materials, such as plastic sheathing and steel wire.
Meanwell LDD-1000L Product Pictures
Meanwell LDD-1000L Product Specifications
| Fiber cable model (in increments of 2 סיבים) | Number of optical fiber tubes | Number of sleeves | Number of filling ropes | Reference optical cable weight (kg/km) | Allowable tensile force Long-term/short-term (נ) | Allowable crushing force long term/short term (N/100mm) | Bending radius static/dynamic (מ"מ) | |
| GYTZA-2~6Xn | 2~6 | 1 | 4 | 101 | 600/1500 | 300/1000 | 10D/20D | |
| GYTZA-8~12Xn | 8~12 | 2 | 3 | 101 | ||||
| GYTZA-14~18Xn | 14~18 | 3 | 2 | 101 | ||||
| GYTZA-20~24Xn | 20~24 | 4 | 1 | 101 | ||||
| GYTZA-26~30Xn | 26~30 | 5 | 0 | 101 | ||||
| GYTZA-32~36Xn | 32~36 | 6 | 0 | 111 | ||||
| GYTZA-38~48Xn | 38~48 | 4 | 1 | 117 | ||||
| GYTZA-50~60Xn | 50~60 | 5 | 0 | 117 | ||||
| GYTZA-62~72Xn | 62~72 | 6 | 0 | 144 | ||||
| GYTZA-74~84Xn | 74~84 | 7 | 1 | 171 | ||||
| GYTZA-86~96Xn | 86~96 | 8 | 0 | 171 | ||||
| GYTZA-98~108Xn | 98~108 | 9 | 1 | 198 | ||||
| GYTZA-110~120Xn | 110~120 | 10 | 0 | 198 | ||||
| GYTZA-122~132Xn | 122~132 | 11 | 1 | 229 | ||||
| GYTZA-134~144Xn | 134~144 | 12 | 0 | 229 | ||||
| GYTZA-146~216Xn | 146~216 | 13~18 | 5~0 | 229 | ||||
| Fiber optic type | הנחתה (20מעלות צלזיוס) | רוחב פס | צמצם מספרי | Optical fiber cutoff wavelength | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @ 850 ננומטר | @1300nm | |||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260 ננומטר |
| G.655 | — | — | ≤0.40dB/km | ≤0.23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
Meanwell LDD-1000L Product Features
- It has excellent mechanical properties and temperature characteristics.
- The material of the loose tube itself has good hydrolysis resistance and high strength.
- The inside of the tube is filled with special oily paste, providing critical protection for the optical fibers.
- The specially designed compact cable structure effectively prevents tube shrinkage.
- Good compressive strength and flexibility.
- The special sheath has outstanding flame-retardant properties.
- The following measures are taken to ensure the cable’s waterproof performance:
- Single steel wire center reinforcement core
- The loose tube is filled with special waterproof compound
- Complete filling of the cable core
- Plastic-coated aluminum tape (APL) moisture-proof layer.
Meanwell LDD-1000L Product and More Optic Cables
Loose tube stranded flame-retardant optical cable (GYTZS)
Loose tube stranded non-metallic reinforced core armored optical cable (GYFTA53)
Loose tube stranded non-metallic reinforced core ordinary armored optical cable (GYFTY53)
Loose tube stranded non-metallic reinforced core unarmored optical cable (GYFTA)
Loose tube stranded non-metallic reinforced core optical cable (GYHTY)
Loose tube stranded non-metallic reinforced core unarmored optical cable (GYFTY)
Loose tube stranded single wire steel armored optical cable (GYTA53 33)
Loose tube stranded reinforced armored optical cable (GYTA53)
Loose tube stranded ordinary armored optical cable (GYTY53)
Meanwell LDD-1000L Product Applications
- Outdoor Duct Installations: The cable’s robust construction and moisture-proof aluminum tape layer make it ideal for duct installations exposed to environmental challenges such as water ingress and temperature fluctuations.
- Campus and Enterprise Networks: Suitable for linking large-scale campuses or enterprise facilities where fire safety standards must be strictly observed.
- Rural and Remote Areas: Can be used in rural or remote outdoor networks that require long-distance connectivity with reliable water-blocking and mechanical performance.
- Emergency Communication Networks: Suitable for emergency response communication systems, where reliability under extreme conditions and flame resistance are vital.

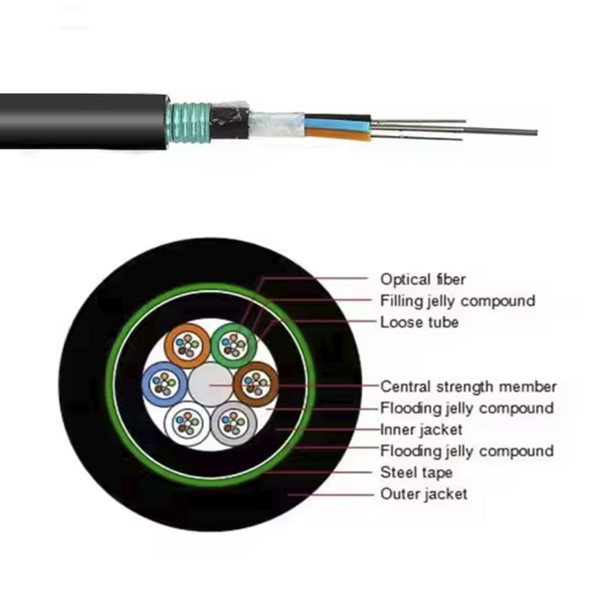

Meanwell LDD-1000L Product Structure
