विवरण
GYTZA-20~24Xn Optic Cable is Loose Tube Layer Stranded Non-armored Flame-retardant Optical Cable, Applicable: Pipeline, overhead
GYTZA-20~24Xn Optic Cable Product Overview
GYTZA optical cable is a robust and versatile solution designed to meet the demands of outdoor communication networks, particularly in environments requiring flame-retardant performance. This cable features colored optical fibers housed in a loose tube made of high-modulus material, providing exceptional mechanical strength and hydrolysis resistance. The loose tube is filled with thixotropic gel, ensuring optimal fiber protection and water-blocking capabilities.
At the core of the cable is a metal strength member, which enhances the cable’s tensile strength and structural stability. The loose tube and optional filling ropes are stranded around the central strength member, forming a compact, circular cable core. The interstices within the cable core are filled with water-blocking gel, providing a reliable barrier against moisture ingress.
A flame-retardant outer sheath, extruded over longitudinally wrapped coated aluminum tape, delivers superior fire resistance and environmental protection. This innovative design ensures the cable’s safety and durability in challenging conditions, including areas with stringent fire safety requirements.

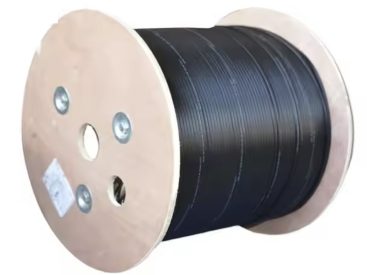

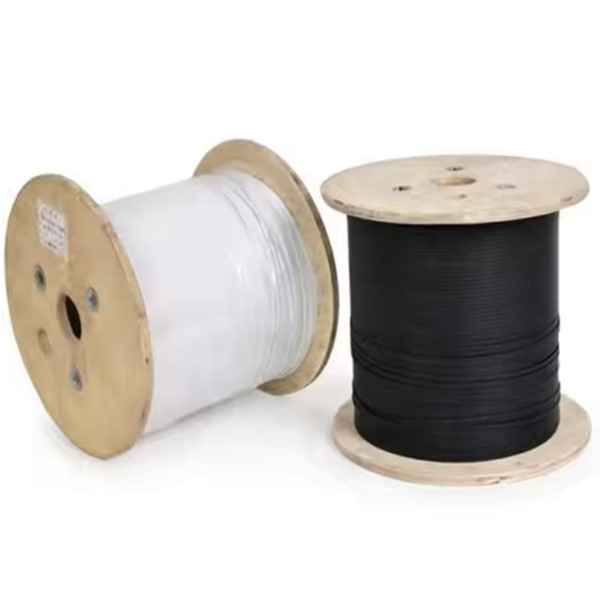

GYTZA-20~24Xn Optic Cable Product Pictures
GYTZA-20~24Xn Optic Cable Product Specifications
| Fiber cable model (in increments of 2 फाइबर) | Number of optical fiber tubes | Number of sleeves | Number of filling ropes | Reference optical cable weight (kg/km) | Allowable tensile force Long-term/short-term (एन) | Allowable crushing force long term/short term (N/100mm) | Bending radius static/dynamic (मिमी) | |
| GYTZA-2~6Xn | 2~6 | 1 | 4 | 101 | 600/1500 | 300/1000 | 10D/20D | |
| GYTZA-8~12Xn | 8~12 | 2 | 3 | 101 | ||||
| GYTZA-14~18Xn | 14~18 | 3 | 2 | 101 | ||||
| जीYTZA-20~24Xn | 20~24 | 4 | 1 | 101 | ||||
| GYTZA-26~30Xn | 26~30 | 5 | 0 | 101 | ||||
| GYTZA-32~36Xn | 32~36 | 6 | 0 | 111 | ||||
| GYTZA-38~48Xn | 38~48 | 4 | 1 | 117 | ||||
| GYTZA-50~60Xn | 50~60 | 5 | 0 | 117 | ||||
| GYTZA-62~72Xn | 62~72 | 6 | 0 | 144 | ||||
| GYTZA-74~84Xn | 74~84 | 7 | 1 | 171 | ||||
| GYTZA-86~96Xn | 86~96 | 8 | 0 | 171 | ||||
| GYTZA-98~108Xn | 98~108 | 9 | 1 | 198 | ||||
| GYTZA-110~120Xn | 110~120 | 10 | 0 | 198 | ||||
| GYTZA-122~132Xn | 122~132 | 11 | 1 | 229 | ||||
| GYTZA-134~144Xn | 134~144 | 12 | 0 | 229 | ||||
| GYTZA-146~216Xn | 146~216 | 13~18 | 5~0 | 229 | ||||
| Fiber optic type | क्षीणन (20डिग्री सेल्सियस) | बैंडविड्थ | Numerical aperture | Optical fiber cutoff wavelength | ||||
| @850एनएम | @1300एनएम | @1310एनएम | @1550 एनएम | @ 850nm | @1300एनएम | |||
| जी.652 | — | — | ≤0.36dB/किमी | ≤0.22dB/किमी | — | — | — | ≤1260 एनएम |
| जी.655 | — | — | ≤0.40dB/km | ≤0.23dB/किमी | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYTZA-20~24Xn Optic Cable Product Features
- Has excellent mechanical properties and temperature characteristics
- The loose tube material itself possesses good hydrolysis resistance and high strength
- The tube is filled with special oil paste, which provides critical protection to the optical fibers
- Specially designed compact cable structure effectively prevents tube shrinkage
- Good compressive strength and flexibility
- The special sheath has outstanding flame-retardant properties
- The following measures are taken to ensure the waterproof performance of the optical cable:
- Single steel wire central reinforcement core
- The loose tube is filled with special waterproof compounds
- Completely filled cable core
- Coated aluminum tape (APL) moisture-proof layer
GYTZA-20~24Xn Optic Cable Product and More Optic Cables
Central tube non-armored optical cable (GYXY)
Central tube light armored optical cable (GYXS/GYXTW)
Loose tube layer twisted light armored fiber ribbon optical cable (GYDTS)
Loose tube layer twisted non-armored fiber ribbon optical cable (GYDTA)
Loose tube layer twisted non-metallic reinforced core non-armored flame-retardant optical cable (GYFTZY)
Loose tube layer twisted reinforced core armored flame-retardant optical cable (GYTZA53)
Loose tube layer twisted non-metallic reinforced core armored flame-retardant optical cable (GYFTZA53)
Loose tube layer twisted flame-retardant optical cable (GYTZS)
Loose tube layer twisted non-armored flame-retardant optical cable (GYTZA)
Loose tube layer twisted non-metallic reinforced core armored optical cable (GYFTA53)
Loose tube layer twisted non-metallic reinforced core general armored optical cable (GYFTY53)
Loose tube layer twisted non-metallic reinforced core non-armored optical cable (GYFTA)
GYTZA-20~24Xn Optic Cable Product Applications
- Internet backbone: Composed of global Internet infrastructure, such as submarine cables connecting continents.
- Telecom networks: Used for 4G/5G base stations, fiber-to-the-home (एफटीटीएच), and metropolitan area network construction.
- Data centers: High-speed interconnection between servers, supporting cloud computing and big data processing.
- High-definition video transmission: Content transmission between television stations, ensuring live broadcast signal quality.
- Cable television networks: Replace coaxial cables, providing higher bandwidth and clarity.

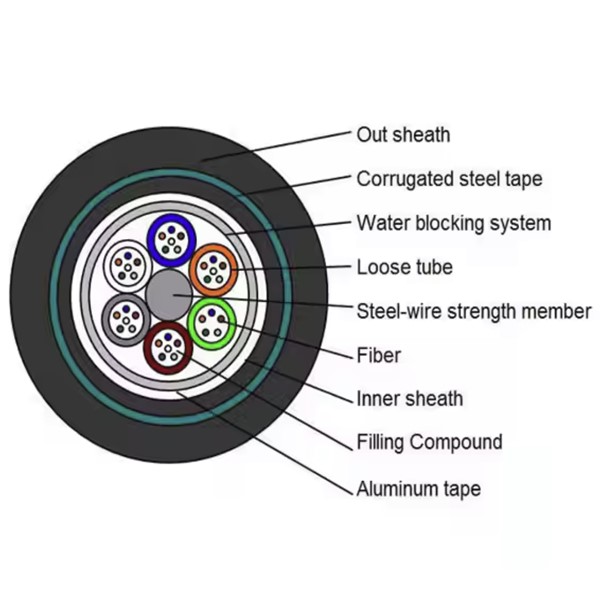

GYTZA-20~24Xn Optic Cable Product Structure
