विवरण
GYTZA-26~30Xn Optic Cable is Loose Tube Layer Stranded Non-armored Flame-retardant Optical Cable
GYTZA-26~30Xn Optic Cable Product Overview
GYTZA is a metal-reinforced component, loosely-tubed, filled with aluminum-low-smoke halogen-free bonding sheath outdoor optical fiber cable for communication. Its structure includes a 250µm optical fiber encased in a loosely-tubed sheath made of high-modulus material, and the loosely-tubed sheath is filled with waterproof compounds. The center of the cable core is a metal reinforcement core, and for certain fiber counts, an additional layer of polyethylene (पी.ई) is extruded over the metal reinforcement core. The loosely-tubed sheath (and filling yarn) is twisted around the central reinforcing core to form a compact and round cable core, with the gaps within the cable core filled with water-blocking fillers. अंत में, a flame-retardant sheath is extruded over the longitudinally wrapped aluminum tape (APL).

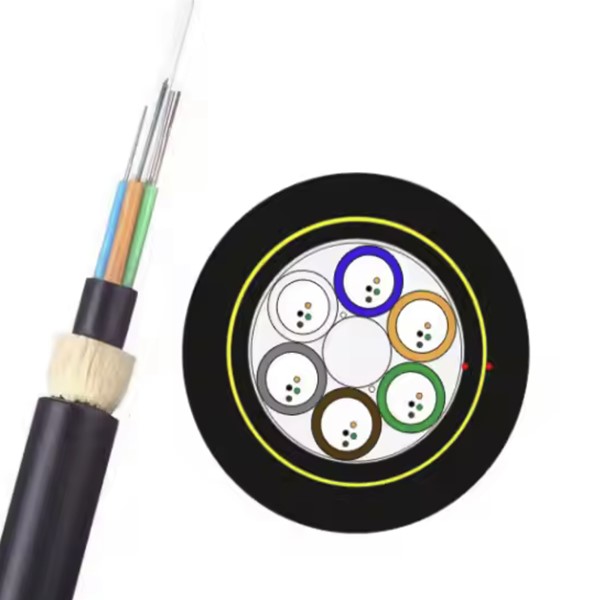

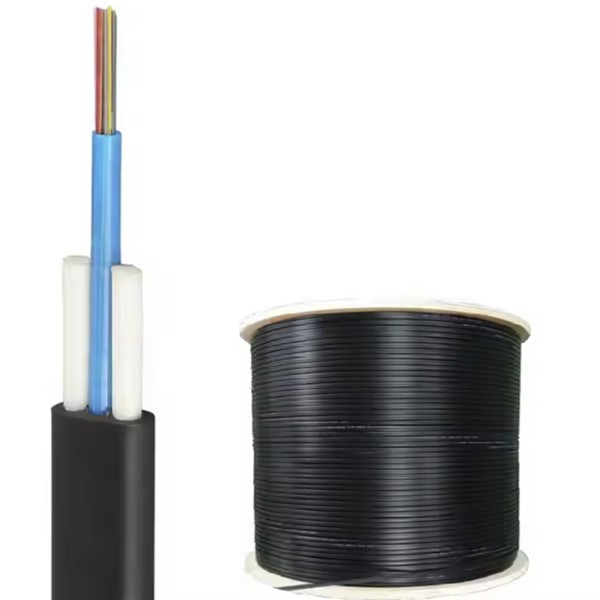

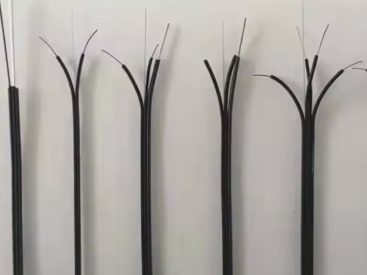

GYTZA-26~30Xn Optic Cable Product Pictures
GYTZA-26~30Xn Optic Cable Product Specifications
| Fiber cable model (in increments of 2 फाइबर) | Number of optical fiber tubes | Number of sleeves | Number of filling ropes | Reference optical cable weight (kg/km) | Allowable tensile force Long-term/short-term (एन) | Allowable crushing force long term/short term (N/100mm) | Bending radius static/dynamic (मिमी) | |
| GYTZA-2~6Xn | 2~6 | 1 | 4 | 101 | 600/1500 | 300/1000 | 10D/20D | |
| GYTZA-8~12Xn | 8~12 | 2 | 3 | 101 | ||||
| GYTZA-14~18Xn | 14~18 | 3 | 2 | 101 | ||||
| जीYTZA-20~24Xn | 20~24 | 4 | 1 | 101 | ||||
| GYTZA-26~30Xn | 26~30 | 5 | 0 | 101 | ||||
| GYTZA-32~36Xn | 32~36 | 6 | 0 | 111 | ||||
| GYTZA-38~48Xn | 38~48 | 4 | 1 | 117 | ||||
| GYTZA-50~60Xn | 50~60 | 5 | 0 | 117 | ||||
| GYTZA-62~72Xn | 62~72 | 6 | 0 | 144 | ||||
| GYTZA-74~84Xn | 74~84 | 7 | 1 | 171 | ||||
| GYTZA-86~96Xn | 86~96 | 8 | 0 | 171 | ||||
| GYTZA-98~108Xn | 98~108 | 9 | 1 | 198 | ||||
| GYTZA-110~120Xn | 110~120 | 10 | 0 | 198 | ||||
| GYTZA-122~132Xn | 122~132 | 11 | 1 | 229 | ||||
| GYTZA-134~144Xn | 134~144 | 12 | 0 | 229 | ||||
| GYTZA-146~216Xn | 146~216 | 13~18 | 5~0 | 229 | ||||
| Fiber optic type | क्षीणन (20डिग्री सेल्सियस) | बैंडविड्थ | Numerical aperture | Optical fiber cutoff wavelength | ||||
| @850एनएम | @1300एनएम | @1310एनएम | @1550 एनएम | @ 850nm | @1300एनएम | |||
| जी.652 | — | — | ≤0.36dB/किमी | ≤0.22dB/किमी | — | — | — | ≤1260 एनएम |
| जी.655 | — | — | ≤0.40dB/km | ≤0.23dB/किमी | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYTZA-26~30Xn Optic Cable Product Features
- Precise Process Control: Ensures exceptional mechanical stability and reliable performance across a wide range of temperatures, making the cable robust in diverse environments.
- Hydrolysis-Resistant Loose Tube Material: Manufactured using high-strength, hydrolysis-resistant material, providing long-lasting durability and optimal protection for the optical fibers.
- एलएसजेडएच (Low Smoke Zero Halogen) Sheath: The flame-retardant sheath ensures excellent fire safety performance, emitting minimal smoke and no harmful halogen gases during combustion, meeting stringent safety standards.
GYTZA-26~30Xn Optic Cable Product Applications
Loose-tube layer stranded unarmored optical cable (GYDTA)
Loose-tube layer stranded non-metallic reinforced core unarmored flame-retardant optical cable (GYFTZY)
Loose-tube layer stranded reinforced core armored flame-retardant optical cable (GYTZA53)
Loose-tube layer stranded non-metallic reinforced core armored flame-retardant optical cable (GYFTZA53)
Loose-tube layer stranded flame-retardant optical cable (GYTZS)
Loose-tube layer stranded unarmored flame-retardant optical cable (GYTZA)
Loose-tube layer stranded non-metallic reinforced core armored optical cable (GYFTA53)
Loose-tube layer stranded non-metallic reinforced core ordinary armored optical cable (GYFTY53)
Loose-tube layer stranded non-metallic reinforced core unarmored optical cable (GYFTA)
Loose-tube layer stranded non-metallic reinforced core optical cable (GYHTY)
Loose-tube layer stranded non-metallic reinforced core unarmored optical cable (GYFTY)
Loose-tube layer stranded single thin round steel wire armored optical cable (GYTA53 33)
GYTZA-26~30Xn Optic Cable Product Structure
