GYFTA53-44~48Xn Optic Cable is Loose tube layer twisted non-metallic reinforced core armored optical cable
GYFTA53-44~48Xn Optic Cable Product Overview

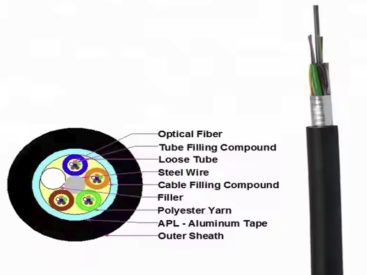

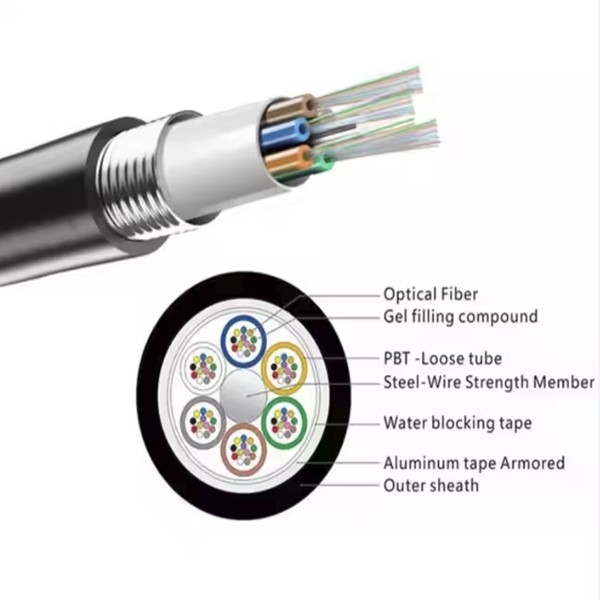

YFTA53 optical cable features a robust design that ensures optimal performance and protection of the internal fibers. The cable structure includes multiple components and layers, each with a specific purpose. The core of this optical cable contains a set of 250μm fibers placed within a loose tube made of high-modulus material. The loose tube is filled with a waterproof compound to prevent moisture ingress. To enhance strength and stability, a non-metallic reinforcing core (FRP) is placed at the center of the cable core. For multi-core cables, a layer of polyethylene (PE) is extruded over the non-metallic reinforcing core. This layer serves as insulation and provides additional protection. The loose tube is wrapped around the central reinforcing core together with any filling ropes to form a compact round cable core structure, ensuring the integrity of the components. To prevent water ingress, water-blocking fillers are used to fill any gaps in the cable core, helping to maintain long-term reliability of the fibers. The cable core is then longitudinally wrapped with aluminum tape (APL) and covered with an inner sheath made of polyethylene. To further enhance protection, a double-sided coated steel tape (Psp) is longitudinally wrapped around the inner sheath. Konačno, an extruded polyethylene outer sheath wraps the entire cable, protecting it from moisture, wear, and ultraviolet radiation. This integrated structure of the GYFTA53 optical cable ensures durability, waterproof damage resistance, mechanical strength, and protection against external factors. With these features, the cable can reliably transmit data through fibers, making it suitable for various telecommunications and networking applications.

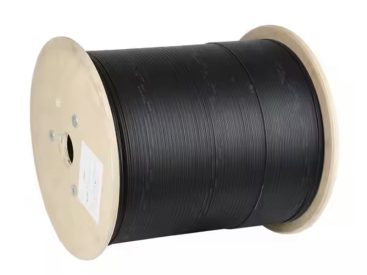

GYFTA53-44~48Xn Optic Cable Product Pictures
GYFTA53-44~48Xn Optic Cable Product Specifications
Fiber cable model (in increments of 2 vlakna) | Number of optical fiber tubes | Number of sleeves | Number of filling ropes | Reference optical cable weight (Kg/km) | Allowable tensile force Long-term/short-term (N) | Allowable crushing force long term/short term (N/100 mm) | Bending radius static/dynamic (mm) | |
GYFTA53-2~6Xn | 2~ 6 | 1 | 7 | 228 | 1000/3000 | 1000/3000 | 12.5D/25D | |
GYFTA53-8~12Xn | 8~ 12 | 2 | 6 | 228 | ||||
GYFTA53-14~18Xn | 14~ 18 | 3 | 5 | 228 | ||||
GYFTA53-20~24Xn | 20~ 24 | 4 | 4 | 228 | ||||
GYFTA53-26~30Xn | 26~ 30 | 5 | 3 | 228 | ||||
GYFTA53-32~36Xn | 32~ 36 | 6 | 2 | 228 | ||||
GYFTA53-38~42Xn | 38~ 42 | 7 | 1 | 228 | ||||
GYFTA53-44~48Xn | 44~ 48 | 8 | 0 | 228 | ||||
GYFTA53-50~60Xn | 50~ 60 | 5 | 3 | 240 | ||||
GYFTA53-62~72Xn | 62~ 72 | 6 | 2 | 240 | ||||
GYFTA53-74~84Xn | 74~ 84 | 7 | 1 | 240 | ||||
GYFTA53-86~96Xn | 86~ 96 | 8 | 0 | 240 | ||||
GYFTA53-98~108Xn | 98~ 108 | 9 | 1 | 276 | ||||
GYFTA53-110~120Xn | 110~ 120 | 10 | 0 | 276 | ||||
GYFTA53-122~132Xn | 122~ 132 | 11 | 1 | 326 | ||||
GYFTA53-134~144Xn | 134~ 144 | 12 | 0 | 326 | ||||
Fiber optic type | Prigušenje (+20 ℃) | Širina pojasa | Numerički otvor | Optical fiber cutoff wavelength | ||||
@850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
G.652 | - | - | ≤0,36db/km | ≤0,22db/km | - | - | - | ≤1260nm |
G.655 | - | - | ≤0,40db/km | ≤0,23db/km | - | - | - | ≤1450nm |
50/125µm | ≤3.3db/km | ≤1.2db/km | - | - | ≥500MHz · km | ≥500MHz · km | 0.200± 0,015 | - |
62.5/125µm | ≤3,5db/km | ≤1.2db/km | - | - | ≥200MHz · km | ≥500MHz · km | 0.275± 0,015 | - |
GYFTA53-44~48Xn Optic Cable Product Features
- Key Fiber Protection: The loose tube is filled with a specially formulated soft gel that provides crucial protection for the optical fibers. This gel acts as a barrier to prevent moisture and other external factors that could damage the fibers.
- Pressure Resistance and Flexibility: This cable is meticulously designed with excellent pressure resistance, capable of withstanding external pressure without compromising its performance. Dodatno, it is flexible, making it easier to handle and install.
- Waterproof Performance: To ensure reliable waterproof performance, this cable implements multiple measures. These include a single non-metallic central strengthening core, loose tube filled with special waterproof compounds, complete core filling, and the use of plastic-coated aluminum tape (APL) as a moisture barrier.
- Enhanced Moisture Resistance: The GYFTA53 cable is also equipped with double-sided plastic-coated steel tape (Psp), which significantly enhances its moisture resistance. This feature helps prevent longitudinal water ingress into the cable, thus improving its overall reliability.
- Effective Water Blocking Materials: The optical cable uses high-quality water-blocking materials to prevent water from penetrating along the length of the cable. This ensures that the optical fibers are protected and not affected by water-related issues.

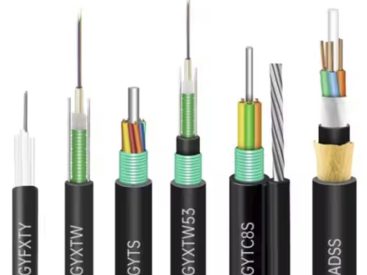

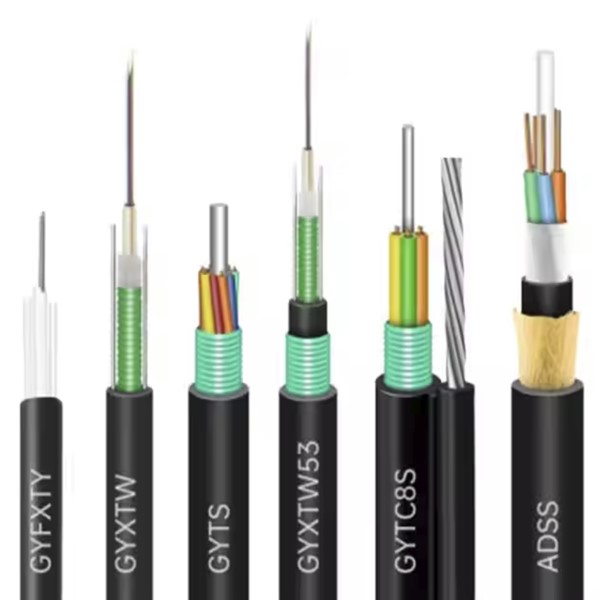

GYFTA53-44~48Xn Optic Cable Product and More Optic Cables
Central tube non-armored optical cable (GYXY)
Central tube light armored optical cable (GYXS/GYXTW)
Loose tube layer stranded light armored fiber optic cable (GYDTS)
Loose tube layer stranded non-armored fiber optic cable (Gyta)
Loose tube layer stranded non-metallic reinforced core non-armored flame-retardant optical cable (Gyftzy)
Loose tube layer stranded reinforced core armored flame-retardant optical cable (Gytza53)
Loose tube layer stranded non-metallic reinforced core armored flame-retardant optical cable (Gyftza53)
Loose tube layer stranded flame-retardant optical cable (Gytzs)
Loose tube layer stranded non-armored flame-retardant optical cable (Gytza)
Loose tube layer stranded non-metallic reinforced core armored optical cable (Cyfta53)
Loose tube layer stranded non-metallic reinforced core ordinary armored optical cable (Cyfty53)
Loose tube layer stranded non-metallic reinforced core non-armored optical cable (Sudbina)
Loose tube layer stranded non-metallic reinforced core optical cable (GYHTY)
Loose tube layer stranded non-metallic reinforced core non-armored optical cable (GYFTY)
Loose tube layer stranded single fine round steel wire armored optical cable (GYTA53 33)
Loose tube layer stranded reinforced armored optical cable (GYTA53)
GYFTA53-44~48Xn Optic Cable Product Applications
- Long-distance communication: Used for long-distance data transmission between countries and internationally.
- Metropolitan area network: Connects different network nodes within a city.
- Local area network: Used for high-speed data transmission in local networks such as businesses, škola, and homes.
- Data center: Connects servers, storage devices, and network devices to achieve high-speed internal communication.
GYFTA53-44~48Xn Optic Cable Product Structure
