Deskripsyon
GYFTA53-50~60Xn Optic Cable is Loose-tube stranded non-metallic reinforced core armored optical cable, Applicable: Overhead
GYFTA53-50~60Xn Optic Cable Product Overview
The structure of GYFTA53 optical cable consists of a 250µm optical fiber housed in a loose tube made of high modulus material, with a waterproof compound filling the inner tube. At the center of the cable core is a non-metallic strength member (FRP), and for some fiber counts, an additional layer of polyethylene (PE) is extruded around the non-metallic strength member. The loose tubes (and filler cords) are twisted around the central strength member to form a compact and round cable core, with the gaps inside the core filled with water-blocking filler. An aluminum tape (APL) is longitudinally wrapped and then extruded with a layer of polyethylene inner sheath, while a double-sided coated steel tape (PSP) is longitudinally wrapped and then extruded with a polyethylene outer sheath to form the cable. An optical fiber cable is a type of communication cable consisting of two or more glass or plastic optical fibers that are located within a protective coating and covered by an external plastic PVC sheath. Signal transmission along the internal optical fibers generally uses infrared.

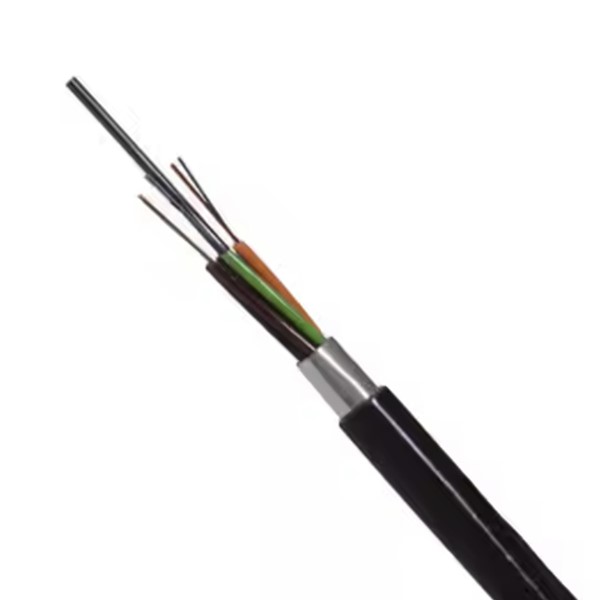

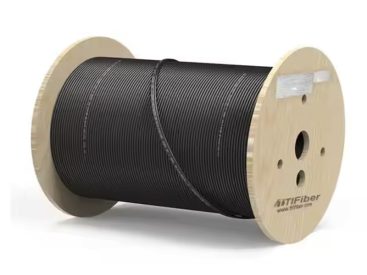

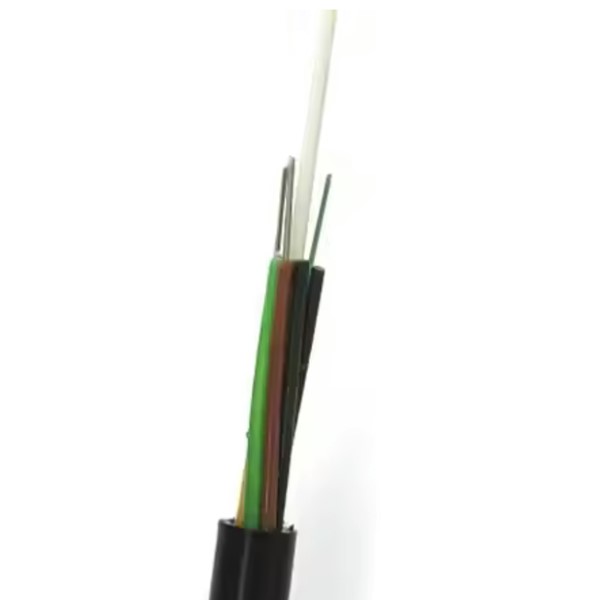

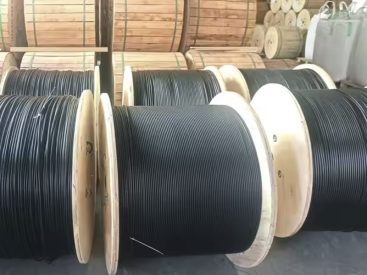

GYFTA53-50~60Xn Optic Cable Product Pictures
GYFTA53-50~60Xn Optic Cable Product Specifications
| Fiber cable model (in increments of 2 fib) | Number of optical fiber tubes | Number of sleeves | Number of filling ropes | Reference optical cable weight (kg/km) | Allowable tensile force Long-term/short-term (N) | Allowable crushing force long term/short term (N/100mm) | Bending radius static/dynamic (mm) | |
| GYFTA53-2~6Xn | 2~6 | 1 | 7 | 228 | 1000/3000 | 1000/3000 | 12.5D/25D | |
| GYFTA53-8~12Xn | 8~12 | 2 | 6 | 228 | ||||
| GYFTA53-14~18Xn | 14~18 | 3 | 5 | 228 | ||||
| GYFTA53-20~24Xn | 20~24 | 4 | 4 | 228 | ||||
| GYFTA53-26~30Xn | 26~30 | 5 | 3 | 228 | ||||
| GYFTA53-32~36Xn | 32~36 | 6 | 2 | 228 | ||||
| GYFTA53-38~42Xn | 38~42 | 7 | 1 | 228 | ||||
| GYFTA53-44~48Xn | 44~48 | 8 | 0 | 228 | ||||
| GYFTA53-50~60Xn | 50~60 | 5 | 3 | 240 | ||||
| GYFTA53-62~72Xn | 62~72 | 6 | 2 | 240 | ||||
| GYFTA53-74~84Xn | 74~84 | 7 | 1 | 240 | ||||
| GYFTA53-86~96Xn | 86~96 | 8 | 0 | 240 | ||||
| GYFTA53-98~108Xn | 98~108 | 9 | 1 | 276 | ||||
| GYFTA53-110~120Xn | 110~120 | 10 | 0 | 276 | ||||
| GYFTA53-122~132Xn | 122~132 | 11 | 1 | 326 | ||||
| GYFTA53-134~144Xn | 134~144 | 12 | 0 | 326 | ||||
| Fiber optic type | Attenuation （+20℃） | Bandwidth | Numerical aperture | Optical fiber cutoff wavelength | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0.40dB/km | ≤0.23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200± 0.015 NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275± 0.015 NA | — |
GYFTA53-50~60Xn Optic Cable Product Features
- It has good mechanical properties and temperature characteristics.
- The loose tube material has excellent hydrolysis resistance and high strength.
- Special oil paste fills the tube, providing critical protection for the optical fibers.
- It has good compressive strength and flexibility.
- Yo pran mezi sa yo pou asire pèfòmans ki enpèmeyab nan kab la:
- A single non-metallic central reinforcement core
- The loose tube is filled with special waterproof compounds
- Full filling of the cable core
- Coated aluminum tape (APL) moisture-proof layer
- Double-sided coated steel tape (PSP) to enhance the cable’s moisture resistance
- Good water-blocking materials to prevent longitudinal water penetration in the cable.
GYFTA53-50~60Xn Optic Cable Product and More Optic Cables
Loose tube stranded armored optical fiber cable (Gydts)
Loose tube stranded unarmored optical fiber cable (Gyta)
Loose tube stranded non-metallic reinforced core unarmored flame-retardant cable (GYFTZY)
Loose tube stranded reinforced core armored flame-retardant cable (GYTZA53)
Loose tube stranded non-metallic reinforced core armored flame-retardant cable (GYFTZA53)
Loose tube stranded flame-retardant cable (GYTZS)
Loose tube stranded unarmored flame-retardant cable (GYTZA)
Loose tube stranded non-metallic reinforced core optical cable (GYFTA53)
Loose tube stranded non-metallic reinforced core ordinary armored cable (GYFTY53)
Loose tube stranded non-metallic reinforced core unarmored cable (ANSANM)
Loose tube stranded non-metallic reinforced core optical cable (GYHTY)
Loose tube stranded non-metallic reinforced core unarmored cable (GYFTY)
Loose tube stranded single steel wire armored cable (GYTA53 33)
Loose tube stranded reinforced armored cable (GYTA53)
Loose tube stranded ordinary armored cable (GYTY53)
GYFTA53-50~60Xn Optic Cable Product Applications
- Long-distance communication: Used for long-distance data transmission between countries and internationally.
- Metropolitan area network: Connects different network nodes within a city.
- Local area network: Used for high-speed data transmission in local networks such as businesses, lekòl yo, and homes.
- Sant done: Connects servers, storage devices, and network devices to achieve high-speed internal communication.
GYFTA53-50~60Xn Optic Cable Product Structure
