Deskripsyon
GYTY53-146~216Xn Optic Cable is Loose sleeve layer stranded ordinary armored optical cable
GYTY53-146~216Xn Optic Cable Product Overview
GYTY53 Stranded Communication Optical Cable is a kind of optical cable with stable structure, segondè fyab, long transmission distance and good anti-interference performance, which is mainly suitable for overhead, pipeline and direct burial and other laying methods
The structure of the GYTY53 fiber optic cable is to insert a 250μm optical fiber into a loose tube made of high-modulus material, ak tib la ki lach plen ak yon konpoze ki enpèmeyab. Nan sant la nan nwayo a se yon metal ranfòse nwayo, and for some core cables, yon kouch PE (PE) is squeezed out of the metal reinforcing core. Tib la ki lach (ak filler kòd) yo trese alantou nwayo a ranfòse santral yo fòme yon nwayo kontra enfòmèl ant ak awondi, ak twou vid ki genyen yo nan nwayo a yo plen ak dlo-bloke ranpli. The cable core is extruded with a layer of polyethylene inner sheath, and the double-sided plastic-coated steel strip (PSP) is longitudinally wrapped and then extruded into a polyethylene sheath to form a cable.

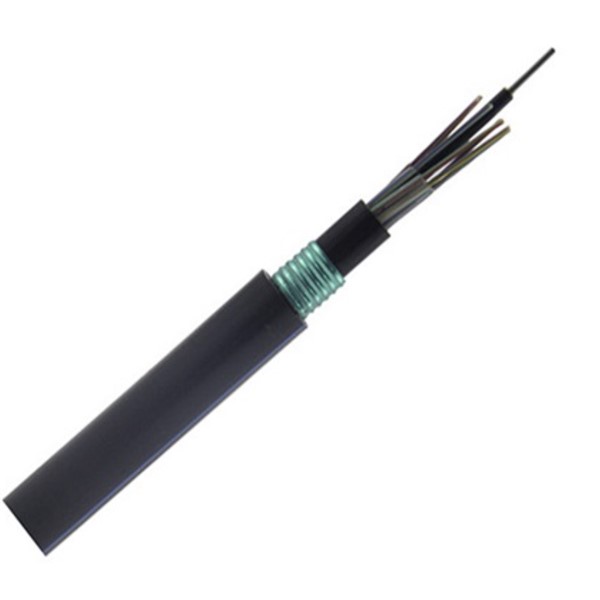

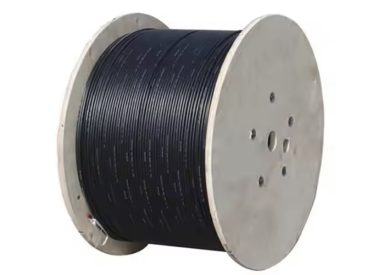

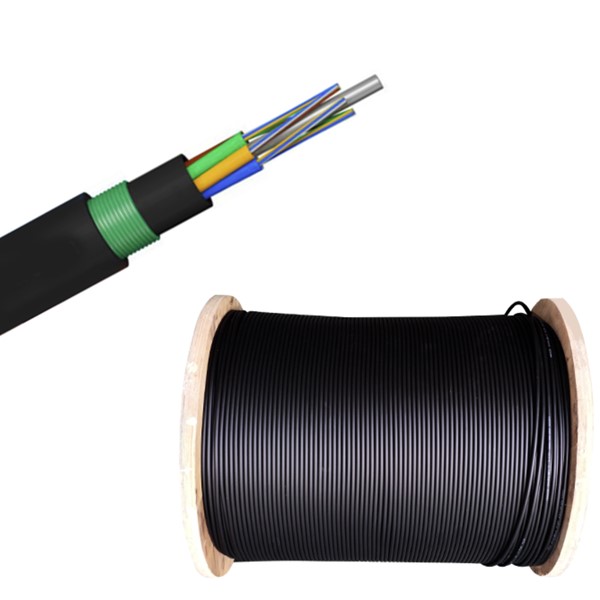

GYTY53-146~216Xn Optic Cable Product Pictures
GYTY53-146~216Xn Optic Cable Product Specifications
| Modèl fib optik kab (an ogmantasyon 2-fib) | Kantite fib | Kantite boîtier | Kantite kòd ranpli | Pwa kab referans (kg/km) |
Fòs rupture pèmèt Alontèm / kout tèm (N) |
Fòs squashing admisib Alontèm / kout tèm (N/100mm) |
Bend reyon Estatik/Dinamik (mm) |
|
| GYTY53-2~6Xn | 2~6 | 1 | 5 | 160 | 1000/3000 | 1000/3000 | 12.5D/25D | |
| GYTY53-8~12Xn | 8~12 | 2 | 4 | 160 | ||||
| GYTY53-14~18Xn | 14~18 | 3 | 3 | 160 | ||||
| GYTY53-20~24Xn | 20~24 | 4 | 2 | 160 | ||||
| GYTY53-26~30Xn | 26~30 | 5 | 1 | 160 | ||||
| GYTY53-32~36Xn | 32~36 | 6 | 0 | 160 | ||||
| GYTY53-38~48Xn | 38~48 | 4 | 1 | 174 | ||||
| GYTY53-50~60Xn | 50~60 | 5 | 0 | 174 | ||||
| GYTY53-62~72Xn | 62~72 | 6 | 0 | 185 | ||||
| GYTY53-74~84Xn | 74~84 | 7 | 1 | 214 | ||||
| GYTY53-86~96Xn | 86~96 | 8 | 0 | 214 | ||||
| GYTY53-98~108Xn | 98~108 | 9 | 1 | 245 | ||||
| GYTY53-110~120Xn | 110~120 | 10 | 0 | 245 | ||||
| GYTY53-122~132Xn | 122~132 | 11 | 1 | 281 | ||||
| GYTY53-134~144Xn | 134~144 | 12 | 0 | 281 | ||||
| GYTY53-146~216Xn | 146~216 | 13~18 | 5~0 | 281 | ||||
| Kalite fib | atténuation （+20℃） | Pleasant | Ouverture nimerik | Fibre optik kab koupe longèdonn | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0.40dB/km | ≤0.23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.0dB/km | ≤1.0dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200± 0.015 NA | — |
| 62.5/125µm | ≤3.3dB/km | ≤1.0dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275± 0.015 NA | — |
GYTY53-146~216Xn Optic Cable Product Features
- It has very good mechanical properties and temperature characteristics
- Materyèl tib ki lach tèt li gen bon rezistans idroliz ak gwo fòs
- The tube is filled with a special ointment to protect the optical fiber
- Bon rezistans konpresyon ak tendres
- The following measures are taken to ensure the waterproof performance of the fiber optic cable:
- Single wire center reinforcing core
- Tib ki lach la plen ak yon konpoze espesyal WATERPROOFING
- Plen nwayo ranpli
- Double-sided plastic-coated steel tape (PSP) improves the moisture permeability of fiber optic cables
- Good water-blocking material prevents longitudinal water seepage of the fiber optic cable

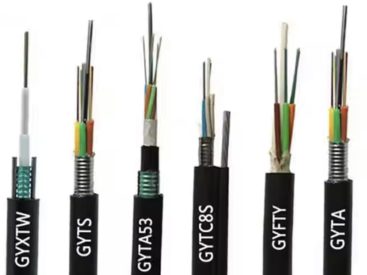

GYTY53-146~216Xn Optic Cable and More Optic Cables
- Santral tib limyè blende fib optik kab (GYXS/GYXTW)
- Manch ki lach bloke limyè fib blende kab (Gydts)
- Bloke levit ki lach unarmoured fib optik kab (Gyta)
- Stranded Loose Jacket Non-Metallic Reinforced Core Non-Armoured Flame Retardant Fiber Optic Cable (GYFTZY)
- Loose sleeve stranded reinforced core armored flame retardant optical cable(GYTZA53)
- Loose sleeve stranded non-metallic reinforced core armored flame retardant fiber optic cable (GYFTZA53)
- Stranded Flame Retardant Fiber Optic Cable (GYTZS)
- Stranded loose jacket non-armoured flame retardant fiber optic cable (GYTZA)
- Stranded loose sleeve non-metallic reinforced core armored fiber optic cable (GYFTA53)
- Stranded non-metallic reinforcing core plain armored fiber optic cable (GYFTY53)
- Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (ANSANM)
- Loose sleeve stranded non-metallic reinforced core optical cable (GYHTY)
- Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (GYFTY)
- Loose sleeve stranded single thin round steel wire armored fiber optic cable (GYTA53+33)
- Loose Sleeve Stranded Reinforced Armoured Fiber Optic Cable(GYTA53)
- Loose sleeve stranded ordinary armored fiber optic cable(GYTY53)
- Loose sleeve stranded light armored fiber optic cable (GYTS)
- Bloke levit ki lach unarmoured fib optik kab (GYTA)
GYTY53-146~216Xn Optic Cable Product Applications
Aplikasyon: tiyo, pi lwen, dirèk antèman
GYTY53-146~216Xn Optic Cable Product Structure
