Deskripsyon
GYTZS-86~96Xn Optic Cable is Stranded Loose Tube Flame-retardant Cable
GYTZS-86~96Xn Optic Cable Product Overview
The structure of the optical cable consists of 250µm optical fibers encased in a loose tube made of high-modulus materials, with waterproof compounds filling the inside of the tube. At the center of the cable core is a metal strengthening core, and for certain fiber counts, an additional layer of polyethylene (PE) must be extruded around the metal strengthening core. The loose tube and filling rope are twisted around the central strengthening core to form a compact and circular cable core, with gaps inside filled with water-blocking filler. A double-sided coated steel belt (PSP) is longitudinally wrapped and then extruded into a flame-retardant sheath to form the cable.
Optical cables are communication lines used for long-distance, high-speed data transmission, with their core components made of high-purity glass or plastic optical fibers. Optical cables utilize the principle of total internal reflection to convert electrical signals into optical signals, which are transmitted through the optical fibers and then converted back into electrical signals at the receiving end, thereby achieving high-speed transmission of information.

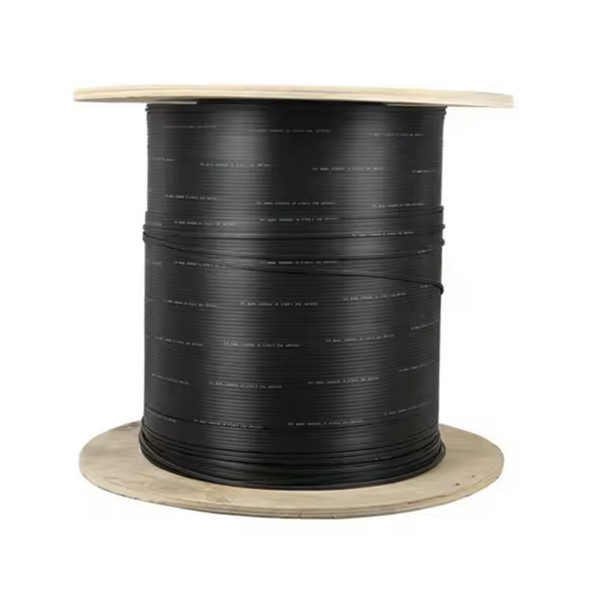

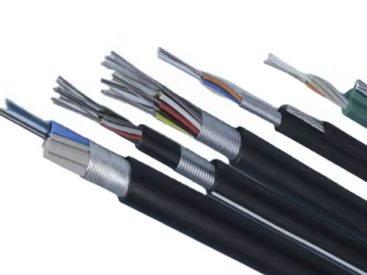

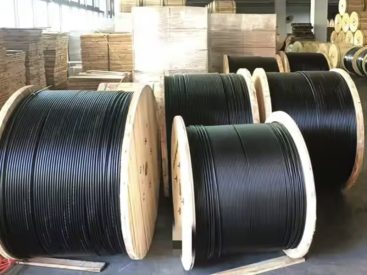

GYTZS-86~96Xn Optic Cable Product Pictures
GYTZS-86~96Xn Optic Cable Product Specifications
| Modèl fib optik kab (an ogmantasyon 2-fib) | Kantite fib | Kantite boîtier | Kantite kòd ranplisaj | Pwa kab referans (kg/km) | Fòs rupture pèmèt Alontèm / kout tèm (N) |
Fòs squashing admisib Alontèm / kout tèm (N/100mm) |
Bend reyon Estatik/Dinamik (mm) |
|
| GYTZS-2~6Xn | 2~6 | 1 | 4 | 118 | 600/1500 | 300/1000 | 10D/20D | |
| GYTZS-8~12Xn | 8~12 | 2 | 3 | 118 | ||||
| GYTZS-14~18Xn | 14~18 | 3 | 2 | 118 | ||||
| GYTZS-20~24Xn | 20~24 | 4 | 1 | 118 | ||||
| GYTZS-26~30Xn | 26~30 | 5 | 0 | 118 | ||||
| GYTZS-32~36Xn | 32~36 | 6 | 0 | 131 | ||||
| GYTZS-38~48Xn | 38~48 | 4 | 1 | 139 | ||||
| GYTZS-50~60Xn | 50~60 | 5 | 0 | 139 | ||||
| GYTZS-62~72Xn | 62~72 | 6 | 0 | 170 | ||||
| GYTZS-74~84Xn | 74~84 | 7 | 1 | 200 | ||||
| GYTZS-86~96Xn | 86~96 | 8 | 0 | 200 | ||||
| GYTZS-98~108Xn | 98~108 | 9 | 1 | 230 | ||||
| GYTZS-110~120Xn | 110~120 | 10 | 0 | 230 | ||||
| GYTZS-122~132Xn | 122~132 | 11 | 1 | 268 | ||||
| GYTZS-134~144Xn | 134~144 | 12 | 0 | 268 | ||||
| GYTZS-146~216Xn | 146~216 | 13~18 | 5~0 | 268 | ||||
| GYTZS-288Xn | 288 | 24 | 0 | 360 | ||||
| Kalite fib | Atténuation | Bandwidth | Ouverture nimerik | Fibre optik kab koupe longèdonn | ||||
| （+20℃） | ||||||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0.40dB/km | ≤0.23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200± 0.015 NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275± 0.015 NA | — |
GYTZS-86~96Xn Optic Cable Product Features
- Has good mechanical properties and temperature characteristics
- The loose tube material itself has good resistance to hydrolysis and high strength
- The tube is filled with special oil paste, providing crucial protection for the optical fibers
- Specially designed compact cable structure effectively prevents tube shrinkage
- Good compressive strength and flexibility
- Special sheath has excellent flame-retardant properties
- Yo pran mezi sa yo pou asire pèfòmans ki enpèmeyab nan kab la
- Single steel wire center reinforced core
- Filling the loose tube with a special waterproof compound
- Fully filling the cable core
- Double-sided plastic
- Coated steel tape (PSP) improves the cable’s moisture resistance performance

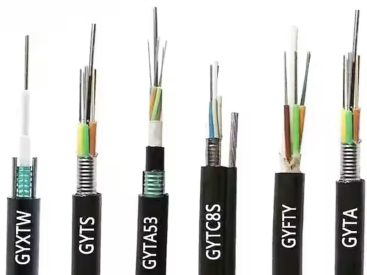

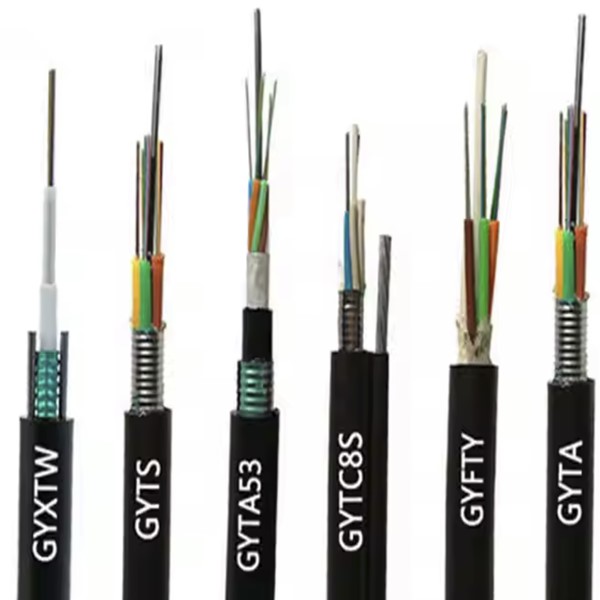

GYTZS-86~96Xn Optic Cable Product and More Optic Cables
Center Tube Light Armored Optical Cable (GYXS/GYXTW)
Loose Tube Layer Stranded Light Armored Optical Fiber Cable (Gydts)
Loose Tube Layer Stranded Unarmored Optical Fiber Cable (Gyta)
Loose Tube Layer Stranded Non-Metallic Reinforced Core Unarmored Flame Retardant Optical Cable (GYFTZY)
Loose Tube Layer Stranded Reinforced Core Armored Flame Retardant Optical Cable (GYTZA53)
Loose Tube Layer Stranded Non-Metallic Reinforced Core Armored Flame Retardant Optical Cable (GYFTZA53)
Loose Tube Layer Stranded Flame Retardant Optical Cable (GYTZS)
Loose Tube Layer Stranded Unarmored Flame Retardant Optical Cable (GYTZA)
Loose Tube Layer Stranded Non-Metallic Reinforced Core Optical Cable (GYFTA53)
Loose Tube Layer Stranded Non-Metallic Reinforced Core General Armored Optical Cable (GYFTY53)
Loose Tube Layer Stranded Non-Metallic Reinforced Core Unarmored Optical Cable (ANSANM)
Loose Tube Layer Stranded Non-Metallic Reinforced Core Optical Cable (GYHTY)
Loose Tube Layer Stranded Non-Metallic Reinforced Core Unarmored Optical Cable (GYFTY)
Loose Tube Layer Stranded Single Wire Steel Armored Optical Cable (GYTA53 33)
GYTZS-86~96Xn Optic Cable Product Applications
- Long-distance communication: Used for long-distance data transmission between countries and internationally.
- Metropolitan area network: Connects different network nodes within a city.
- Local area network: Used for high-speed data transmission in local networks such as businesses, lekòl yo, and homes.
- Sant done: Connects servers, storage devices, and network devices to achieve high-speed internal communication.

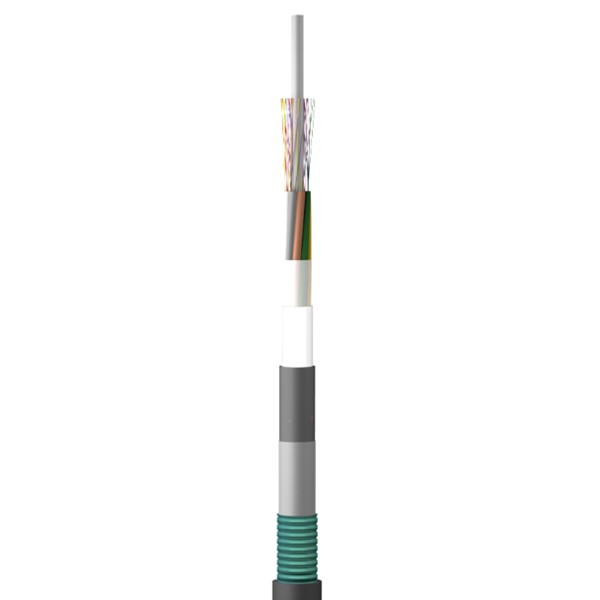

GYTZS-86~96Xn Optic Cable Product Structure
