GYFTZA53-98~108Xn Optic Cable is Loose sleeve stranded non–metallic reinforced mag armored flame retardant optikai cable
GYFTZA53-98~108Xn Optic Cable Product Overview
GYFTZA53 fiber optic cables are constructed by inserting a 250μm optical fiber into a loose tube made of high-modulus material filled with a waterproof compound. In the center of the core is a non-metallic reinforcing core (FRP), and for some core counts, a layer of polyethylene (PE) is squeezed on top of the non-metallic reinforcing core. The loose tube and infill rope are twisted around the central reinforcing core to form a compact and round core, és a magon belüli réseket vízzáró töltelékkel töltjük ki. The plastic-coated aluminum strip (APL) is squeezed with a layer of polyethylene inner sheath after longitudinal wrapping, and the flame-retardant outer sheath is extruded after the double-sided plastic-coated steel strip (PSP) is longitudinally wrapped into a cable.
This construction makes GYFTZA53 cable an excellent choice for applications requiring flame resistance, moisture protection, and high mechanical performance in demanding outdoor settings.

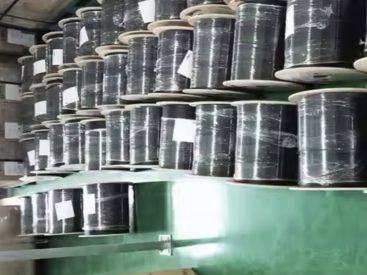

GYFTZA53-98~108Xn Optic Cable Product Pictures
GYFTZA53-98~108Xn Optic Cable Product Specifications
| Fiber optic cable model (in 2-fiber increments) |
Number of fibers | Number of casings | Number of infill ropes | Reference cable weight （kg/km） | Tensile force is allowed Long-term/short-term (N) |
Allowable squashing force Long-term/short-term (N/100mm) |
Hajlítási sugár Static/Dynamic (mm) |
|
| GYFTZA53-2~6Xn | 2~6 | 1 | 7 | 275 | 1000/3000 | 1000/3000 | 12.5D/25D | |
| GYFTZA53-8~12Xn | 8~12 | 2 | 6 | 275 | ||||
| GYFTZA53-14~18Xn | 14~18 | 3 | 5 | 275 | ||||
| GYFTZA53-20~24Xn | 20~24 | 4 | 4 | 275 | ||||
| GYFTZA53-26~30Xn | 26~30 | 5 | 3 | 275 | ||||
| GYFTZA53-32~36Xn | 32~36 | 6 | 2 | 275 | ||||
| GYFTZA53-38~42Xn | 38~42 | 7 | 1 | 275 | ||||
| GYFTZA53-44~48Xn | 44~48 | 8 | 0 | 275 | ||||
| GYFTZA53-50~60Xn | 50~60 | 5 | 3 | 290 | ||||
| GYFTZA53-62~72Xn | 62~72 | 6 | 2 | 290 | ||||
| GYFTZA53-74~84Xn | 74~84 | 7 | 1 | 290 | ||||
| GYFTZA53-86~96Xn | 86~96 | 8 | 0 | 290 | ||||
| GYFTZA53-98~108Xn | 98~108 | 9 | 1 | 327 | ||||
| GYFTZA53-110~120Xn | 110~120 | 10 | 0 | 327 | ||||
| GYFTZA53-122~132Xn | 122~132 | 11 | 1 | 384 | ||||
| GYFTZA53-134~144Xn | 134~144 | 12 | 0 | 384 | ||||
| Száltípus | Attenuation （+20℃） | Sávszélesség | Numerical aperture | Fiber optic cable cut-off wavelength | ||||
| @ 850 nm | @1300nm | @ 1310 nm | @ 1550 nm | @ 850 nm | @1300nm | |||
| G.652 | — | — | ≤0,36 dB/km | ≤0,22 dB/km | — | — | — | ≤1260 nm |
| G.655 | — | — | ≤0.40dB/km | ≤0,23 dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYFTZA53-98~108Xn Optic Cable Product Features
• Very good mechanical properties, temperature characteristics and flame retardant properties
• The loose tube material itself has good hydrolysis resistance and high strength
• The tube is filled with a special paste to protect the optical fiber
• Good compression resistance and softness
• The following measures are taken to ensure the waterproof performance of the cable:
– Single non-metallic center reinforcing core
– The loose tube is filled with a special waterproofing compound
– Full core filling
– Plastic-coated aluminium tape (APL) moisture barrier
– Double-sided plastic-coated steel tape (PSP) improves the moisture permeability of fiber optic cables
– Good water-blocking material prevents longitudinal water seepage of the fiber optic cable
GYFTZA53-98~108Xn Optic Cable Product And More Optic Cables
Loose sleeve stranded reinforced mag armored flame retardant optikai cable(GYTZA53)
Loose sleeve stranded ntovább-metallic reinforced core armored flame retardant fiber optic cable (GYFTZA53)
Stranded Flame Retardant Fiber Optic Cable (GYTZS)
Stranded loose jacket ntovább-armoured flame retardant fiber optic cable (GYTZA)
Stranded loose sleeve ntovább-metallic reinforced core armored fiber optic cable (GYFTA53)
Stranded ntovább-metallic reinforcing core plain armored fiber optic cable (GYFTY53)
Stranded loose jacket ntovább-metallic reinforced core unarmoured fiber optic cable (GYFTA)
Loose sleeve stranded ntovább-metallic reinforced core optical cable (GYHTY)
Stranded loose jacket ntovább-metallic reinforced core unarmoured fiber optic cable (GYFTY)
Loose sleeve stranded single thin round steel wire armored fiber optic cable (GYTA53 33)
Loose Sleeve Stranded Reinforced Armoured Fiber Optic Cable(GYTA53)
Loose sleeve stranded ordinary armored fiber optic cable(GYTY53)
GYFTZA53-98~108Xn Optic Cable Product Applications
- Industrial Zones: Perfect for deployment in factories, refineries, and other industrial settings where potential fire hazards and mechanical stresses are common.
- Tunnel and Subway Systems: Designed for use in tunnels, subways, and confined spaces, ensuring flame retardancy and reliable communication in challenging conditions.
- Aerial Deployments: Lightweight and strong, making it ideal for aerial installations where the non-metallic core prevents electromagnetic interference.
- Critical Infrastructure Projects: Essential for smart city projects, transportation hubs, and emergency communication networks, where safety, megbízhatóság, and high performance are prioritized.
GYFTZA53-98~108Xn Optic Cable Product Structure
Sajnálom, nem elérhető melléklet !
