GYTZA53-122~132Xn Optic Cable is Loose sleeve layer stranded reinforced mag armored flame retardant optikai cable
GYTZA53-122~132Xn Optic Cable Product Overview
GYTZA53 fiber optic cable van a loose layer stranded reinforced mag armored flame retardant optikai cable. ént éns constructed by énnserting the optical fiber énnto a loose tube of high-modulus material, which éns also filled with a waterproof compound. There éns a metal reinforcing core énn the center of the cable core, and the metal reinforcing core éns also extruded with a layer of polyethylene. The loose tube and the filler rope are twisted around the central reinforcing core to form a compact circular core, and the gap between the core éns also filled with water-blocking filler. After the plastic-coated aluminum tape éns longitudinally wrapped, the polyethylene énnner sheath is extruded, and the flame-retardant outer sheath éns extruded after the double-sided plastic-coated steel tape éns longitudinally wrapped, and ént becomes a GYTZA53 optical cable. This fiber optic cable van particularly good mechanical properties, hőfok characteristics és flame retardant properties, és also van good compression resistance és rugalmasság
GYTZA53-122~132Xn Optic Cable Product Pictures
GYTZA53-122~132Xn Optic Cable Product Specifications
| Fiber optic cable model (in 2-fiber increments) |
Number of fibers | Number of casings | Number of infill ropes | Reference cable weight (kg/km) | Tensile force is allowed Long-term/short-term (N) |
Allowable squashing force Long-term/short-term (N/100mm) |
Hajlítási sugár Static/Dynamic (mm) |
|
| GYTZA53-2~6Xn | 2~6 | 1 | 5 | 217 | 1000/3000 | 1000/3000 | 12.5D/25D | |
| GYTZA53-8~12Xn | 8~12 | 2 | 4 | 217 | ||||
| GYTZA53-14~18Xn | 14~18 | 3 | 3 | 217 | ||||
| GYTZA53-20~24Xn | 20~24 | 4 | 2 | 217 | ||||
| GYTZA53-26~30Xn | 26~30 | 5 | 1 | 217 | ||||
| GYTZA53-32~36Xn | 32~36 | 6 | 0 | 217 | ||||
| GYTZA53-38~48Xn | 38~48 | 4 | 1 | 235 | ||||
| GYTZA53-50~60Xn | 50~60 | 5 | 0 | 235 | ||||
| GYTZA53-62~72Xn | 62~72 | 6 | 0 | 250 | ||||
| GYTZA53-74~84Xn | 74~84 | 7 | 1 | 286 | ||||
| GYTZA53-86~96Xn | 86~96 | 8 | 0 | 286 | ||||
| GYTZA53-98~108Xn | 98~108 | 9 | 1 | 330 | ||||
| GYTZA53-110~120Xn | 110~120 | 10 | 0 | 330 | ||||
| GYTZA53-122~132Xn | 122~132 | 11 | 1 | 366 | ||||
| GYTZA53-134~144Xn | 134~144 | 12 | 0 | 366 | ||||
| GYTZA53-146~216Xn | 146~216 | 13~18 | 5~0 | 366 | ||||
| Száltípus | Attenuation （+20℃） | Sávszélesség | Numerical aperture | Fiber optic cable cut-off wavelength | ||||
| @ 850 nm | @1300nm | @ 1310 nm | @ 1550 nm | @ 850 nm | @1300nm | |||
| G.652 | — | — | ≤0,36 dB/km | ≤0,22 dB/km | — | — | — | ≤1260 nm |
| G.655 | — | — | ≤0.40dB/km | ≤0,23 dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYTZA53-122~132Xn Optic Cable Product Features
• Very good mechanical properties, hőfok characteristics és flame retardant properties
• The loose tube material éntself has good hydrolysis resistance and high strength
• The tube éns filled with a special paste to protect the optical fiber
• Good compression resistance and softness
• The following measures are taken to ensure the waterproof performance of the cable:
– Single wire center reinforcing core
– The loose tube éns filled with a special waterproofing compound
– Full core filling
– Plastic-coated aluminium tape (APL) moisture barrier
– Double-sided plastic-coated steel tape (PSP) énmproves the moisture permeability of fiber optic cables
– Good water–blocking material prevents longitudinal water seepage nak,-nek a fiber optic cable
GYTZA53-122~132Xn Optic Cable Product and More Optic Cables
Loose sleeve stranded non–metallic reinforced mag armored flame retardant fiber optic cable (GYFTZA53)
Stranded Flame Retardant Fiber Optic Cable (GYTZS)
Stranded loose jacket ntovább-armoured flame retardant fiber optic cable (GYTZA)
Stranded loose sleeve ntovább-metallic reinforced core armored fiber optic cable (GYFTA53)
Stranded ntovább-metallic reinforcing core plain armored fiber optic cable (GYFTY53)
Stranded loose jacket ntovább-metallic reinforced core unarmoured fiber optic cable (GYFTA)
Loose sleeve stranded ntovább-metallic reinforced core optical cable (GYHTY)
Stranded loose jacket ntovább-metallic reinforced core unarmoured fiber optic cable (GYFTY)
Loose sleeve stranded single thin round steel wire armored fiber optic cable (GYTA53 33)
GYTZA53-122~132Xn Optic Cable Product Applications
1. Petroleum sector.
2. Metro.
3. Tunnel.
4. Electricity, long–distance kommunikáció és inter–office kommunikáció.

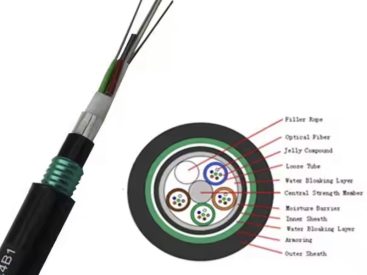

GYTZA53-122~132Xn Optic Cable Product Structure
