Leírás

GYTZA53-14~18Xn Optic Cable is Flame-retardant Double Armored Stranded Loose Tube Optical Cable Applied for pipeline, overhead, direct burial

GYTZA53-14~18Xn Optic Cable Product Overview

GYTZA53 optical fiber loose tube layer stranded type, key protection of optical fiber, full-section water-blocking structure, double-sided coated aluminum tape longitudinal wrapping, to ensure the radial moisture-proof of the optical cable, enhance the side pressure resistance of the optical cable, the center steel wire strengthens the core, the cable core is filled with special ointment, the double-coated aluminum tape is bonded with PE inner sheath, and the rolled steel strip is bonded with flame retardant outer sheath.
GYTZA53 fiber optic cable uses non-metallic materials as reinforcements and insulation, which has good flexibility and corrosion resistance, and can be used in harsh environments. Ugyanabban az időben, it adopts double-layer steel wire armor, which has good compressive and tensile properties, and can withstand large external forces and extrusions. The number of cores of GYTZA53 fiber optic cable is generally 4-14 magok, which is suitable for short-distance and medium-distance communication and monitoring systems.

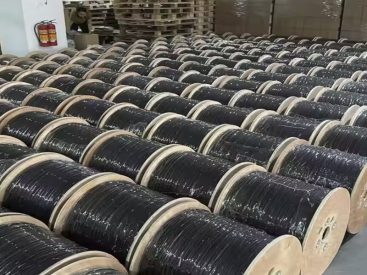

GYTZA53-14~18Xn Optic Cable Product Pictures

GYTZA53-14~18Xn Optic Cable price and specs ycictGYTZA53-14~18Xn Optic Cable GYTZA53

GYTZA53-14~18Xn Optic Cable GYTZA53 cable ycictGYTZA53-14~18Xn Optic Cable low cost ycict

GYTZA53-14~18Xn Optic Cable Product Specifications

Fiber optic cable model
(in 2-fiber increments)		 Number of fibers Number of casings Number of infill ropes Reference cable weight (kg/km) Tensile force is allowed
Long-term/short-term
(N)		 Allowable squashing force
Long-term/short-term
(N/100mm)		 Hajlítási sugár
Static/Dynamic
(mm)
GYTZA53-2~6Xn 2~6 1 5 217 1000/3000 1000/3000 12.5D/25D
GYTZA53-8~12Xn 8~12 2 4 217
GYTZA53-14~18Xn 14~18 3 3 217
GYTZA53-20~24Xn 20~24 4 2 217
GYTZA53-26~30Xn 26~30 5 1 217
GYTZA53-32~36Xn 32~36 6 0 217
GYTZA53-38~48Xn 38~48 4 1 235
GYTZA53-50~60Xn 50~60 5 0 235
GYTZA53-62~72Xn 62~72 6 0 250
GYTZA53-74~84Xn 74~84 7 1 286
GYTZA53-86~96Xn 86~96 8 0 286
GYTZA53-98~108Xn 98~108 9 1 330
GYTZA53-110~120Xn 110~120 10 0 330
GYTZA53-122~132Xn 122~132 11 1 366
GYTZA53-134~144Xn 134~144 12 0 366
GYTZA53-146~216Xn 146~216 13~18 5~0 366
Száltípus Attenuation （+20℃） Sávszélesség Numerical aperture Fiber optic cable cut-off wavelength
@ 850 nm @1300nm @ 1310 nm @ 1550 nm @ 850 nm @1300nm
G.652 — — ≤0,36 dB/km ≤0,22 dB/km — — — ≤1260 nm
G.655 — — ≤0.40dB/km ≤0,23 dB/km — — — ≤1450nm
50/125µm ≤3.3dB/km ≤1.2dB/km — — ≥500MHz·km ≥500MHz·km 0.200±0.015 NA —
62.5/125µm ≤3.5dB/km ≤1.2dB/km — — ≥200MHz·km ≥500MHz·km 0.275±0.015 NA —

GYTZA53-14~18Xn Optic Cable Product Features

  • The loose tube material has good hydrolysis resistance and side pressure resistance. The loose tube is filled with thixotropic water-blocking fiber paste to buffer and protect the optical fiber and realize the full-section water blocking in the loose tube.
  • Precise control of the residual length of the fiber in the loose tube and the residual length of the cable core structure ensures that the cable meets the tensile performance and temperature characteristics required by the product standard.
  • The water-blocking fiber paste and water-blocking cable paste realize the full-section water blocking of the internal gaps of the optical cable structure and ensure the longitudinal water-blocking performance of the optical cable. Plastic-coated aluminum strips and plastic-coated steel strips improve the moisture retention capacity of the fiber optic cable and prevent moisture from the outside of the fiber optic cable from penetrating into the cable core.
  • The LSZH outer sheath has the performance of ultraviolet radiation resistance and environmental stress cracking resistance, which ensures the service life of the optical cable.
  • LSZH sheath has excellent flame retardant properties.

GYTZA53-14~18Xn Optic Cable Product and More Optic Cables

Stranded Flame Retardant Rost Optic Kábel (GYTZS)
Stranded loose jacket ntovább-armoured flame retardant fiber optic cable (GYTZA)
Stranded loose sleeve ntovább-metallic reinforced core armored fiber optic cable (GYFTA53)
Stranded ntovább-metallic reinforcing core plain armored fiber optic cable (GYFTY53)
Stranded loose jacket ntovább-metallic reinforced core unarmoured fiber optic cable (GYFTA)
Loose sleeve stranded ntovább-metallic reinforced core optical cable (GYHTY)
Stranded loose jacket ntovább-metallic reinforced core unarmoured fiber optic cable (GYFTY)
Loose sleeve stranded single thin round steel wire armored fiber optic cable (GYTA53 33)
Loose Sleeve Stranded Reinforced Armoured Fiber Optic Cable(GYTA53)
Loose sleeve stranded ordinary armored fiber optic cable(GYTY53)
Loose sleeve stranded light armored fiber optic cable (GYTS)
Stranded loose jacket unarmoured fiber optic cable (GYTA)

GYTZA53-14~18Xn Optic Cable Product Applications

  • Petroleum sector
  • Metró
  • Tunnel
  • Electricity, long-distance communication and inter-office communication

GYTZA53-14~18Xn Optic Cable Product Structure

GYTZA53-14~18Xn Optic Cable structure
