Նկարագրություն
GYXTA33-2~12Xn Optic Cable is Loose central tube տիպ single thin round steel wire armored օպտիկական մալուխ
GYXTA33-2~12Xn Optic Cable Product Overview
GYXTA33 The structure of the fiber optic cable is that a 250μm optical fiber is sleeved into a loose tube made of high-modulus material, and the loose tube is filled with a waterproof compound. A layer of single thin round steel wire is twisted on the outside of the loose tube to form a compact and round cable core, and the gap in the cable core is filled with water-blocking filler. After the longitudinal wrapping of plastic-coated aluminum strip (ԱՊԼ), a layer of polyethylene inner sheath is extruded, and then a single thin round steel wire is armored, and finally the polyethylene outer sheath is extruded into a cable.

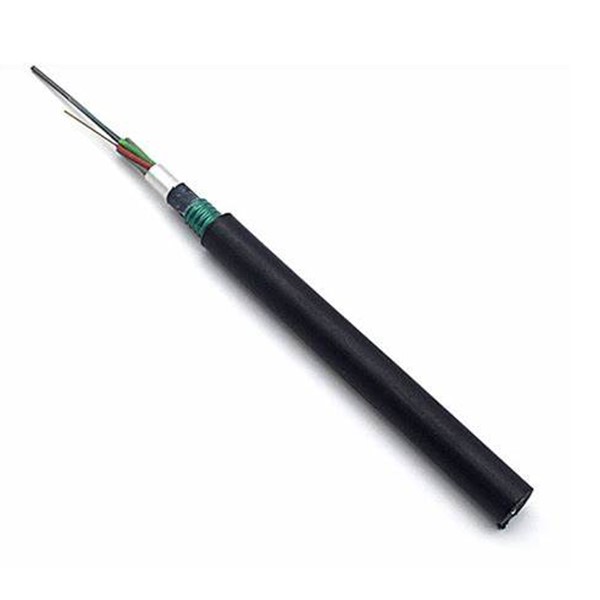

GYXTA33-2~12Xn Optic Cable Product Pictures
GYXTA33-2~12Xn Optic Cable Product Specifications
Fiber Optic Cable Type (2-մանրաթելային հավելավճարներով) | Մանրաթելերի քանակը | Տեղեկատու մալուխի քաշը (kg/km) | Առաձգական ուժը թույլատրվում է Երկարաժամկետ / կարճաժամկետ (Ն) |
Թույլատրելի Squashing ուժ Երկարաժամկետ / կարճաժամկետ (N/100 մմ) |
Bend շառավիղ Ստատիկ / դինամիկ (մմ) |
|||
GYXTA33-2~12Xn | 2~ 12 | 448 | 3000/5000 | 12.5D/25D | ||||
GYXTA33-14~24Xn | 14~ 24 | 478 | ||||||
GYXTA33-26~36Xn | 26~ 36 | 510 | 4000/10000 | |||||
Մանրաթելերի տեսակը | Attenuation (+20℃) | Թողունակություն | Numerical aperture | Օպտիկամանրաթելային մալուխի կտրված ալիքի երկարություն | ||||
@850 նմ | @1300 նմ | @1310 նմ | @1550 նմ | @850 նմ | @1300 նմ | |||
Գ.652 | — | — | ≤0.36DB / կմ | ≤0.22DB / կմ | — | — | — | ≤1260 նմ |
Գ.655 | — | — | ≤0.40DB / կմ | ≤0,23 դԲ/կմ | — | — | — | ≤1450NM |
50/125մկմ | ≤3.0dB/km | ≤1.0dB/km | — | — | ≥500mhz · km | ≥500mhz · km | 0.200± 0.015 ԱՅՍՏԵՂ | — |
62.5/125մկմ | ≤3.3DB / կմ | ≤1.0dB/km | — | — | ≥200mhz · km | ≥500mhz · km | 0.275± 0.015 ԱՅՍՏԵՂ | — |
GYXTA33-2~12Xn Optic Cable Product Features
• Very good mechanical and temperature properties
• Double-layer single thin round steel wire armor makes the fiber optic cable have stronger tensile performance
• The loose tube material itself has good hydrolysis resistance and high strength
• The tube is filled with a special paste to protect the optical fiber
• Good compression resistance and softness
• Small size, light weight, easy to lay
• The following measures are taken to ensure the waterproof performance of the cable:
– Չամրացված խողովակը լցված է հատուկ ջրամեկուսիչ բաղադրությամբ
– Full core filling
– Plastic-coated aluminium tape (ԱՊԼ) խոնավության խոչընդոտ
– Good water-blocking material prevents longitudinal water seepage of the fiber optic cable
GYXTA33-2~12Xn Optic Cable and More Optic Cables
Center Tube Y-sheathed Anti-Rodent Fiber Optic Cable (GYXTY)
Center Tube Sheathed Fiber Optic Cable with Anti-Rodent (GYDXTS)
Ներքին խողովակով ծածկված հակա-կրծող օպտիկամանրաթելային մալուխ (Գաջսեր)
Կենտրոն 53 Ծածկված հակա-կրծող մալուխ(Gyxty53)
Չամրացված խողովակի տիպի մեկ բարակ կլոր պողպատե մետաղալար զրահապատ օպտիկական մալուխ(Gyxta33)
Fiber Bundle Center Tube Sheathe Anti-Rodent օպտիկամանրաթելային մալուխ (Գոհ)
Fiber Bundle օդը փչում է միկրո մալուխ (Գեկֆսիա)
Ոչ մետաղական կենտրոնական խողովակների կայծակ եւ կրծող պաշտպանություն Օպտիկական մալուխ(Gyqfxty)
Ոչ մետաղական կենտրոնական խողովակ 73 Թեթեւ թեթեւ կայծակ եւ կրծող մանրաթել օպտիկական մալուխ (Gyqfxty73)
Ֆլեյմի ապակողպադիր օպտիկամանրաթելային մալուխ Կենտրոնական խողովակի ածուխի հանքավայրի համար (Mgxtw)
Ֆլեյմի ապակյա օպտիկական մալուխը չամրացված թեւի համար փչացած ածուխի հանքավայրի համար (Մգեր)
GYXTA33-2~12Xn Optic Cable Product Applications
Դիմում: direct burial, climbing, underwater
GYXTA33-2~12Xn Optic Cable Product Structure
