GYTZA-8~12Xn Optic Cable is Flame-retardance Stranded Loose Tube Optical Cable Application: saluran pipa, atas
GYTZA-8~12Xn Optic Cable Product Overview
GYTZA-8~12Xn Optic Cable is a robust and versatile solution designed to meet the demands of outdoor communication networks, particularly in environments requiring flame-retardant performance. This cable features colored optical fibers housed in a loose tube made of high-modulus material, providing exceptional mechanical strength and hydrolysis resistance. The loose tube is filled with thixotropic gel, ensuring optimal fiber protection and water-blocking capabilities.
A flame-retardant outer sheath, extruded over longitudinally wrapped coated aluminum tape, delivers superior fire resistance and environmental prot

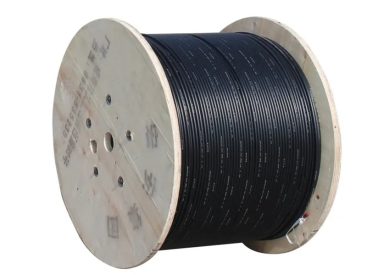

GYTZA-8~12Xn Optic Cable Product Pictures
GYTZA-8~12Xn Optic Cable Product Specifications
| Fiber cable model (in increments of 2 serat) | Number of optical fiber tubes | Number of sleeves | Number of filling ropes | Reference optical cable weight (kg/km) | Allowable tensile force Long-term/short-term (N) | Allowable crushing force long term/short term (T/100mm) | Bending radius static/dynamic (mm) | |
| GYTZA-2~6Xn | 2~6 | 1 | 4 | 101 | 600/1500 | 300/1000 | 10H/20D | |
| GYTZA-8~12Xn | 8~12 | 2 | 3 | 101 | ||||
| GYTZA-14~18Xn | 14~18 | 3 | 2 | 101 | ||||
| GYTZA-20~24Xn | 20~24 | 4 | 1 | 101 | ||||
| GYTZA-26~30Xn | 26~30 | 5 | 0 | 101 | ||||
| GYTZA-32~36Xn | 32~36 | 6 | 0 | 111 | ||||
| GYTZA-38~48Xn | 38~48 | 4 | 1 | 117 | ||||
| GYTZA-50~60Xn | 50~60 | 5 | 0 | 117 | ||||
| GYTZA-62~72Xn | 62~72 | 6 | 0 | 144 | ||||
| GYTZA-74~84Xn | 74~84 | 7 | 1 | 171 | ||||
| GYTZA-86~96Xn | 86~96 | 8 | 0 | 171 | ||||
| GYTZA-98~108Xn | 98~108 | 9 | 1 | 198 | ||||
| GYTZA-110~120Xn | 110~120 | 10 | 0 | 198 | ||||
| GYTZA-122~132Xn | 122~132 | 11 | 1 | 229 | ||||
| GYTZA-134~144Xn | 134~144 | 12 | 0 | 229 | ||||
| GYTZA-146~216Xn | 146~216 | 13~18 | 5~0 | 229 | ||||
| Fiber optic type | Atenuasi (20°C) | Bandwidth | Bukaan numerik | Optical fiber cutoff wavelength | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @ 850nm | @1300nm | |||
| G.652 | — | — | ≤0,36dB/km | ≤0,22dB/km | — | — | — | ≤1260 nm |
| G.655 | — | — | ≤0.40db/km | ≤0,23dB/km | — | — | — | ≤1450nm |
| 50/125mikron | ≤3.3db/km | ≤1.2db/km | — | — | ≥500mhz · km | ≥500mhz · km | 0.200± 0,015 sudah | — |
| 62.5/125mikron | ≤3.5db/km | ≤1.2db/km | — | — | ≥200MHz · km | ≥500mhz · km | 0.275± 0,015 sudah | — |
GYTZA-8~12Xn Optic Cable Product Features
GYTZA-8~12Xn Optic Cable Product and More Optic Cables
GYTZA-8~12Xn Optic Cable Product Applications

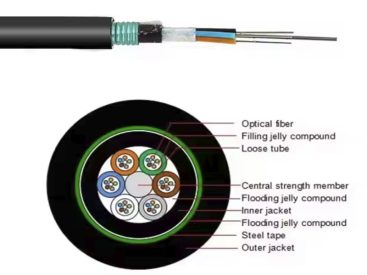

GYTZA-8~12Xn Optic Cable Product Structure
