Descrizione
HS8546V5 FTTH is a smart gateway Optical Terminal with 4GE 1POTS 1USB and dual-band Wi-Fi (2.4GHz & 5GHz).
HS8546V5 FTTH Product Overview
HS8546V5 is a smart gateway device for the gigabit fiber smart home solution built by for China Mobile. It provides 1 POTS voice interface, 4 GE/FE adaptive Ethernet ports and dual-band Wi-Fi (2.4GHz & 5GHz) , Flexible application, support plug and play, remote diagnosis, green energy saving and other features. HS8546V5 supports GPON and EPON technologies to realize ultra-broadband access for home users in FTTH networking scenarios. Its high-performance forwarding capability effectively guarantees the service experience of voice, data and high-definition video, and provides an ideal terminal solution and orientation for FTTH deployment. Future business support capabilities.

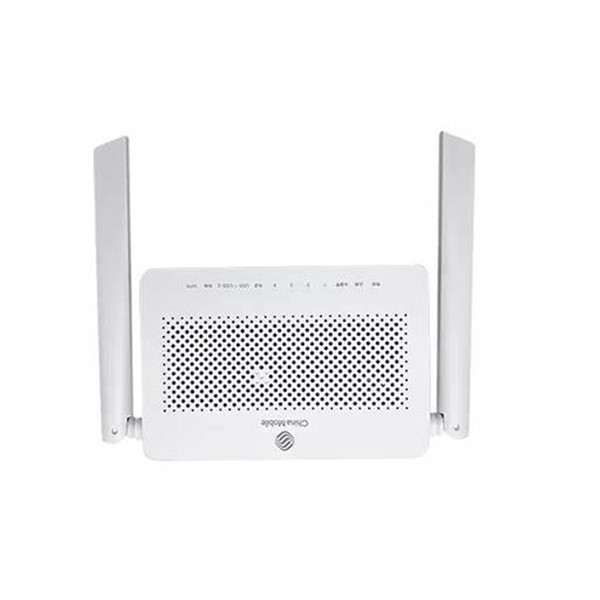

HS8546V5 FTTH Product Pictures
HS8546V5 FTTH Product Specifications
| Modello | HS8546V5 |
| Ambiente di lavoro | Temperatura di esercizio: 0ºC a 40ºC |
| Umidità ambientale: 5% A 95% (senza condensa) | |
| Consumo energetico tipico | 8 W |
| Specifiche di potenza | Ingresso adattatore di alimentazione: 100 A 240 V CA, 50–60Hz |
| Alimentazione del sistema: 11–14 VCC, 2 UN | |
| Wi-Fi | 2.4GHZ: 802.11n5GHZ: 802.11AC |
| Porta lato rete | GPON |
| Porte lato utente | 1 x LATTINE + 4 xGE + 2.4Wi-Fi G/5G + 1 xUSB |
| Indicatori | ALIMENTAZIONE/PON/LOS/TEL/LAN/WLAN/WPS/USB |
| Dimensioni (lunghezza x larghezza x altezza) | 173 mmx 120 mmx 30 mm |
| Peso | Di 1 Kg |
HS8546V5 FTTH Features
- Tipo di interfaccia: 1POTS+4GE+1USB+ dual-band (2.4GHz & 5GHz) Wifi.
- Flexible application: computer, STB and other home terminals can be arbitrarily interpolated on the Ethernet port; SIP and H.248 are supported by both protocols, and it is convenient to interface with soft switches.
- Collega e usa: Supports remote automatic distribution of voice, banda larga, and multicast services through the OMCI protocol and TR069, senza configurazione in loco.
- Remote diagnosis: support POTS port line test, call simulation, PPPoE dial-up simulation, easy remote fault location.
- Green energy saving: It adopts high integrated SOC chip, and integrates PON, voce, gateway and LSW modules on a single chip, Salvataggio 25% energia.
HS8546V5 FTTH and more Models
EPON/GPON ONT
GEPON ONT
HG8010 EPON ONT, 1*Firmware inglese LAN
HG8310 EPON ONT, 1*Firmware inglese LAN
HG8110 EPON ONT, 1*LAN+1*Firmware inglese vocale
HG8120 EPON ONT, 2*LAN+1*Firmware inglese vocale
HG8240 EPON ONT, 4*LAN+2*Firmware inglese vocale
HG8346R EPON ONT, 4*LAN+2*Voce+WIFI Firmware inglese
HG8245C EPON ONT, 4*LAN+2*Voce+WIFI Firmware inglese
GPON ONT
HG8310M GPON ONT, 1*Firmware inglese LAN
HG8010/HG8010C GPON ONT, 1*Firmware inglese LAN
HG8311/HG8110/HG8110F GPON ONT, 1*LAN+1*VOCE Firmware inglese SIP
HG8120C/HG8120F/HG8120/HG8321/HG8321R GPON ONT, 2LAN+VOCE Firmware inglese SIP
HG8340M/HG8540/HG8040 GPON ONT, 4FE Firmware inglese SIP
HG8342/HG8342R/HG8342M/HG8240 GPON ONT, 4FE+2VOICE Firmware inglese SIP
HG8240/HG8240H GPON ONT, 4Firmware inglese GE+2VOICE SIP
HG8345R antenna interna GPON ONT, 4FE+WIFI (antenna interna)Firmware inglese SIP
HG8345R antenna esterna GPON ONT, 4FE+WIFI (antenna esterna)Firmware inglese SIP
HG8546M GPON ONT, 1GE+3FE+VOCE+WIFI, Firmware inglese SIP
HG8346M/HG8245A/HG8346R GPON ONT, 4FE+2VOICE+WIFI (antenna interna)Firmware inglese SIP
HG8346R antenna esterna GPON ONT, 4FE+2VOICE+WIFI (antenna esterna)Firmware inglese SIP
HG8245C GPON ONT, 2GE+2FE+2VOICE+WIFI Firmware inglese SIP
HG8245 antenna esterna GPON ONT, 4GE+2VOICE+WIFI ( antenna esterna)colore nero inglese SIP
HG8245H GPON ONT, 4GE+2VOICE+WIFI Firmware inglese SIP ONT
HG8247 GPON/EPON ONT, 4GE+2VOICE+WIFI+CATV Firmware inglese SIP
HS8546V5 FTTH Product Applications
