GYTZS-122~132Xn Optic Cable is Stranded Loose Tube Flame-retardant Cable, which is a type of communication cable that consists of two or more glass or plastic optical fiber cores, located within a protective coating, covered by an outer plastic PVC sheath. The signal transmission along the internal optical fibers generally uses infrared light.
GYTZS-122~132Xn Optic Cable Product Overview
The structure of the optical cable consists of a 250µm optical fiber encased in a loose tube made of high-modulus materials, with a waterproof compound filling the inside of the loose tube. The center of the cable core is a metal strength member, and for some fiber count cables, an additional layer of polyethylene (체육) needs to be extruded over the metal strength member. The loose tube and fill rope are twisted around the central strength member to form a compact and round cable core, with gaps inside the cable core filled with water-blocking material. A double-sided coated steel tape (PSP) is longitudinally wrapped and extruded to form a flame-retardant sheath for the cable.
Optical cables are communication cables that contain optical fibers, and in addition to the fibers themselves, they also include strengthening materials and protective layers to safeguard the fibers from external physical or environmental damage. Optical cables provide mechanical support and external protection for the optical fibers, ensuring reliable operation under complex geographical and environmental conditions.

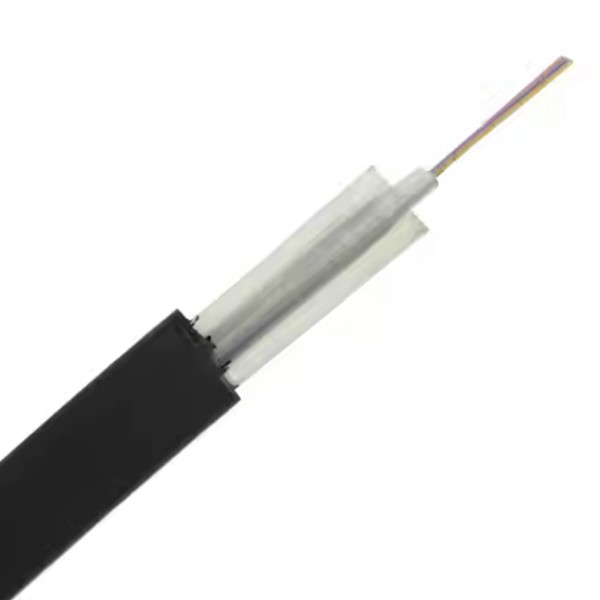

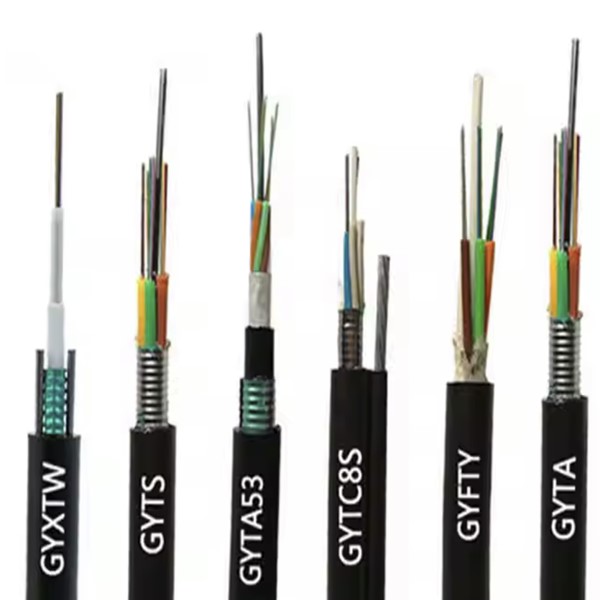

GYTZS-122~132Xn Optic Cable Product Pictures
GYTZS-122~132Xn Optic Cable Product Specifications
| 광섬유 케이블 모델 (2개 섬유 증분) | 섬유의 수 | 케이싱 수 | Number of infill ropes | 기준 케이블 무게 (kg/km) | 인장력이 허용됩니다 장기/단기 (N) |
허용 가능한 압착력 장기/단기 (N/100mm) |
굴곡 반경 정적/동적 (mm) |
|
| GYTZS-2~6Xn | 2~6 | 1 | 4 | 118 | 600/1500 | 300/1000 | 10D/20D | |
| GYTZS-8~12Xn | 8~12 | 2 | 3 | 118 | ||||
| GYTZS-14~18Xn | 14~18 | 3 | 2 | 118 | ||||
| GYTZS-20~24Xn | 20~24 | 4 | 1 | 118 | ||||
| GYTZS-26~30Xn | 26~30 | 5 | 0 | 118 | ||||
| GYTZS-32~36Xn | 32~36 | 6 | 0 | 131 | ||||
| GYTZS-38~48Xn | 38~48 | 4 | 1 | 139 | ||||
| GYTZS-50~60Xn | 50~60 | 5 | 0 | 139 | ||||
| GYTZS-62~72Xn | 62~72 | 6 | 0 | 170 | ||||
| GYTZS-74~84Xn | 74~84 | 7 | 1 | 200 | ||||
| GYTZS-86~96Xn | 86~96 | 8 | 0 | 200 | ||||
| GYTZS-98~108Xn | 98~108 | 9 | 1 | 230 | ||||
| GYTZS-110~120Xn | 110~120 | 10 | 0 | 230 | ||||
| GYTZS-122~132Xn | 122~132 | 11 | 1 | 268 | ||||
| GYTZS-134~144Xn | 134~144 | 12 | 0 | 268 | ||||
| GYTZS-146~216Xn | 146~ 216 | 13~18 | 5~ 0 | 268 | ||||
| GYTZS-288Xn | 288 | 24 | 0 | 360 | ||||
| 섬유 종류 | 감쇠 | 대역폭 | 조리개 | 광섬유 케이블 차단 파장 | ||||
| (+20℃) | ||||||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | 0.36dB/km 이하 | 0.22dB/km 이하 | — | — | — | ≤1260nm |
| G.655 | — | — | 0.40dB/km 이하 | 0.23dB/km 이하 | — | — | — | ≤1450nm |
| 50/125μm | ≤3.3dB/km | 1.2dB/km 이하 | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015NA | — |
| 62.5/125μm | ≤3.5dB/km | 1.2dB/km 이하 | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015NA | — |
GYTZS-122~132Xn Optic Cable Product Features
- Has good mechanical properties and temperature characteristics
- Good compressive strength and flexibility
- The loose tube material itself has good resistance to hydrolysis and high strength
- Specially designed compact cable structure effectively prevents tube shrinkage
- Special sheath has excellent flame retardant properties
- The tube is filled with special oil paste, providing crucial protection for the optical fibers
- The following measures are taken to ensure the waterproof performance of the cable:
-A single steel wire center strengthened core
-Filling the loose tube with a special waterproof compound
-Fully filling the cable core
-Double-sided plastic
-coated steel tape (PSP) improves the moisture penetration resistance of the optical cable.
GYTZS-122~132Xn Optic Cable Product and More Optic Cables
Loose tube stranded reinforced armored flame-retardant optical cable (GYTZA53)
Loose tube stranded non-metal reinforced armored flame-retardant optical cable (GYFTZA53)
Loose tube stranded flame-retardant optical cable (GYTZS)
Loose tube stranded non-armored flame-retardant optical cable (GYTZA)
Loose tube stranded non-metal reinforced armored optical cable (cyfta53)
Loose tube stranded non-metal reinforced common armored optical cable (GYFTY53)
Loose tube stranded non-metal reinforced non-armored optical cable (함께)
Loose tube stranded non-metal reinforced optical cable (GYHTY)
Loose tube stranded non-metal reinforced non-armored optical cable (사촌)
Loose tube stranded single steel wire armored optical cable (GYTA53+33)
Loose tube stranded reinforced armored optical cable (GYTA53)
Loose tube stranded common armored optical cable (GYTY53)
Loose tube stranded light armored optical cable (GYTS)
Loose tube stranded non-armored optical cable (GYTA)
GYTZS-122~132Xn Optic Cable Product Applications
- Urban Communication Networks: Ideal for backbone and distribution networks in cities where fire safety compliance and reliable performance are crucial.
- Industrial and High-Risk Fire Areas: Suitable for deployment in industrial zones, 화학공장, and other areas with potential fire hazards due to its flame-retardant outer sheath.
- Aerial Deployments: The cable’s reinforced structure and excellent tensile strength make it suitable for aerial installations where mechanical stress and UV resistance are key.
GYTZS-122~132Xn Optic Cable Product Structure
