Cisco UCS C480 M5 Rack Server is an enterprise-class rack server optimized for storage and I/O for in-memory databases, big data analytics, virtualizācija, virtual desktop infrastructure (VDI), and bare metal applications Provide industry leading performance.
Cisco UCS C480 M5 Rack Server General Introduction
The C480 M5 is available in a 4-rack unit (4RU) form factor for superior scalability and performance for stand-alone environments or Cisco Unified Computing SystemTM (Cisco UCS) managed environments. Papildus, thanks to its modular design, you only pay for the features you need.

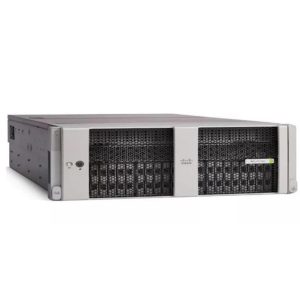

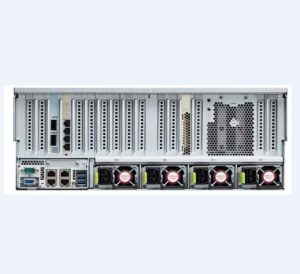

Cisco UCS C480 M5 Rack Server Product Picture
Cisco UCS C480 M5 Rack Server Specifications
| LIETA | Specifikācija |
| Izskata specifikācija | 4RU plauktu serveris |
| procesors | Intel® Xeon® mērogojams procesors (2 vai 4) |
| RAM | 48 DDR4 DIMM sloti: 16, 32, 64, un 128 GB at speeds up to 2666 MHz |
| PCIe paplašinājums | 12 PCIe 3.0 slots plus 1 veltīta 12 Gbps RAID controller slot |
| RAID Controller | Iekšējais kontrolieris: |
| Cisco 12 Gbps modulārais RAID kontrolieris (PCIe 3.0) ar 4 GB ar zibatmiņu darbināma rakstīšanas kešatmiņa (FBWC) for enterprise-class data protection for up to 24 SAS un SATA HDD un SSD | |
| A 12 Gbps 9460-8i RAID controller with 2 GB FBWC supports up to eight SAS and SATA HDDs and SSDs in the Auxiliary Drive Module. | |
| PCIe NVMe switch card for up to 8 PCIe NVMe drives in the secondary drive module | |
| External Controller: Cisco 12 Gbps 9400-8e SAS Host Bus Adapter (HBA) | |
| Iekšējā glabātuve | Supports up to 32 hot-swap 2.5-inch small form factor (SFF) drives |
| Līdz 24 front 2.5-inch drives | |
| ◦ Option 1: SAS/SATA HDD and SSD with up to 12 PCIe NVMe drives | |
| ◦ Option 2: 24 PCIe NVMe drives | |
| Līdz 8 overhead 2.5-inch SAS/SATA/PCIe HDD and SSD in the C480 M5 Auxiliary Drive Module | |
| DVD drive options | |
| Iegultā tīkla interfeisa karte (NIC) | Divkāršs 10GBASE-T Intel x550 Ethernet ports |
| enerģijas padeve | Redundant hot swap 1050W AC power and 1600W AC power |
| Cita krātuve | Divas Cisco FlexFlash iekšējās SD kartes (32, 64, un 128 GB) operētājsistēmas vai hipervizora instalēšanai |
| Atbalstiet RAID 0 spoguļošana starp SD kartēm | |
| Dual M.2 SATA SSD or PCIe NVMe drive | |
| Rack iespēja | Cisco lodīšu gultņu sliežu komplekts ar atgriezenisku kabeļa vadības sviru (neobligāti) |
Cisco UCS C480 M5 Rack Server Feature
- Support high-capacity memory, if 128 GB DIMM is used, the memory can reach 6 TB
Large memory space can provide the performance and capacity required for memory computing - Supports modular storage, with up to 24 front and 8 top-mounted hot-swappable hard disk drives (HDD) and solid state disk (SSD) or PCIe NVMe drives
Use modularity to determine storage options of the right size to meet application requirements
Ability to flexibly expand capacity when storage demand increases - Supports up to 12 PCIe ģen 3 slots
Increased I/O throughput, improved performance and flexibility
Supports up to 6 graphics processing units (GPU) to support deep learning workloads - Scalable CPU configuration
Ability to use C480 M5 server module to expand from 2 slots to 4 slots when business needs change - Hot-plug redundant power supply
Improved high availability - Integrated dual 10 Gbps Ethernet
Improved network I/O performance
