Description
GYFTA53-98~108Xn Optic Cable is Loose-tube stranded non-metallic reinforced core armored optical cable
GYFTA53-98~108Xn Optic Cable Product Overview
The structure of GYFTA53 optical cable consists of a 250µm optical fiber housed in a loose tube made of high-modulus material, with waterproof compounds filling the inside of the tube. The center of the cable core is a non-metallic reinforcement core (FRP), and for certain fiber counts, a layer of polyethylene (PE) is additionally extruded around the non-metallic reinforcement core. Ny fantsona malemy (and filling rope) is twisted around the central reinforcement core to form a compact and round cable core, with the gaps inside the core filled with water-blocking filler. A layer of polyethylene inner sheath is extruded after wrapping with aluminum tape (APL), and a polyethylene outer sheath is formed after wrapping with double-sided coated steel tape (PSP).
Optical cables, with their advantages of high bandwidth, low loss, long-distance transmission capability, and resistance to electromagnetic interference, have become an indispensable part of modern communication infrastructure. With the development of technologies such as 5G, the Internet of Things (IoT), and cloud computing, optical cables are playing an increasingly important role in building high-speed and reliable communication networks.

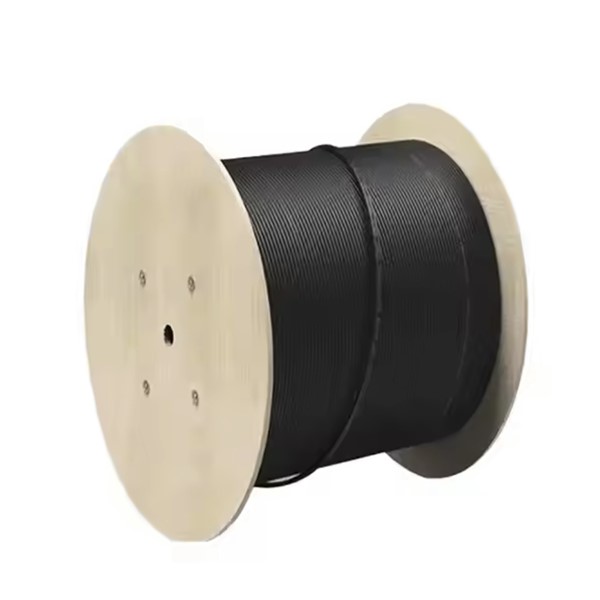

GYFTA53-98~108Xn Optic Cable Product Pictures
GYFTA53-98~108Xn Optic Cable Product Specifications
| Modely tariby fibre (amin'ny fitomboan'ny 2 kofehy) | Isan'ny fantsom-pifandraisana optika | Isan'ny sandriny | Isan'ny famenoana tady | Reference lanja optical (kg/km) | Omena hery maharitra maharitra / fotoana fohy (N) | Fahazoan-tanana henjana maharitra ela / fotoana fohy (N/100mm) | Ny radius radius static / dynamic (MG) | |
| GYFTA53-2~6Xn | 2~6 | 1 | 7 | 228 | 1000/3000 | 1000/3000 | 12.5D/25D | |
| GYFTA53-8~12Xn | 8~12 | 2 | 6 | 228 | ||||
| GYFTA53-14~18Xn | 14~18 | 3 | 5 | 228 | ||||
| GYFTA53-20~24Xn | 20~24 | 4 | 4 | 228 | ||||
| GYFTA53-26~30Xn | 26~30 | 5 | 3 | 228 | ||||
| GYFTA53-32~36Xn | 32~36 | 6 | 2 | 228 | ||||
| GYFTA53-38~42Xn | 38~42 | 7 | 1 | 228 | ||||
| GYFTA53-44~48Xn | 44~48 | 8 | 0 | 228 | ||||
| GYFTA53-50~60Xn | 50~60 | 5 | 3 | 240 | ||||
| GYFTA53-62~72Xn | 62~72 | 6 | 2 | 240 | ||||
| GYFTA53-74~84Xn | 74~84 | 7 | 1 | 240 | ||||
| GYFTA53-86~96Xn | 86~96 | 8 | 0 | 240 | ||||
| GYFTA53-98~108Xn | 98~108 | 9 | 1 | 276 | ||||
| GYFTA53-110~120Xn | 110~120 | 10 | 0 | 276 | ||||
| GYFTA53-122~132Xn | 122~132 | 11 | 1 | 326 | ||||
| GYFTA53-134~144Xn | 134~144 | 12 | 0 | 326 | ||||
| Karazana optika fibre | Attenuation （+20℃） | passante | Aperture nomerika | Optical fiber fibre wavelength | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | - | - | ≤0.36dB/km | ≤0.22dB/km | - | - | - | ≤1260nm |
| G.655 | - | - | ≤0.40DB / km | ≤0.23dB/km | - | - | - | ≤4450nm |
| 50/125μm | ≤3.3db / km | ≤1.2db / km | - | - | ≥500mhzz · km | ≥500mhzz · km | 0.200± 0.015 sahady | - |
| 62.5/125μm | § 3.5DB / km | ≤1.2db / km | - | - | ≥200mhz · km | ≥500mhzz · km | 0.275± 0.015 sahady | - |
GYFTA53-98~108Xn Optic Cable Product Features
- Excellent Mechanical Properties and Temperature Characteristics: The cable is designed with materials that offer outstanding mechanical strength and temperature resistance. This ensures its ability to withstand various environmental conditions and installations.
- Compression Resistance and Flexibility: The cable is engineered to exhibit excellent compression resistance, allowing it to withstand external pressures without compromising its performance. Fanampin'izany, it offers flexibility, making it easier to handle and install.
- Effective Water-blocking Material: The cable utilizes high-quality water-blocking material to prevent water infiltration along the length of the optical cable. This ensures that the optical fibers remain protected and unaffected by water-related issues.
GYFTA53-98~108Xn Optic Cable Product and More Optic Cables
Central tube light armored fiber optic cable (Joint)
Central tube flame-retardant cable (Gyxtzw)
Central tube non-metallic non-armored cable (Gyfxy)
Central tube non-armored cable (Gyxy)Central tube light armored cable (Gyxs / goxxtw)
Loose-tube stranded light armored fiber optic cable (Gydts)
Loose-tube stranded non-armored fiber optic cable (Gyta)
Loose-tube stranded non-metallic reinforced core non-armored flame-retardant cable (Gyftzy)
Loose-tube stranded reinforced core armored flame-retardant cable (Gytza53)
Loose-tube stranded non-metallic reinforced core armored flame-retardant cable (Gyftza53)
Loose-tube stranded flame-retardant cable (Gytzs)
Loose-tube stranded non-armored flame-retardant cable (Gytza)
Loose-tube stranded non-metallic reinforced core armored cable (Cyfta53)
Loose-tube stranded non-metallic reinforced core ordinary armored cable (Cyfty53)
Loose-tube stranded non-metallic reinforced core non-armored cable (MIARAKA)
Loose-tube stranded non-metallic reinforced core cable (Gyhty)
Loose-tube stranded non-metallic reinforced core non-armored cable (mpiray tam-po)
Loose-tube stranded single fine steel wire armored cable (GYTA53+33)
GYFTA53-98~108Xn Optic Cable Product Applications
- Long-distance communication: Used for long-distance data transmission between countries and internationally.
- Metropolitan area network: Connects different network nodes within a city.
- Local area network: Used for high-speed data transmission in local networks such as businesses, SEKOLY, and homes.
- Data center: Connects servers, storage devices, and network devices to achieve high-speed internal communication..
GYFTA53-98~108Xn Optic Cable Product Structure
