Description
Huawei ETP48150 A3 Power is an embedded power supply system for communication. It uses a 48V / 50Module rectifier. The product provides a stable and reliable DC power supply.
Huawei ETP48150 A3 Power Product Overview
Huawei ETP48150 A3 embedded DC power system can convert AC input to stabilized -48V DC output. It can be compatible with 15A and 30A rectifiers. ETP48150 can be embedded in 19-inch rack or cabinet or other scenarios. The system can adapt to a wide range of AC input voltage and provide excellent performance such as intelligent battery management, fitantanana lavitra, sns.
Each functional unit adopts standardized size design, supports hot-swap, 3U system height, and supports multiple installation methods such as standard 19-inch racks or embedded cabinets. The system can adapt to a wide range of AC inputs and has functions such as intelligent battery management and remote management.

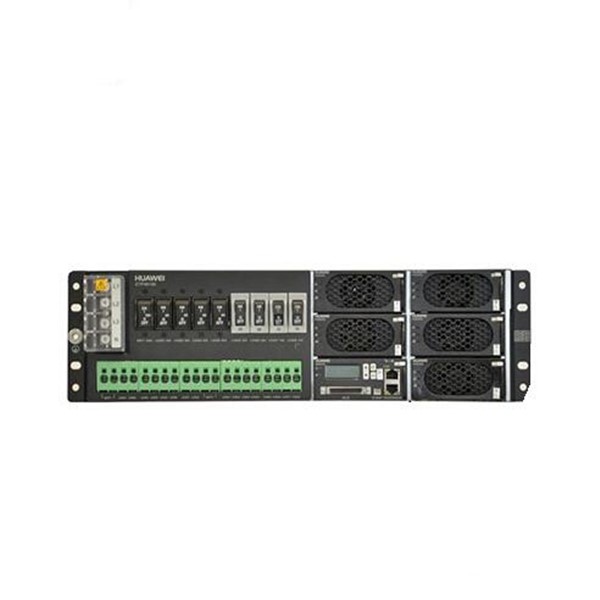

Huawei ETP48150 A3 Power Product Pictures
Huawei ETP48150 A3 Power Product Specifications
| Marika | Huawei |
| MODELY | ETP48150 A3 |
| lafiny | 442MG(W)×255mm(D)×3U(H) |
| lanja | ≤20kg (fully configured) |
| Cooling method | Natural cooling |
| Installation method | 19-inch rack or embedded cabinet installation |
| Route way | Forward line |
| Maintenance method | Front operation, front maintenance, support module-level replacement |
| Protection class | IP20 |
| Fomba fampidirana | Single-phase / three-phase / dual firewire |
| Volavola miditra | 220VAC / 110VAC |
| Input frequency | 45 ~ 66Hz, rated value: 50Hz / 60Hz |
| Lightning protection | 5kA / 10kA, 8 / 20antsika |
| The output voltage | 42 ~ 58V DC, rated value: 53.5V DC |
| Maximum power | 8kW (5 × 1605W) |
| Sampana bateria | 1x100A (hydraulic circuit breaker) |
| Load branch | 2x12A (hydraulic circuit breaker), 2x20A (hydraulic circuit breaker), 4x40A (hydraulic circuit breaker) |
| Operating ambient temperature | -40 ℃ ~ + 70 ℃ |
| mari-pana fitahirizana | -40 ℃ ~ + 70 ℃ |
| Operating environment humidity | 5% ~ 95% (tsy condensing) |
| altitude | 0 ~ 4000m |
Huawei ETP48150 A3 Power Product Features
- 85 ～ 300VAC ultra-wide AC voltage input range
- Operating temperature range of rectifier module reaches -40 ～ + 75 ℃
- Support hot plug technology, convenient installation and maintenance
- Standard installation structure design, strong versatility
- Compact power supply structure saves space and installation costs
- High-efficiency rectifier module efficiency over 96%, energy-saving and emission reduction
- Complete module sleep function to further improve system efficiency
- Intelligent battery management and battery protection to extend battery life
- Supports environmental monitoring and remote management via dry contacts, serial ports or network interfaces

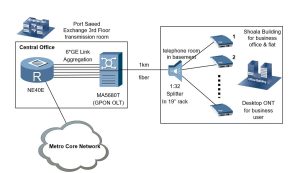

Huawei ETP48150 A3 Power Product Applications
- • Access network
- • Transmission network
- • Communication network of enterprise
