GYFTA-20~24Xn Optic Cable is Loose-tube stranded non-metallic reinforced core unarmored optical cable
GYFTA-20~24Xn Optic Cable Product Overview
The structure of GYFTA optical cable consists of a 250µm optical fiber encased in a loose tube made of high-modulus material, with a waterproof compound filled inside the tube. The center of the cable core features a non-metallic reinforcement core (FRP), and for certain fiber counts, an additional layer of polyethylene (PE) is extruded over the non-metal reinforcement core. The loose tube (and filler ropes) are twisted around the central reinforcement core to form a compact and round cable core, which is filled with water-blocking filler in the gaps. After longitudinally wrapping with aluminum plastic (APL), a polyethylene sheath is extruded to form the cable.
Optical cables are communication lines used for long-distance, high-speed data transmission, with the core component made of high-purity glass or plastic optical fibers. Optical cables utilize the principle of total internal reflection to convert electrical signals into optical signals, which are transmitted through the optical fibers, and then at the receiving end, the optical signals are converted back to electrical signals, thus enabling high-speed information transmission.
GYFTA-20~24Xn Optic Cable Product Pictures
GYFTA-20~24Xn Optic Cable Product Specifications
| Fiber optic cable model (in 2-fiber increments) |
Number of fibers | Number of casings | Number of infill ropes | Reference cable weight (kg/km） |
Tensile force allowed Long-term/short-term (N) |
Allowable squashing force Long-term/short-term (N/100mm) |
Bend radius Static/Dynamic (mm) |
|
| GYFTA-2~6Xn | 2~6 | 1 | 7 | 127 | 1000/3000 | 300/1000 | 10D/20D | |
| GYFTA-8~12Xn | 8~12 | 2 | 6 | 127 | ||||
| GYFTA-14~18Xn | 14~18 | 3 | 5 | 127 | ||||
| GYFTA-20~24Xn | 20~24 | 4 | 4 | 127 | ||||
| GYFTA-26~30Xn | 26~30 | 5 | 3 | 127 | ||||
| GYFTA-32~36Xn | 32~36 | 6 | 2 | 127 | ||||
| GYFTA-38~42Xn | 38~42 | 7 | 1 | 127 | ||||
| GYFTA-44~48Xn | 44~48 | 8 | 0 | 127 | ||||
| GYFTA-50~60Xn | 50~60 | 5 | 3 | 136 | ||||
| GYFTA-62~72Xn | 62~72 | 6 | 2 | 136 | ||||
| GYFTA-74~84Xn | 74~84 | 7 | 1 | 136 | ||||
| GYFTA-86~96Xn | 86~96 | 8 | 0 | 136 | ||||
| GYFTA-98~108Xn | 98~108 | 9 | 1 | 161 | ||||
| GYFTA-110~120Xn | 110~120 | 10 | 0 | 161 | ||||
| GYFTA-122~132Xn | 122~132 | 11 | 1 | 195 | ||||
| GYFTA-134~144Xn | 134~144 | 12 | 0 | 195 | ||||
| Fiber type | Attenuation | Bandwidth | Numerical Aperture | Fiber optic cable cut-off wavelength | ||||
| （+20℃） | ||||||||
| @850nm | @1300 nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0.40dB/km | ≤0.23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYFTA-20~24Xn Optic Cable Product Features
• Possesses excellent mechanical properties, temperature characteristics, and flame retardant performance.
• The material of the loose tube itself has good hydrolysis resistance and high strength.
• The tube is filled with special oily paste, providing critical protection for the optical fibers.• The specially designed compact cable structure effectively prevents tube shrinkage.
• The PE sheath has excellent UV radiation resistance.
• The following measures are adopted to ensure the waterproof performance of the cable:
– A single non-metallic center strengthening core.
– The loose tube is filled with a special waterproof compound.
– Completely filled cable core.
– Coated aluminum tape (APL) moisture barrier.
GYFTA-20~24Xn Optic Cable Product and More Optic Cables
Loose tube stranded non-metallic reinforced core optical cable (GYHTY)
Loose tube stranded non-metallic reinforced core unarmored optical cable (GYFTY)
Loose tube stranded single steel wire armored optical cable (GYTA53 33)
Loose tube stranded reinforced armored optical cable (GYTA53)
Loose tube stranded ordinary armored optical cable (GYTY53)
Loose tube stranded light armored optical cable (GYTS)
Loose tube stranded unarmored optical cable (GYTA)
Central tube flame-retardant optical cable (GYXTZW)
Central tube non-metallic unarmored optical cable (GYFXY)
Central tube unarmored optical cable (GYXY)
Central tube light armored optical cable (GYXS/GYXTW)
Loose tube stranded light armored fiber ribbon optical cable (GYDTS)
Loose tube stranded unarmored fiber ribbon optical cable (GYDTA)
Loose tube stranded non-metallic reinforced core unarmored flame-retardant optical cable (GYFTZY)
Loose tube stranded reinforced core armored flame-retardant optical cable (GYTZA53)
GYFTA-20~24Xn Optic Cable Product Applications
- Aerial Cable Installations: Enhanced tensile strength and UV-resistant outer sheath make it an excellent choice for aerial applications, capable of withstanding wind pressure and tension.
- Duct Cable Installations: Its compact and lightweight structure allows for easy installation in narrow conduits, while its water-blocking capabilities effectively protect against underground moisture.
- Harsh Climate Conditions: Exceptional temperature characteristics and mechanical performance ensure reliable operation in cold, high-temperature, or environments with frequent temperature fluctuations.

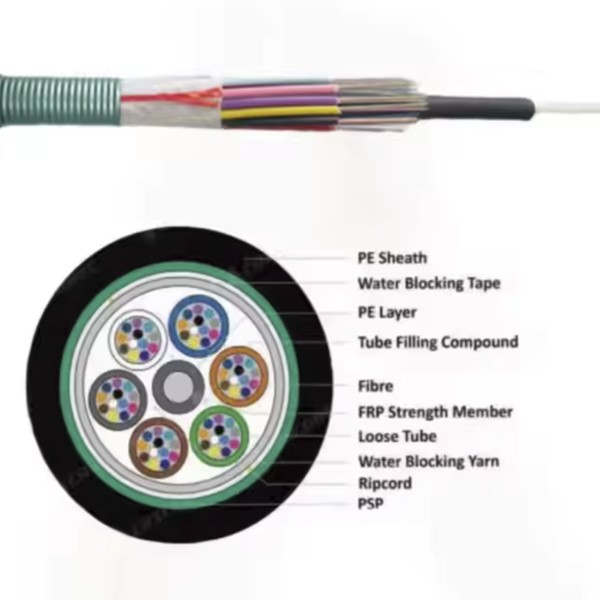

GYFTA-20~24Xn Optic Cable Product Structure
