GYFTA53-20~24Xn Optic Cable is Loose tube stranded non-metallic reinforced core armored optical cable, Applicable: Overhead
GYFTA53-20~24Xn Optic Cable Product Overview
The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. After a corrugated steel tape armor is applied, the cable is completed with a PE outer sheath.
Fiber optic communication is one of the important methods of modern information transmission. It has advantages such as large capacity, long relay distances, good confidentiality, resistance to electromagnetic interference, and saving copper materials.

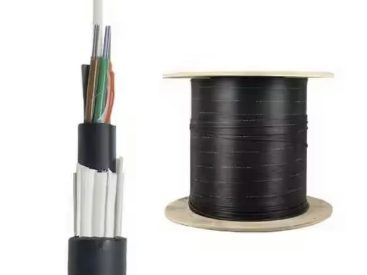

GYFTA53-20~24Xn Optic Cable Product Pictures
GYFTA53-20~24Xn Optic Cable Product Specifications
| Fiber cable model (in increments of 2 fibers) | Number of optical fiber tubes | Number of sleeves | Number of filling ropes | Reference optical cable weight (kg/km) | Allowable tensile force Long-term/short-term (N) | Allowable crushing force long term/short term (N/100mm) | Bending radius static/dynamic (mm) | |
| GYFTA53-2~6Xn | 2~6 | 1 | 7 | 228 | 1000/3000 | 1000/3000 | 12.5D/25D | |
| GYFTA53-8~12Xn | 8~12 | 2 | 6 | 228 | ||||
| GYFTA53-14~18Xn | 14~18 | 3 | 5 | 228 | ||||
| GYFTA53-20~24Xn | 20~24 | 4 | 4 | 228 | ||||
| GYFTA53-26~30Xn | 26~30 | 5 | 3 | 228 | ||||
| GYFTA53-32~36Xn | 32~36 | 6 | 2 | 228 | ||||
| GYFTA53-38~42Xn | 38~42 | 7 | 1 | 228 | ||||
| GYFTA53-44~48Xn | 44~48 | 8 | 0 | 228 | ||||
| GYFTA53-50~60Xn | 50~60 | 5 | 3 | 240 | ||||
| GYFTA53-62~72Xn | 62~72 | 6 | 2 | 240 | ||||
| GYFTA53-74~84Xn | 74~84 | 7 | 1 | 240 | ||||
| GYFTA53-86~96Xn | 86~96 | 8 | 0 | 240 | ||||
| GYFTA53-98~108Xn | 98~108 | 9 | 1 | 276 | ||||
| GYFTA53-110~120Xn | 110~120 | 10 | 0 | 276 | ||||
| GYFTA53-122~132Xn | 122~132 | 11 | 1 | 326 | ||||
| GYFTA53-134~144Xn | 134~144 | 12 | 0 | 326 | ||||
| Fiber optic type | Attenuation （+20℃） | Bandwidth | Numerical aperture | Optical fiber cutoff wavelength | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0.40dB/km | ≤0.23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYFTA53-20~24Xn Optic Cable Product Features
- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
- Crush resistance and flexibility
- The following measures are taken to ensure the cable watertight:
- Single Fiber Reinforced Plastic as the central strength member
- Loose tube filling compound
- 100% cable core filling
- APL moisture barrier
- PSP enhancing moisture-proof
- Water-blocking material
GYFTA53-20~24Xn Optic Cable Product and More Optic Cables
Loose tube layer stranded reinforced core armored flame-retardant fiber optic cable (GYTZA53)
Loose tube layer stranded non-metal reinforced core armored flame-retardant fiber optic cable (GYFTZA53)
Loose tube layer stranded flame-retardant fiber optic cable (GYTZS)
Loose tube layer stranded non-armored flame-retardant fiber optic cable (GYTZA)
Loose tube layer stranded non-metal reinforced core ordinary armored fiber optic cable (GYFTY53)
Loose tube layer stranded non-metal reinforced core non-armored fiber optic cable (GYFTA)
Loose tube layer stranded non-metal reinforced core fiber optic cable (GYHTY)
Loose tube layer stranded non-metal reinforced core non-armored fiber optic cable (GYFTY)
Loose tube layer stranded single wire round steel armored fiber optic cable (GYTA53 33)
Loose tube layer stranded reinforced armored fiber optic cable (GYTA53)
Loose tube layer stranded ordinary armored fiber optic cable (GYTY53)
Loose tube layer stranded light armored fiber optic cable (GYTS)
Loose tube layer stranded non-armored fiber optic cable (GYTA)
GYFTA53-20~24Xn Optic Cable Product Applications
- Long-distance communication: Used for long-distance data transmission between countries and countries.
- Metro: Connects different network nodes within a city.
- Local Area Network: Used for high-speed data transmission in local area networks such as businesses, schools, and homes.
- Data center: Connect servers, storage, and network equipment for high-speed internal communication.
GYFTA53-20~24Xn Optic Cable Product Structure
