विवरण
GYFTA53-38~42Xn Optic Cable is Loose tube layer twisted non-metal reinforced core armored optical cable, Applicable: Overhead
GYFTA53-38~42Xn Optic Cable Product Overview
The structure of GYFTA53 optical cable consists of a 250µm optical fiber encased in a loose tube made of high modulus material, filled with a waterproof compound. The core of the cable contains a non-metallic reinforcing core (चालि), and for certain core counts, an additional layer of polyethylene (PE) is extruded outside the non-metallic reinforcing core. The loose tubes (and filling ropes) are twisted around the central reinforcing core to form a compact and round cable core, with the gaps inside the cable core filled with a water-blocking filler. An aluminum tape (एपीएल) is longitudinally wrapped and then extruded with a polyethylene inner sheath, while a double-sided coated steel tape (बैज) is longitudinally wrapped and extruded with a polyethylene outer sheath to form the cable. This integrated structure of the GYFTA53 optical cable ensures durability, resistance to water damage, mechanical strength, and protection against external factors. With these features, the cable can reliably transmit data through optical fibers, making it suitable for various telecommunications and networking applications.

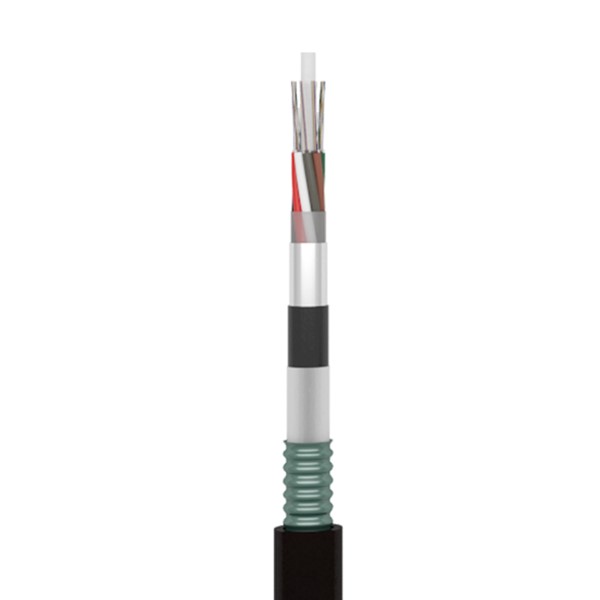

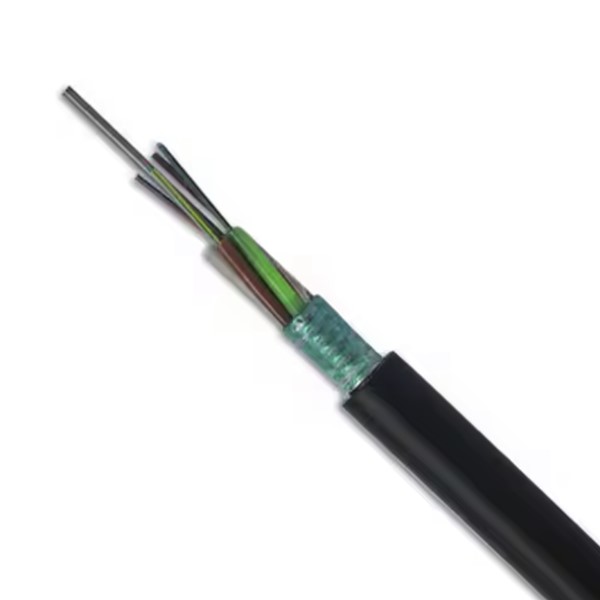

GYFTA53-38~42Xn Optic Cable Product Pictures
GYFTA53-38~42Xn Optic Cable Product Specifications
| Fiber cable model (in increments of 2 फाइबर) | Number of optical fiber tubes | Number of sleeves | Number of filling ropes | Reference optical cable weight (KG / KM) | Allowable tensile force Long-term/short-term (एन) | Allowable crushing force long term/short term (N / 100mm) | Bending radius static/dynamic (mm) | |
| GYFTA53-2~6Xn | 2~6 | 1 | 7 | 228 | 1000/3000 | 1000/3000 | 12.5D / 25D | |
| GYFTA53-8~12Xn | 8~१२ | 2 | 6 | 228 | ||||
| GYFTA53-14~18Xn | 14~१८ | 3 | 5 | 228 | ||||
| GYFTA53-20~24Xn | 20~ २४ | 4 | 4 | 228 | ||||
| GYFTA53-26~30Xn | 26~३० | 5 | 3 | 228 | ||||
| GYFTA53-32~36Xn | 32~३६ | 6 | 2 | 228 | ||||
| GYFTA53-38~42Xn | 38~ 42 | 7 | 1 | 228 | ||||
| GYFTA53-44~48Xn | 44~ ४८ | 8 | 0 | 228 | ||||
| GYFTA53-50~60Xn | 50~60 | 5 | 3 | 240 | ||||
| GYFTA53-62~72Xn | 62~७२ | 6 | 2 | 240 | ||||
| GYFTA53-74~84Xn | 74~ ८४ | 7 | 1 | 240 | ||||
| GYFTA53-86~96Xn | 86~96 | 8 | 0 | 240 | ||||
| GYFTA53-98~108Xn | 98~१०८ | 9 | 1 | 276 | ||||
| GYFTA53-110~120Xn | 110~१२० | 10 | 0 | 276 | ||||
| GYFTA53-122~132Xn | 122~१३२ | 11 | 1 | 326 | ||||
| GYFTA53-134~144Xn | 134~१४४ | 12 | 0 | 326 | ||||
| Fiber optic type | Attenuation （+20℃） | ब्यान्डविथ | Numerical aperture | Optical fiber cutoff wavelength | ||||
| @ 850NM | @ 1300NM | @ 1310NM | @ 1550NM | @ 850NM | @ 1300NM | |||
| G.652 | - | - | ≤ 0.36db / KM | ≤ 0.22DB / KM | - | - | - | ≤1260NM |
| G.655 | - | - | ≤ 0.40DB / KM | ≤ 0.23DB / KM | - | - | - | ≤1450nm |
| 50/125µm | ≤3.3DB / KM | ≤1.2dB/km | - | - | ≥0000zz · · · · | ≥0000zz · · · · | 0.200± 0.015 पहिले नै | - |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | - | - | ≥200mhz · किम | ≥0000zz · · · · | 0.275± 0.015 पहिले नै | - |
GYFTA53-38~42Xn Optic Cable Product Features
- Excellent mechanical properties and temperature characteristics: This cable is designed with materials that have outstanding mechanical strength and temperature resistance. This ensures its ability to withstand various environmental conditions and installation capabilities.
- High strength and hydrolysis resistance: The loose tube materials used in the cable have high strength and excellent hydrolysis resistance. This ensures the cable’s durability and lifespan even in challenging environments.
- Key fiber protection: The loose tube is filled with a specially formulated gel that provides critical protection for the fibers. This gel acts as a barrier to prevent moisture and other external factors that may damage the fibers.
- Compression resistance and flexibility: This cable is carefully designed to have excellent compression resistance, able to withstand external pressure without affecting its performance. साथै, it has flexibility, making it easier to handle and install.
- Waterproof performance: To ensure reliable waterproof performance, this cable employs multiple measures. These include a single non-metallic central strength member, loose tubes filled with special waterproof compounds, complete core filling, and the use of plastic-coated aluminum tape (एपीएल) as a moisture barrier.
- Enhanced moisture resistance: The GYFTA53 cable is also equipped with double-sided plastic-coated steel tape (बैज), significantly improving its moisture resistance. This feature helps prevent longitudinal water ingress in the cable, enhancing its overall reliability.
GYFTA53-38~42Xn Optic Cable And More Optic Cables
Center tube light armored optical cable (GYXS/GYXTW)
Loose tube twisted light armored fiber optic cable (जिड्स)
Loose tube twisted unarmored fiber optic cable (जनाइ)
Loose tube twisted non-metallic reinforced core unarmored flame-retardant optical cable (जिजी)
Loose tube twisted reinforced core armored flame-retardant optical cable (Gytza53)
Loose tube twisted non-metallic reinforced core armored flame-retardant optical cable (जिफ्ला 53333)
Loose tube twisted flame-retardant optical cable (Gytzs)
Loose tube twisted unarmored flame-retardant optical cable (जनाएजाजा)
Loose tube twisted non-metallic reinforced core optical cable (Cyfta53)
Loose tube twisted non-metallic reinforced core ordinary armored optical cable (Cyfty53)
Loose tube twisted non-metallic reinforced core unarmored optical cable (सँगै)
Loose tube twisted non-metallic reinforced core optical cable (जार)
Loose tube twisted non-metallic reinforced core unarmored optical cable (भान्ज दाई)
Loose tube twisted single steel wire armored optical cable (GyTa53 33)
Loose tube twisted reinforced armored optical cable (GyTa53)
Loose tube twisted ordinary armored optical cable (Gyty53)
GYFTA53-38~42Xn Optic Cable Product Applications
- Wind Power: Cold-region wind farms
- Outdoor Infrastructure: Overhead lines, प्रत्यक्ष रहाल, pipelines, and urban security monitoring
- Special Environments: Military communications, intelligent transportation systems
GYFTA53-38~42Xn Optic Cable Product Structure
