विवरण
GYFTA53-74~84Xn Optic Cable is Loose tube layer stranded non-metallic reinforced core armored optical cable
GYFTA53-74~84Xn Optic Cable Product Overview
The structure of GYFTA53 optical cable consists of a 250µm optical fiber placed into a loose tube made of high modulus material, which is filled with a waterproof compound. The center of the cable core contains a non-metallic reinforcement core (चालि), and for certain fiber counts, an additional layer of polyethylene (PE) is extruded outside the non-metallic reinforcement core. The loose tube (and filling rope) is twisted around the central reinforcement core to form a compact and round cable core, with gaps inside filled with water-blocking fillers. After longitudinally wrapping an aluminum tape (एपीएल), a layer of polyethylene inner sheath is extruded, and after longitudinally wrapping a double-sided coated steel tape (बैज), a polyethylene outer sheath is extruded to form the cable.
Optical cables, with their high bandwidth, low loss, long-distance transmission capabilities, and resistance to electromagnetic interference, have become an indispensable part of modern communication infrastructure. With the development of technologies such as 5G, the Internet of Things (IoT), and cloud computing, optical cables are playing an increasingly important role in building high-speed and reliable communication networks.

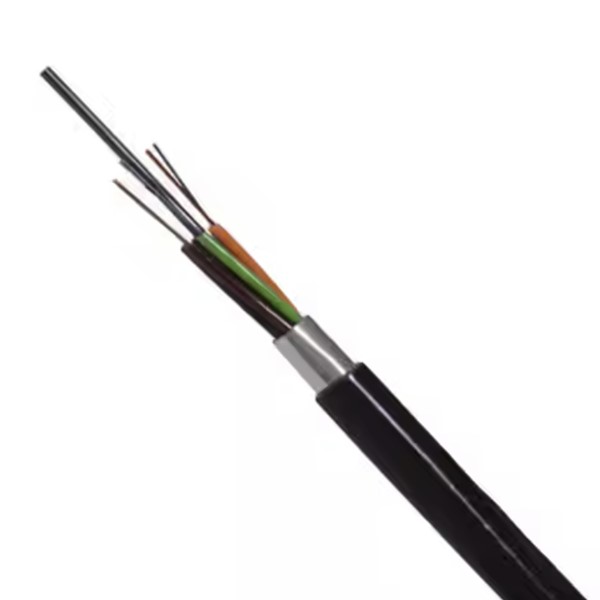

GYFTA53-74~84Xn Optic Cable Product Pictures
GYFTA53-74~84Xn Optic Cable Product Specifications
| Fiber cable model (in increments of 2 फाइबर) | Number of optical fiber tubes | Number of sleeves | Number of filling ropes | Reference optical cable weight (kg/km) | Allowable tensile force Long-term/short-term (एन) | Allowable crushing force long term/short term (N / 100mm) | Bending radius static/dynamic (mm) | |
| GYFTA53-2~6Xn | 2~6 | 1 | 7 | 228 | 1000/3000 | 1000/3000 | 12.5D / 25D | |
| GYFTA53-8~12Xn | 8~१२ | 2 | 6 | 228 | ||||
| GYFTA53-14~18Xn | 14~१८ | 3 | 5 | 228 | ||||
| GYFTA53-20~24Xn | 20~ २४ | 4 | 4 | 228 | ||||
| GYFTA53-26~30Xn | 26~३० | 5 | 3 | 228 | ||||
| GYFTA53-32~36Xn | 32~३६ | 6 | 2 | 228 | ||||
| GYFTA53-38~42Xn | 38~ 42 | 7 | 1 | 228 | ||||
| GYFTA53-44~48Xn | 44~ ४८ | 8 | 0 | 228 | ||||
| GYFTA53-50~60Xn | 50~60 | 5 | 3 | 240 | ||||
| GYFTA53-62~72Xn | 62~७२ | 6 | 2 | 240 | ||||
| GYFTA53-74~84Xn | 74~ ८४ | 7 | 1 | 240 | ||||
| GYFTA53-86~96Xn | 86~96 | 8 | 0 | 240 | ||||
| GYFTA53-98~108Xn | 98~१०८ | 9 | 1 | 276 | ||||
| GYFTA53-110~120Xn | 110~१२० | 10 | 0 | 276 | ||||
| GYFTA53-122~132Xn | 122~१३२ | 11 | 1 | 326 | ||||
| GYFTA53-134~144Xn | 134~१४४ | 12 | 0 | 326 | ||||
| Fiber optic type | Attenuation （+20℃） | ब्यान्डविथ | Numerical aperture | Optical fiber cutoff wavelength | ||||
| @ 850NM | @ 1300NM | @ 1310NM | @ 1550NM | @ 850NM | @ 1300NM | |||
| G.652 | - | - | ≤ 0.36db / KM | ≤ 0.22DB / KM | - | - | - | ≤1260NM |
| G.655 | - | - | ≤ 0.40DB / KM | ≤ 0.23DB / KM | - | - | - | ≤1450nm |
| 50/125µm | ≤3.3DB / KM | ≤1.2dB/km | - | - | ≥0000zz · · · · | ≥0000zz · · · · | 0.200± 0.015 पहिले नै | - |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | - | - | ≥200mhz · किम | ≥0000zz · · · · | 0.275± 0.015 पहिले नै | - |
GYFTA53-74~84Xn Optic Cable Product Features
- It has good mechanical properties and temperature characteristics.
- The loose tube material has excellent hydrolysis resistance and high strength.
- Special oil paste fills the tube, providing critical protection for the optical fibers.
- It has good compressive strength and flexibility.
- The following measures are taken to ensure the waterproof performance of the cable:
- A single non-metallic central reinforcement core
- The loose tube is filled with special waterproof compounds
- Full filling of the cable core
- Coated aluminum tape (एपीएल) moisture-proof layer
- Double-sided coated steel tape (बैज) to enhance the cable’s moisture resistance
- Good water-blocking materials to prevent longitudinal water penetration in the cable.

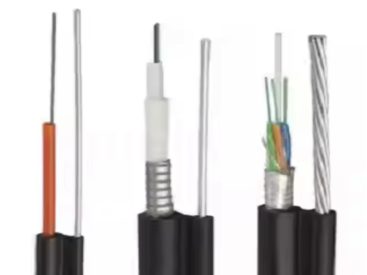

GYFTA53-74~84Xn Optic Cable Product and More Optic Cables
8-shaped optical cable (GYTC8A)
Central tube type light armored fiber optic ribbon cable (GYDXTW)
Central tube type flame-retardant cable (GYXTZW)
Central tube type non-metallic non-armored cable (GYFXY)
Central tube type non-armored cable (GYXY)
Central tube type light armored cable (GYXS/GYXTW)
Loose tube stranded light armored fiber optic ribbon cable (जिड्स)
Loose tube stranded non-armored fiber optic ribbon cable (जनाइ)
Loose tube stranded non-metallic reinforced core non-armored flame-retardant cable (जिजी)
Loose tube stranded reinforced core armored flame-retardant cable (Gytza53)
Loose tube stranded non-metallic reinforced core armored flame-retardant cable (जिफ्ला 53333)
Loose tube stranded flame-retardant cable (Gytzs)
Loose tube stranded non-armored flame-retardant cable (जनाएजाजा)
Loose tube stranded non-metallic reinforced core armored cable (Cyfta53)
Loose tube stranded non-metallic reinforced core ordinary armored cable (Cyfty53)
Loose tube stranded non-metallic reinforced core non-armored cable (सँगै)
GYFTA53-74~84Xn Optic Cable Product Applications
- Long-distance communication: Used for long-distance data transmission between countries and internationally.
- Metropolitan area network: Connects different network nodes within a city.
- Local area network: Used for high-speed data transmission in local networks such as businesses, विद्यालयहरू, and homes.
- Data center: Connects servers, storage devices, and network devices to achieve high-speed internal communication.

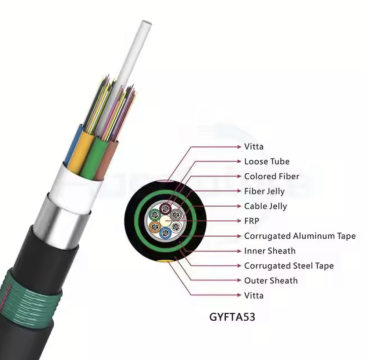

GYFTA53-74~84Xn Optic Cable Product Structure
