GYTZA-134~144Xn Optic Cable is Loose Tube Layer Stranded Non-armored Flame-retardant Optical Cable
GYTZA-134~144Xn Optic Cable Product Overview
GYTZA optical cable is a robust and versatile solution designed to meet the demands of outdoor communication networks, particularly in environments requiring flame-retardant performance. This cable features colored optical fibers housed in a loose tube made of high-modulus material, providing exceptional mechanical strength and hydrolysis resistance. The loose tube is filled with thixotropic gel, ensuring optimal fiber protection and water-blocking capabilities.
A flame-retardant outer sheath, extruded over longitudinally wrapped coated aluminum tape, delivers superior fire resistance and environmental protection. This innovative design ensures the cable’s safety and durability in challenging conditions, including areas with stringent fire safety requirements.

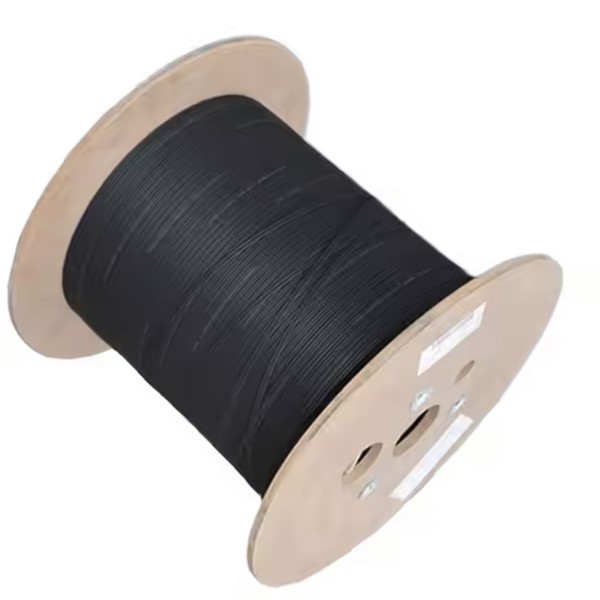

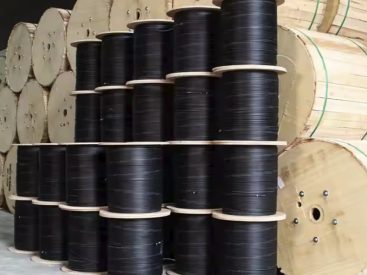

GYTZA-134~144Xn Optic Cable Product Pictures
GYTZA-134~144Xn Optic Cable Product Specifications
| Fiber cable model (in increments of 2 फाइबर) | Number of optical fiber tubes | Number of sleeves | Number of filling ropes | Reference optical cable weight (KG / KM) | Allowable tensile force Long-term/short-term (एन) | Allowable crushing force long term/short term (N / 100mm) | Bending radius static/dynamic (mm) | |
| GYTZA-2~6Xn | 2~6 | 1 | 4 | 101 | 600/1500 | 300/1000 | 10D/20D | |
| GYTZA-8~12Xn | 8~१२ | 2 | 3 | 101 | ||||
| GYTZA-14~18Xn | 14~१८ | 3 | 2 | 101 | ||||
| GYTZA-20~24Xn | 20~ २४ | 4 | 1 | 101 | ||||
| GYTZA-26~30Xn | 26~३० | 5 | 0 | 101 | ||||
| GYTZA-32~36Xn | 32~३६ | 6 | 0 | 111 | ||||
| GYTZA-38~48Xn | 38~ ४८ | 4 | 1 | 117 | ||||
| GYTZA-50~60Xn | 50~60 | 5 | 0 | 117 | ||||
| GYTZA-62~72Xn | 62~७२ | 6 | 0 | 144 | ||||
| GYTZA-74~84Xn | 74~ ८४ | 7 | 1 | 171 | ||||
| GYTZA-86~96Xn | 86~96 | 8 | 0 | 171 | ||||
| GYTZA-98~108Xn | 98~१०८ | 9 | 1 | 198 | ||||
| GYTZA-110~120Xn | 110~१२० | 10 | 0 | 198 | ||||
| GYTZA-122~132Xn | 122~१३२ | 11 | 1 | 229 | ||||
| GYTZA-134~144Xn | 134~१४४ | 12 | 0 | 229 | ||||
| GYTZA-146~216Xn | 146~216 | 13~१८ | 5~ 0 | 229 | ||||
| Fiber optic type | सुन्टानेती (20°C) | ब्यान्डविथ | Numerical aperture | Optical fiber cutoff wavelength | ||||
| @ 850NM | @ 1300NM | @ 1310NM | @ 1550NM | @ 850nm | @ 1300NM | |||
| G.652 | - | - | ≤ 0.36db / KM | ≤ 0.22DB / KM | - | - | - | ≤1260NM |
| G.655 | - | - | ≤ 0.40DB / KM | ≤ 0.23DB / KM | - | - | - | ≤1450nm |
| 50/125µm | ≤3.3DB / KM | ≤1.2dB/km | - | - | ≥0000zz · · · · | ≥0000zz · · · · | 0.200± 0.015 पहिले नै | - |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | - | - | ≥200mhz · किम | ≥0000zz · · · · | 0.275± 0.015 पहिले नै | - |
GYTZA-134~144Xn Optic Cable Product Features
• Very good mechanical and temperature properties
• The loose tube material itself has good hydrolysis resistance and high strength
• The tube is filled with a special paste to protect the optical fiber
• Specially designed tight cable structure to effectively prevent the casing from retracting
• Good compression resistance and softness
• Special jacket with excellent flame retardant properties
• The following measures are taken to ensure the waterproof performance of the cable:
– एकल तार केन्द्रले कोर सुदृढ पार्दै
– ढीलो ट्यूब एक विशेष वाटरप्रूफिंग कम्पाउन्डले भरिएको छ
– पूर्ण कोर भर्ने
– Plastic-coated aluminium tape (एपीएल) नमी बाधा

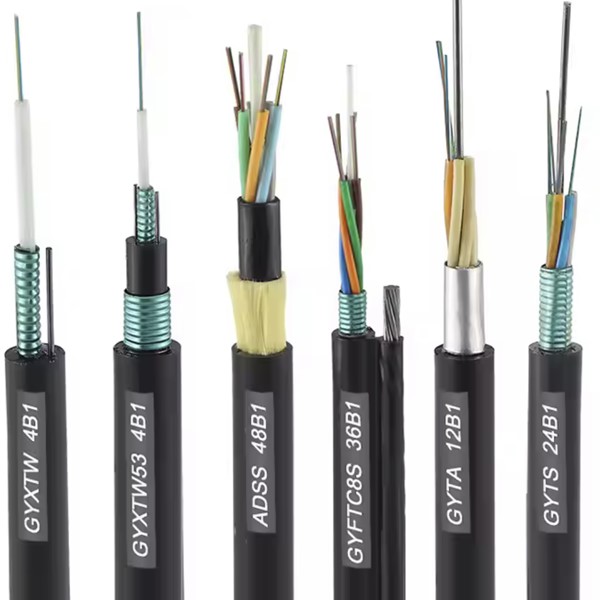

GYTZA-134~144Xn Optic Cable Product and More Optic Cables
Loose tube layer twisted non-metallic reinforced core armored cable (Cyfta53)
Loose tube layer twisted non-metallic reinforced core ordinary armored cable (Cyfty53)
Loose tube layer twisted non-metallic reinforced core non-armored cable (सँगै)
Loose tube layer twisted non-metallic reinforced core cable (जार)
Loose tube layer twisted non-metallic reinforced core non-armored cable (भान्ज दाई)
Loose tube layer twisted single thin steel wire armored cable (GyTa53 33)
Loose tube layer twisted reinforced armored cable (GyTa53)
Loose tube layer twisted ordinary armored cable (Gyty53)
Loose tube layer twisted light armored cable (व्यन्जन)
Loose tube layer twisted non-armored cable (GYTA)
GYTZA-134~144Xn Optic Cable Product Applications
- Communication Networks: Internet backbone, 5G base stations, interconnection of data centers.
- Broadcasting and Television: High-definition television signal transmission.
- Industry and Military: Automated control, radar systems, ship communication

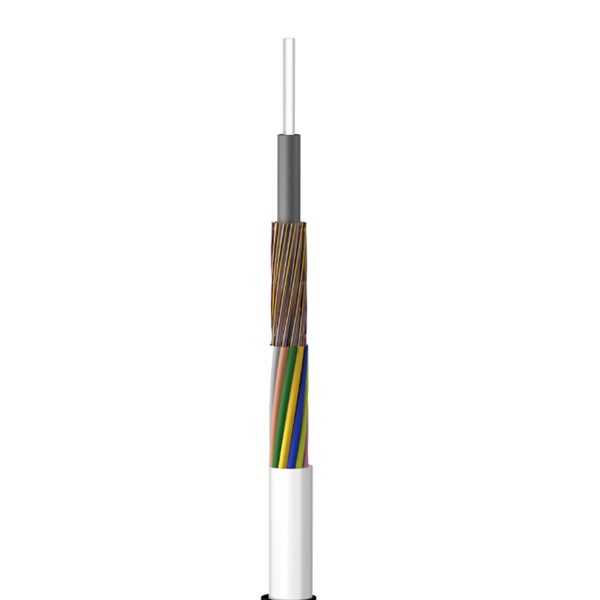

GYTZA-134~144Xn Optic Cable Product Structure
