Fiber Optic Splice Enclosure Horizontal Type 2 In 2 Out 48 Core
- Description
- Inquiry
- Attachment
Description
Fiber Optic Splice Enclosure Horizontal Type 2 In 2 Out 48 Core is a device designed for space and protection of fiber optic cables. Whether in an external plant or inside a building, the fiber cable closure will connect and store optical fibers safely.
Fiber Optic Splice Enclosure Horizontal Type 2 In 2 Out 48 Core Overview
Fiber Optic Splice Enclosure has excellent mechanical strength as well as a robust outer shell, which guarantees the joints have not been harmed from an unfriendly environment, makes it capable of providing protection to fiber lines and fiber cables.
Additionally, Horizontal Splice Enclosure is designed to protect fiber optic cable splicing and joints. They feature a rubberized seal that makes them both dust and weather resistant, they do not allow air or water leaks. These splice enclosures are ideal for outdoor use. These fiber outdoor splice enclosures can be either aerial mounted or used in underground applications. The operating temperatures for these splice enclosures range from -40°C to 85°C. Setup and installation is easy.

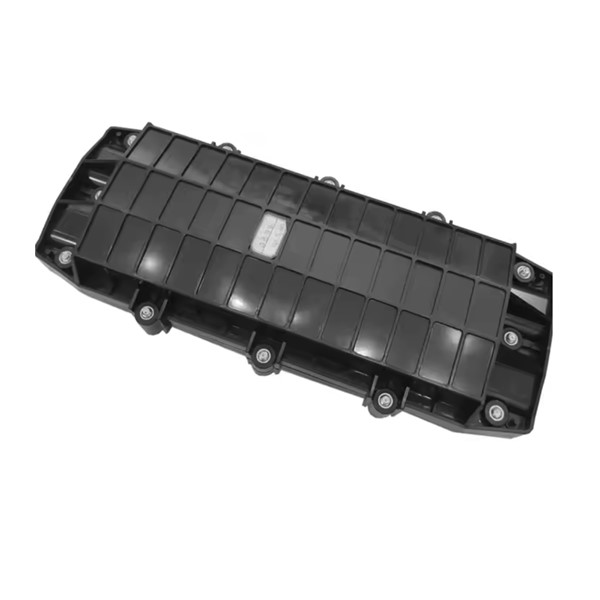

Fiber Optic Splice Enclosure Horizontal Type 2 In 2 Out 48 Core Pictures
Fiber Optic Splice Enclosure Horizontal Type 2 In 2 Out 48 Core Specifications
| Items | Parameter |
| Product Name | Fiber Optic Splice Enclosure Fiber Splice Closure Fiber Optic Joint Closure |
| Maximum Fiber Capacity | 48 Ports |
| Mounting Type | Aerial-mounted |
| Duct-mounted | |
| Underground | |
| Material | PC ABS |
| Seal Material | Self-adhesive rubber |
| Protection Class | IP68 |
| Fiber Cable Diameter | φ10~14mm |
| Inlet / Outlet Ports Number | 2 PCS/2 PCS |
| Weight | 1.87kg |
| Dimension | 410*170*77mm |
| Working Temperature | -40℃~65℃ |
| Relative Humidity | ≤85%(At 30℃) |
| Color | Black/White |
| Packing Dimension | 10 PCS/CTN, 480*360*510mm |
| Packaging Details | Per individual Inner 1pc small box and 20pc Outer cartons |
| Application | FTTH FTTB FTTX Network |
Fiber Optic Splice Enclosure Horizontal Type 2 In 2 Out 48 Core Features
- Fiber Optic Splice Closure main body uses the mechanical seal, is suitable for the Aerial and Pipeline installation.
- The closure body is designed with buckles around it, which can be opened and used repeatedly without screws, simple in structure and easy in operation.
- Endure harsh conditions such as vibration, impact, tensile cable distortion, and strong temperature changes.
- High-strength engineering plastic shell.
- It does not require special tools, easy to install, and open the duplicate.
Fiber Optic Splice Enclosure Horizontal Type 2 In 2 Out 48 Core and More Models
Fiber Optic Splice Enclosure Horizontal Type 2 In 2 Out 12 Core
Fiber Optic Splice Enclosure Horizontal Type 2 In 2 Out 24 Core
Fiber Optic Splice Enclosure Horizontal Type 2 In 2 Out 48 Core
Fiber Optic Splice Enclosure Horizontal Type 2 In 2 Out 72 Core
Fiber Optic Splice Enclosure Horizontal Type 2 In 2 Out 96 Core
Fiber Optic Splice Enclosure Horizontal Type 2 In 2 Out 144 Core
Fiber Optic Splice Enclosure Horizontal Type 3 In 3 Out 72 Core
Fiber Optic Splice Enclosure Horizontal Type 3 In 3 Out 96 Core
Fiber Optic Splice Enclosure Horizontal Type 3 In 3 Out 144 Core
Fiber Optic Splice Enclosure Horizontal Type 4 In 4 Out 288 Core
Fiber Optic Splice Enclosure Horizontal Type 2 In 2 Out 48 Core Applications
- FTTX
- CATV networks
- Optical fiber communication
- Fiber optic network convergence
- Optical fiber access network
- FTTH access network
- Telecommunication networks
- Data communications networks
- Local area networks
Fiber Optic Splice Enclosure Horizontal Type 2 In 2 Out 48 Core Topology
