Description
Fiber Optic Splice Enclosure Horizontal Type 3 In 3 Out 72 Core is also called Fiber optic closure, and fiber optic splicing closures. It is a device used to provide space and protection for fiber optic cables spliced together. The fiber optic closure connects and stores optical fibers safely either in the outside plant or indoor buildings.
Fiber Optic Splice Enclosure Horizontal Type 3 In 3 Out 72 Core Overview
Fiber Optic Splice Enclosure can provide protection for the fiber joint and the fiber cables since they have excellent mechanical strength and strong out shell, which ensures the joints are not damaged by the hostile environment.
Horizontal type fiber closure is like a flat or cylindrical case. This type of fiber splice closure is the most commonly used one in mounted aerials or buried underground. Horizontal type fiber optic closure usually contains one or more fiber splice trays to provide space and protection for fiber optic splices. Fiber splice trays used in different fiber optic splice closures may have different designs and fiber counts. The common fiber counts of flat fiber splice closure are 12 and 24 fibers.

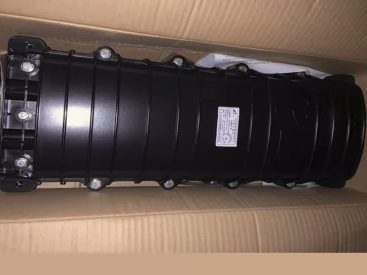

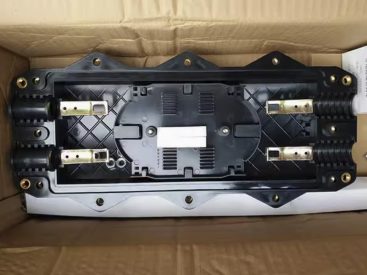

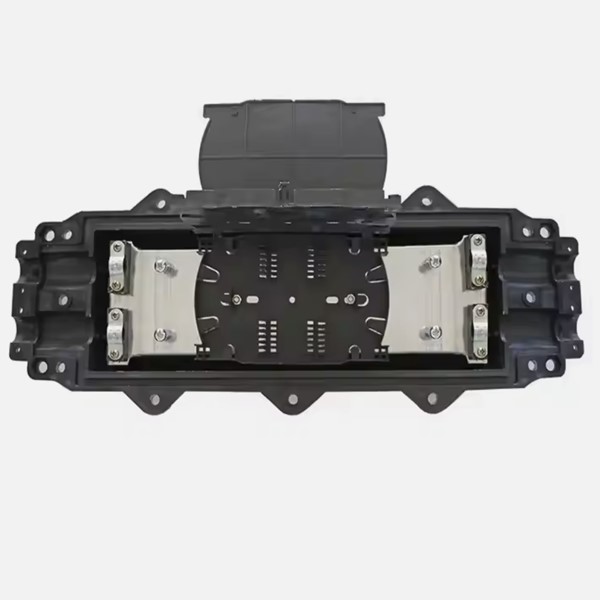

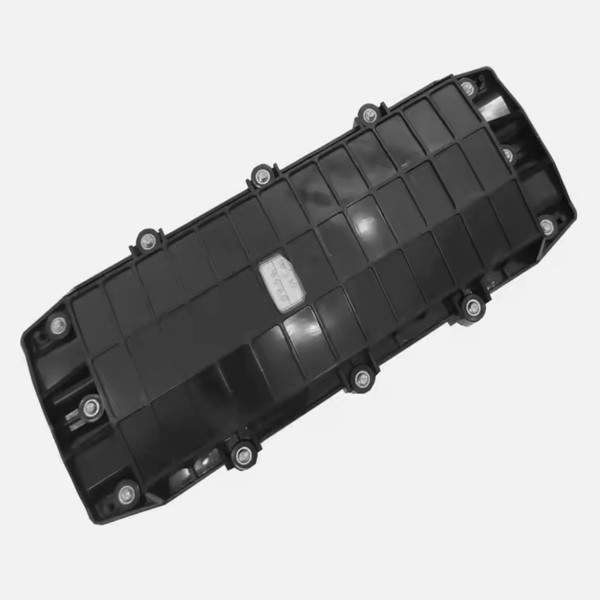

Fiber Optic Splice Enclosure Horizontal Type 3 In 3 Out 72 Core Pictures
Fiber Optic Splice Enclosure Horizontal Type 3 In 3 Out 72 Core Specifications
| Items | Parameter |
| Product Name | Fiber Optic Splice Enclosure Fiber Splice Closure Fiber Optic Joint Closure |
| Maximum Fiber Capacity | 72Ports |
| Mounting Type | Aerial-mounted Duct-mounted Underground |
| Model Number | Outdoor fiber splice enclosure box |
| Use | FTTH Network FTTX CATV |
| Fibers cores | 12/24/48/96/72/144/196 |
| Structure types | Horizontal type |
| Application | FTTH FTTB FTTX Network |
| Gross weight | 5KG |
| Operating/Storage Temperature | -20°C~+80°C |
| Color | Black |
| Material | ABS+PC/Plastic |
Fiber Optic Splice Enclosure Horizontal Type 3 In 3 Out 72 Core Features
- V and Chemical Resistant
- Dust and Waterproof design
- Ideal for Aerial and Underground applications
- Easy setup and installation
- Material: Polycarbonate Plastic
Fiber Optic Splice Enclosure Horizontal Type 3 In 3 Out 72 Core and More Models
Fiber Optic Splice Enclosure Horizontal Type 2 In 2 Out 12 Core
Fiber Optic Splice Enclosure Horizontal Type 2 In 2 Out 24 Core
Fiber Optic Splice Enclosure Horizontal Type 2 In 2 Out 48 Core
Fiber Optic Splice Enclosure Horizontal Type 2 In 2 Out 72 Core
Fiber Optic Splice Enclosure Horizontal Type 2 In 2 Out 96 Core
Fiber Optic Splice Enclosure Horizontal Type 2 In 2 Out 144 Core
Fiber Optic Splice Enclosure Horizontal Type 3 In 3 Out 72 Core
Fiber Optic Splice Enclosure Horizontal Type 3 In 3 Out 96 Core
Fiber Optic Splice Enclosure Horizontal Type 3 In 3 Out 144 Core
Fiber Optic Splice Enclosure Horizontal Type 4 In 4 Out 288 Core
Fiber Optic Splice Enclosure Horizontal Type 3 In 3 Out 72 Core Applications
- FTTH Access Network
- Telecommunication Networks
- CATV Networks
- Data communications Networks
- Local Area Networks Joint Point
Fiber Optic Splice Enclosure Horizontal Type 3 In 3 Out 72 Core Topology
