Fiber Optic Splice Enclosure Horizontal Type 3 In 3 Out 96 Core

Description

Fiber Optic Splice Enclosure Horizontal Type 3 In 3 Out 96 Core is designed to be waterproof and dustproof. They have good adaptability and compression resistance. It has 3 input ports and 3 output ports providing space for 96 fiber splices.

Fiber Optic Splice Enclosure Horizontal Type 3 In 3 Out 96 Core Overview

Fiber Optic Splice Enclosure, also known as optical cable splice closure box and gun barrel, is the place where the end of the optical cable is accessed, and then connected to the optical switch through the optical fiber jumper. The product is designed to prevent the aging of materials caused by heat, cold, light, oxygen and microorganisms in nature, and have excellent mechanical strength. The solid fiber optic splice closure shell and the main structural parts can withstand harsh environmental changes, and at the same time play a flame retardant, waterproof role, so that vibration, impact, optical cable stretching, twisting, etc. are protected.

A horizontal splice enclosure is a device designed for space and protection of fiber optic cables is used to assemble them. Whether in an external plant or inside a building, the fiber cable closure will connect and store optical fibers safely. The fact that it has excellent mechanical strength as well as a robust outer shell, which guarantees the joints have not been harmed from an unfriendly environment, makes it capable of providing protection to fiber lines and fiber cables.

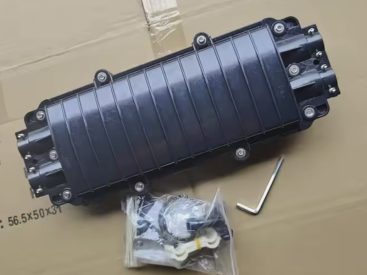

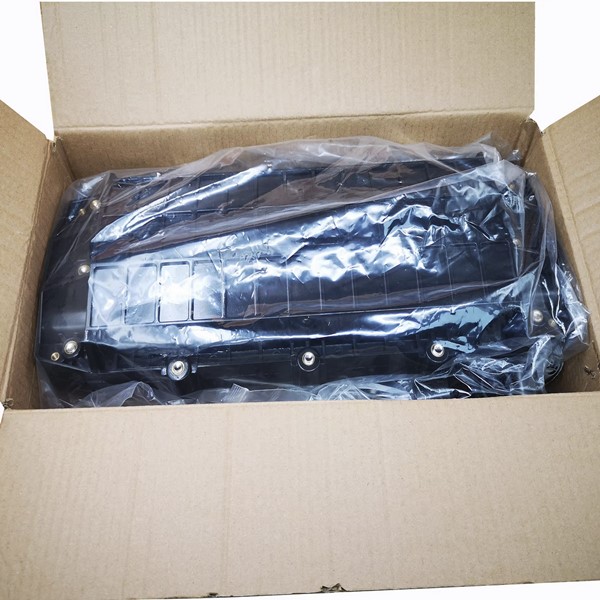

Fiber Optic Splice Enclosure Horizontal Type 3 In 3 Out 96 Core Product Pictures

Fiber Optic Splice Enclosure Horizontal Type 3 In 3 Out 96 Core Specifications

Fiber Optic Splice Enclosure Horizontal Type 3 In 3 Out 96 Core Features

• Strengthen Half design with mechanical sealing structure
• High quality industrial plastic body material
• 4 round holes for cable entrance, 3 in 3 out.
• Suitable for cable diameter 8mm-16.5mm
• Support aerial, underground, pipe line, man holes, hand holes
• Protection level reaches IP68
• Replaceable high quality rubber seal for repeatedly opening.
• Maximum capacity: 96 fibers.
• Number of splice trays: 4 pcs x 24F

Fiber Optic Splice Enclosure Horizontal Type 3 In 3 Out 96 Core Applications

• FTTX
• CATV networks
• Optical fiber communication
• Fiber optic network convergence
• Optical fiber access network
• Widely used in FTTH access network
• Telecommunication networks
• Data communications networks
• Local area networks
• Aerial, Direct buried, underground, pipeline, hand-holes, duct mounting, wall mounting

Fiber Optic Splice Enclosure Horizontal Type 3 In 3 Out 96 Core and More Models

Fiber Optic Splice Enclosure Horizontal Type 2 In 2 Out 12 Core
Fiber Optic Splice Enclosure Horizontal Type 2 In 2 Out 24 Core
Fiber Optic Splice Enclosure Horizontal Type 2 In 2 Out 48 Core
Fiber Optic Splice Enclosure Horizontal Type 2 In 2 Out 72 Core
Fiber Optic Splice Enclosure Horizontal Type 2 In 2 Out 96 Core
Fiber Optic Splice Enclosure Horizontal Type 2 In 2 Out 144 Core
Fiber Optic Splice Enclosure Horizontal Type 3 In 3 Out 72 Core
Fiber Optic Splice Enclosure Horizontal Type 3 In 3 Out 96 Core
Fiber Optic Splice Enclosure Horizontal Type 3 In 3 Out 144 Core
Fiber Optic Splice Enclosure Horizontal Type 4 In 4 Out 288 Core

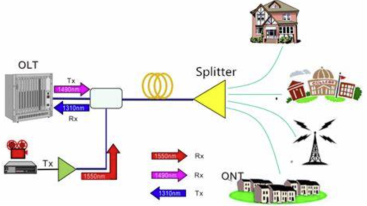

Fiber Optic Splice Enclosure Horizontal Type 3 In 3 Out 96 Core Topology
