Description
Fiber Optic Splice Enclosure Vertical Type 1 In 2 Out 12 Core is used to protect stripped fiber optic cable and fiber optic splices from the environment, available for indoor as well as outdoor mounting.
Fiber Optic Splice Enclosure Vertical Type 1 In 2 Out 12 Core Overview
Vertical type fiber optic splice closures look like a dome, thus they are also called dome fiber optic splice closure. They meet the same specification as the horizontal types.
Vertical fiber optic splice closures are made of excellent engineering plastics, they are with 1inlet/outlet ports, 2inlet/outlet ports, 3inlet/outlet ports types, fitting different fiber optic core numbers. The vertical fiber optic splice closure is used in CATV, telecommunications and fiber optic networks.
Fiber splice closures accept both Ribbon Cable and round fiber cables. Each type (ribbon or round cable) fits respective requirement of different fiber splicing counts. They are widely used in optic telecommunication systems. FiberStore offers fiber optic splice closure, vertical, horizontal, dome, from 2 cores to 240 cores maximum, with inside fiber optic splice trays accessories like fusion splice sleeves.

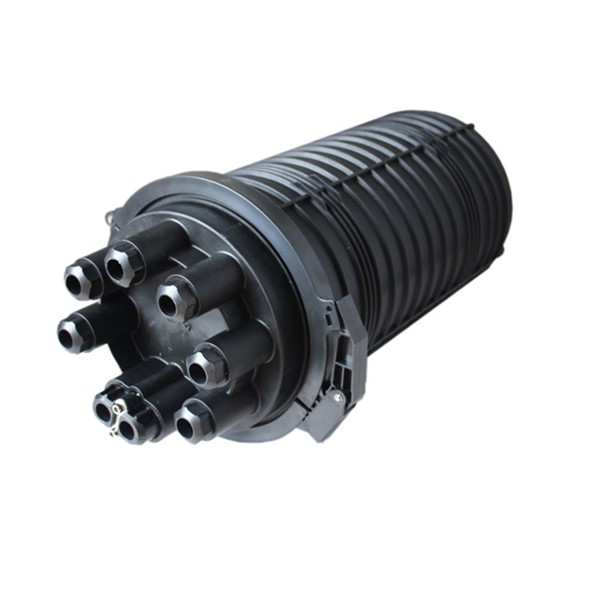

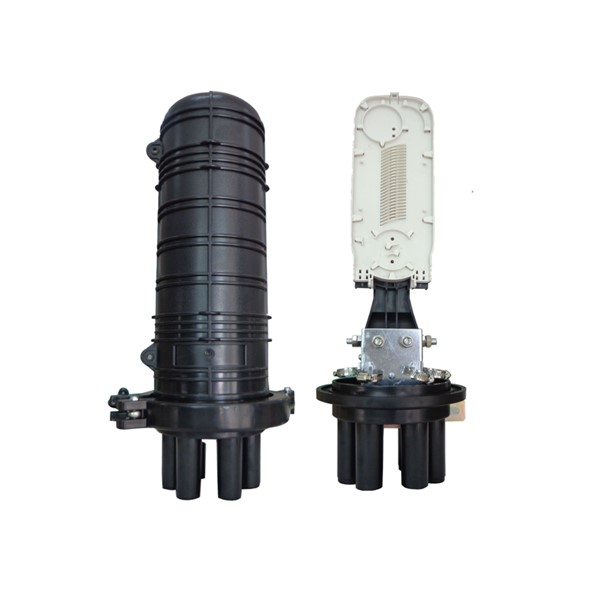

Fiber Optic Splice Enclosure Vertical Type 1 In 2 Out 12 Core Pictures
Fiber Optic Splice Enclosure Vertical Type 1 In 2 Out 12 Core Specifications
| Items | Parameter |
| Product Name | Fiber Optic Splice Enclosure Fiber Splice Closure Fiber Optic Joint Closure |
| Type | Vertical |
| Maximum Fiber Capacity | 12 Ports |
| Mounting Type | Aerial-mounted Duct-mounted Underground |
| Material | PC |
| Seal Material | Self-adhesive rubber |
| Protection Class | IP68 |
| Fiber Cable Diameter | φ10~14mm |
| Inlet / Outlet Ports Number | 2 PCS/2 PCS |
| Weight | 1.87kg |
| Dimension | 410*170*77mm |
| Working Temperature | -40℃~65℃ |
| Relative Humidity | ≤85%(At 30℃) |
| Color | Black |
| Packing Dimension | 10 PCS/CTN, 480*360*510mm |
| Packing Weight | 18.8kg |
| Packaging Details | Per individual Inner 1pc small box and 20pc Outer cartons |
| Application | FTTH FTTB FTTX Network |
Fiber Optic Splice Enclosure Vertical Type 1 In 2 Out 12 Core Features
- The box add aging-resistant in imported high tensile construction plastic out-faster is made up of stainless steel
- Overlap structure in splicing tray easy to install
- Suitable for ordinary fiber and ribbon fiber
- Perfect leak proofness and fine function
- Perfect and reliable sealing operations
- Fiber-bending radium guaranteed more than 40mm
- Full accessories for convenient operations
- Fiber optic splice closure can be used repeatedly
- High reliability
- For aerial, and direct buried applications
Fiber Optic Splice Enclosure Vertical Type 1 In 2 Out 12 Core Applications
- FTTX
- CATV networks
- Optical fiber communication
- Fiber optic network convergence
- Optical fiber access network
- Widely used in FTTH access network
- Telecommunication networks
- Data communications network
Fiber Optic Splice Enclosure Vertical Type 1 In 2 Out 12 Core and More Models
Fiber Optic Splice Enclosure Vertical Type 1 In 2 Out 12 Core
Fiber Optic Splice Enclosure Vertical Type 1 In 3 Out 12 Core
Fiber Optic Splice Enclosure Vertical Type 1 In 3 Out 24 Core
Fiber Optic Splice Enclosure Vertical Type 1 In 3 Out 48 Core
Fiber Optic Splice Enclosure Vertical Type 1 In 4 Out 72 Core
Fiber Optic Splice Enclosure Vertical Type 1 In 4 Out 96 Core
Fiber Optic Splice Enclosure Vertical Type 1 In 4 Out 144 Core
