SKU: GYTZA53-32~36Xn Optic Cable Category: Tags: ,

Description

GYTZA53-32~36Xn Optic Cable is Loose sleeve layer stranded reinforced core armored flame retardant optical cable

GYTZA53-32~36Xn Optic Cable Product Overview

GYTZA53 The structure of the fiber optic cable is that a 250μm optical fiber is sleeved into a loose tube made of high–modulus material, which is filled with a waterproof compound. In the center of the core is a metal reinforcing core, and for some core cables, a layer of polyethylene (PE) is squeezed out of the metal reinforcing core. The loose tube and infill rope are twisted around the central reinforcing core to form a compact and round core, and the gaps within the core are filled with water-blocking filling. The plastic-coated aluminum strip (APL) is squeezed with a layer of polyethylene inner sheath after longitudinal wrapping, and the flame-retardant outer sheath is extruded after the double-sided plastic-coated steel tape (PSP) is longitudinally wrapped.

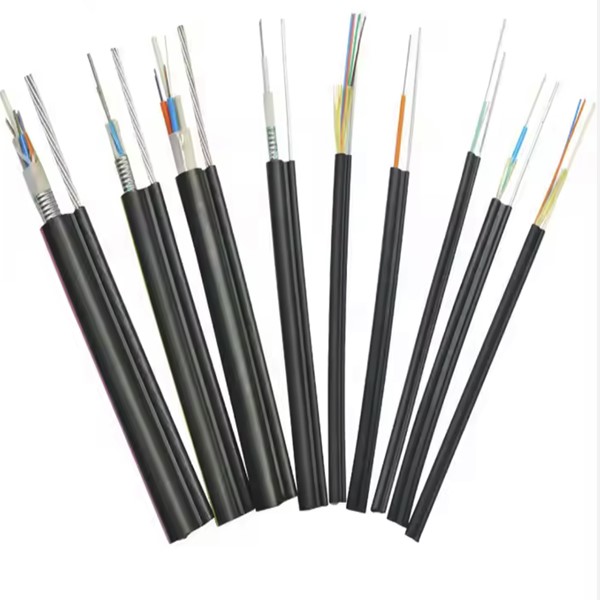

GYTZA53-32~36Xn Optic Cable Product Pictures

GYTZA53-32~36Xn Optic Cable price ycictGYTZA53-32~36Xn Optic Cable specs ycict

GYTZA53-32~36Xn Optic Cable price and specs ycictGYTZA53-32~36Xn Optic Cable

GYTZA53-32~36Xn Optic Cable Product Specifications

Fiber optic cable model
(in 2-fiber increments)		 Number of fibers Number of casings Number of infill ropes Reference cable weight (kg/km) Tensile force is allowed
Long-term/short-term
(N)		 Allowable squashing force
Long-term/short-term
(N/100mm)		 Bend radius
Static/Dynamic
(mm)
GYTZA53-2~6Xn 2~6 1 5 217 1000/3000 1000/3000 12.5D/25D
GYTZA53-8~12Xn 8~12 2 4 217
GYTZA53-14~18Xn 14~18 3 3 217
GYTZA53-20~24Xn 20~24 4 2 217
GYTZA53-26~30Xn 26~30 5 1 217
GYTZA53-32~36Xn 32~36 6 0 217
GYTZA53-38~48Xn 38~48 4 1 235
GYTZA53-50~60Xn 50~60 5 0 235
GYTZA53-62~72Xn 62~72 6 0 250
GYTZA53-74~84Xn 74~84 7 1 286
GYTZA53-86~96Xn 86~96 8 0 286
GYTZA53-98~108Xn 98~108 9 1 330
GYTZA53-110~120Xn 110~120 10 0 330
GYTZA53-122~132Xn 122~132 11 1 366
GYTZA53-134~144Xn 134~144 12 0 366
GYTZA53-146~216Xn 146~216 13~18 5~0 366
Fiber type Attenuation （+20℃） Bandwidth Numerical aperture Fiber optic cable cut-off wavelength
@850nm @1300nm @1310nm @1550nm @850nm @1300nm
G.652 — — ≤0.36dB/km ≤0.22dB/km — — — ≤1260nm
G.655 — — ≤0.40dB/km ≤0.23dB/km — — — ≤1450nm
50/125µm ≤3.3dB/km ≤1.2dB/km — — ≥500MHz·km ≥500MHz·km 0.200±0.015 NA —
62.5/125µm ≤3.5dB/km ≤1.2dB/km — — ≥200MHz·km ≥500MHz·km 0.275±0.015 NA —

GYTZA53-32~36Xn Optic Cable Product Features

  • The loose tube material has good hydrolysis resistance and side pressure resistance. The loose tube is filled with thixotropic water-blocking fiber paste to buffer and protect the optical fiber and realize the full-section water blocking in the loose tube.
  • Precise control of the residual length of the fiber in the loose tube and the residual length of the cable core structure ensures that the cable meets the tensile performance and temperature characteristics required by the product standard.
  • The water-blocking fiber paste and water-blocking cable paste realize the full-section water blocking of the internal gaps of the optical cable structure and ensure the longitudinal water-blocking performance of the optical cable. Plastic-coated aluminum strips and plastic-coated steel strips improve the moisture retention capacity of the fiber optic cable and prevent moisture from the outside of the fiber optic cable from penetrating into the cable core.
  • The LSZH outer sheath has the performance of ultraviolet radiation resistance and environmental stress cracking resistance, which ensures the service life of the optical cable.
  • LSZH sheath has excellent flame retardant properties.

GYTZA53-32~36Xn Optic Cable Product and More Optic Cables

Loose sleeve stranded light armored fiber strip cable (GYDTS)
Stranded loose jacket unarmoured fiber optic cable (GYDTA)
Stranded Loose Jacket Non-Metallic Reinforced Core Non-Armoured Flame Retardant Fiber Optic Cable (GYFTZY)
Loose sleeve stranded reinforced core armored flame retardant optical cable(GYTZA53)
Loose sleeve stranded non-metallic reinforced core armored flame retardant fiber optic cable (GYFTZA53)
Stranded Flame Retardant Fiber Optic Cable (GYTZS)
Stranded loose jacket non-armoured flame retardant fiber optic cable (GYTZA)
Stranded loose sleeve non-metallic reinforced core armored fiber optic cable (GYFTA53)
Stranded non-metallic reinforcing core plain armored fiber optic cable (GYFTY53)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (GYFTA)
Loose sleeve stranded non-metallic reinforced core optical cable (GYHTY)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (GYFTY)
Loose sleeve stranded single thin round steel wire armored fiber optic cable (GYTA53 33)

GYTZA53-32~36Xn Optic Cable Product Applications

  • Petroleum sector
  • Subway
  • Tunnel
  • Electricity, long-distance communication and inter-office communication

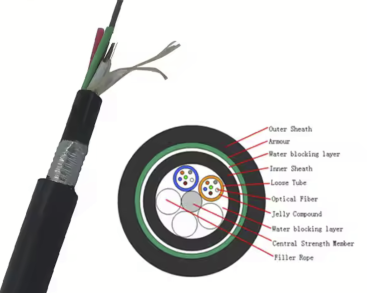

GYTZA53-32~36Xn Optic Cable Product Structure

GYTZA53-32~36Xn Optic Cable Structure
