SKU: GYTZA53-86~96Xn Optic Cable Category: Tags: ,

Description

GYTZA53-86~96Xn Optic Cable is Loose sleeve layer stranded reinforced core armored flame retardant optical cable

GYTZA53-86~96Xn Optic Cable Product Overview

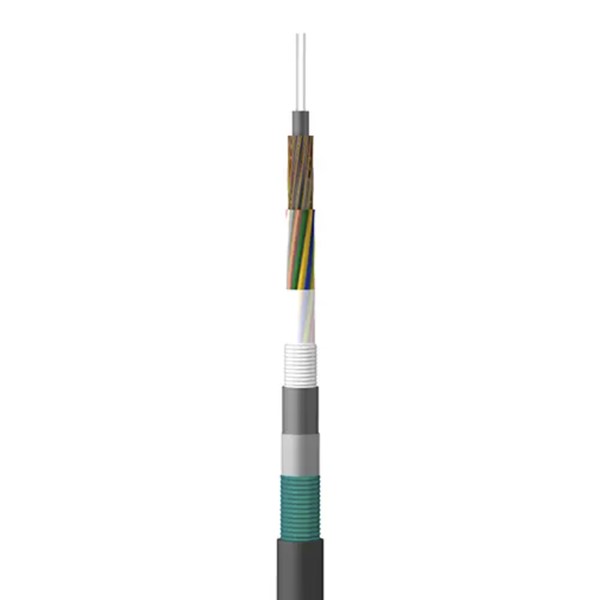

GYTZA53 The structure of the fiber optic cable is that a 250μm optical fiber is sleeved into a loose tube made of high–modulus material, which is filled with a waterproof compound. In the center of the core is a metal reinforcing core, and for some core cables, a layer of polyethylene (PE) is squeezed out of the metal reinforcing core. The loose tube and infill rope are twisted around the central reinforcing core to form a compact and round core, and the gaps within the core are filled with water-blocking filling. The plastic-coated aluminum strip (APL) is squeezed with a layer of polyethylene inner sheath after longitudinal wrapping, and the flame-retardant outer sheath is extruded after the double-sided plastic-coated steel tape (PSP) is longitudinally wrapped.
Optical fiber communication is one of the important ways of modern information transmission. It has the advantages of large capacity, long relay distance, good confidentiality, no electromagnetic interference and copper saving

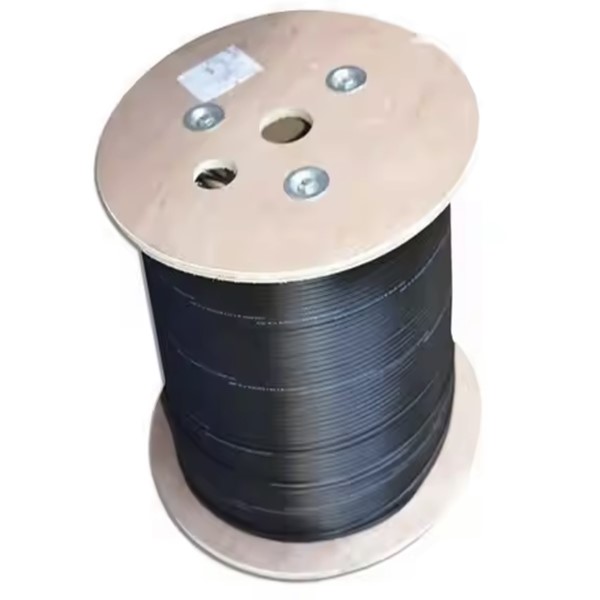

GYTZA53-86~96Xn Optic Cable Product Pictures

GYTZA53-86~96Xn Optic Cable specs ycictGYTZA53-86~96Xn Optic Cable price and specs ycict

GYTZA53-86~96Xn Optic Cable ycictGYTZA53-86~96Xn Optic Cable GYTZA53 YCICT

GYTZA53-86~96Xn Optic Cable Product Specifications

Fiber optic cable model
(in 2-fiber increments)		 Number of fibers Number of casings Number of infill ropes Reference cable weight (kg/km) Tensile force is allowed
Long-term/short-term
(N)		 Allowable squashing force
Long-term/short-term
(N/100mm)		 Bend radius
Static/Dynamic
(mm)
GYTZA53-2~6Xn 2~6 1 5 217 1000/3000 1000/3000 12.5D/25D
GYTZA53-8~12Xn 8~12 2 4 217
GYTZA53-14~18Xn 14~18 3 3 217
GYTZA53-20~24Xn 20~24 4 2 217
GYTZA53-26~30Xn 26~30 5 1 217
GYTZA53-32~36Xn 32~36 6 0 217
GYTZA53-38~48Xn 38~48 4 1 235
GYTZA53-50~60Xn 50~60 5 0 235
GYTZA53-62~72Xn 62~72 6 0 250
GYTZA53-74~84Xn 74~84 7 1 286
GYTZA53-86~96Xn 86~96 8 0 286
GYTZA53-98~108Xn 98~108 9 1 330
GYTZA53-110~120Xn 110~120 10 0 330
GYTZA53-122~132Xn 122~132 11 1 366
GYTZA53-134~144Xn 134~144 12 0 366
GYTZA53-146~216Xn 146~216 13~18 5~0 366
Fiber type Attenuation （+20℃） Bandwidth Numerical aperture Fiber optic cable cut-off wavelength
@850nm @1300nm @1310nm @1550nm @850nm @1300nm
G.652 — — ≤0.36dB/km ≤0.22dB/km — — — ≤1260nm
G.655 — — ≤0.40dB/km ≤0.23dB/km — — — ≤1450nm
50/125µm ≤3.3dB/km ≤1.2dB/km — — ≥500MHz·km ≥500MHz·km 0.200±0.015 NA —
62.5/125µm ≤3.5dB/km ≤1.2dB/km — — ≥200MHz·km ≥500MHz·km 0.275±0.015 NA —

GYTZA53-86~96Xn Optic Cable Product Features

  • Accurate process control ensuring good mechanical and temperature performances
  • The material of loose tubes with good hydrolysis resistance and relatively high strength
  • LSZH sheath ensuring good flame-retardant performance
  • Water resistance of optical cable is ensured by the following measures
  • Special water-blocking compound filled in loose tubes
  • Laminated aluminum tape armor
  • Water-blocking material ensuring longitudinal water resistance

GYTZA53-86~96Xn Optic Cable Product and More Optic Cables

Loose sleeve stranded non–metallic reinforced core armored flame retardant fiber optic cable (GYFTZA53)
Stranded Flame Retardant Fiber Optic Cable (GYTZS)
Stranded loose jacket non-armoured flame retardant fiber optic cable (GYTZA)
Stranded loose sleeve non-metallic reinforced core armored fiber optic cable (GYFTA53)
Stranded non-metallic reinforcing core plain armored fiber optic cable (GYFTY53)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (GYFTA)
Loose sleeve stranded non-metallic reinforced core optical cable (GYHTY)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (GYFTY)
Loose sleeve stranded single thin round steel wire armored fiber optic cable (GYTA53 33)
Loose Sleeve Stranded Reinforced Armoured Fiber Optic Cable(GYTA53)
Loose sleeve stranded ordinary armored fiber optic cable(GYTY53)

GYTZA53-86~96Xn Optic Cable Product Applications

  • Outdoor Duct Installations:

The cable’s robust construction and moisture-proof aluminum tape layer make it ideal for duct installations exposed to environmental challenges such as water ingress and temperature fluctuations.

  • Campus and Enterprise Networks:

Suitable for linking large-scale campuses or enterprise facilities where fire safety standards must be strictly observed.

  • Rural and Remote Areas:

Can be used in rural or remote outdoor networks that require long-distance connectivity with reliable water-blocking and mechanical performance.

  • Emergency Communication Networks:

Suitable for emergency response communication systems, where reliability under extreme conditions and flame resistance are vital.

  • Public Infrastructure Projects:

Frequently used in public infrastructure projects such as smart cities, highways, and transportation hubs, where fire safety and environmental durability are prioritized.

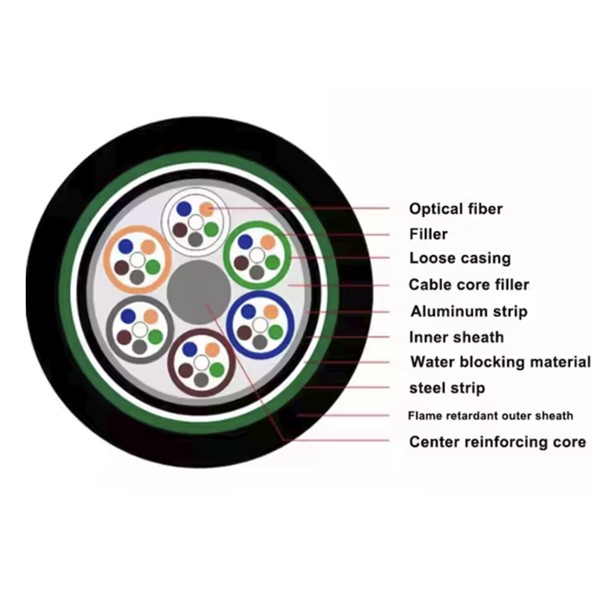

GYTZA53-86~96Xn Optic Cable Product Structure

GYTZA53-86~96Xn Optic Cable structure
