GYTZA53-98~108Xn Optic Cable

Description

GYTZA53-98~108Xn Optic Cable is Loose sleeve stranded reinforced core armored flame retardant optical cable, suitable for pipelines, overhead, direct burial

GYTZA53-98~108Xn Optic Cable Product Overview

GYTZA53 The structure of the fiber optic cable is that a 250μm optical fiber is sleeved into a loose tube made of high-modulus material, which is filled with a waterproof compound. In the center of the core is a metal reinforcing core, and for some core cables, a layer of polyethylene (PE) is squeezed out of the metal reinforcing core. The loose tube and infill rope are twisted around the central reinforcing core to form a compact and round core, and the gaps within the core are filled with water-blocking filling. The plastic-coated aluminum strip (APL) is squeezed with a layer of polyethylene inner sheath after longitudinal wrapping, and the flame-retardant outer sheath is extruded after the double-sided plastic-coated steel tape (PSP) is longitudinally wrapped.
Optical cable is mainly made up of optical fiber (optical fiber) and plastic protective sleeve and plastic sheath, it is a certain number of optical fibers according to a certain way to form the cable core, the outer sheath, some also cover the outer sheath, to realize a kind of communication line of optical signal transmission.

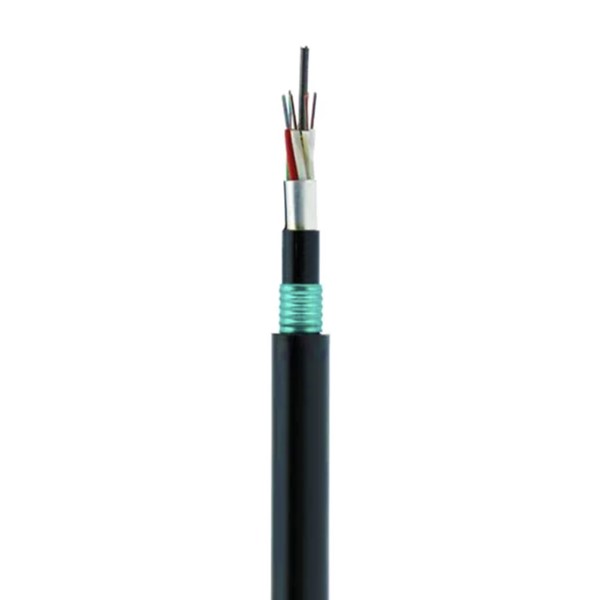

GYTZA53-98~108Xn Optic Cable Product Pictures

GYTZA53-98~108Xn Optic Cable Product Specifications

Fiber optic cable model (in 2-fiber increments)	Number of fibers	Number of casings	Number of infill ropes	Reference cable weight (kg/km)	Tensile force is allowed Long-term/short-term (N)	Allowable squashing force Long-term/short-term (N/100mm)	Bend radius Static/Dynamic (mm)
GYTZA53-2~6Xn	2~6	1	5	217	1000/3000	1000/3000	12.5D/25D
GYTZA53-8~12Xn	8~12	2	4	217
GYTZA53-14~18Xn	14~18	3	3	217
GYTZA53-20~24Xn	20~24	4	2	217
GYTZA53-26~30Xn	26~30	5	1	217
GYTZA53-32~36Xn	32~36	6	0	217
GYTZA53-38~48Xn	38~48	4	1	235
GYTZA53-50~60Xn	50~60	5	0	235
GYTZA53-62~72Xn	62~72	6	0	250
GYTZA53-74~84Xn	74~84	7	1	286
GYTZA53-86~96Xn	86~96	8	0	286
GYTZA53-98~108Xn	98~108	9	1	330
GYTZA53-110~120Xn	110~120	10	0	330
GYTZA53-122~132Xn	122~132	11	1	366
GYTZA53-134~144Xn	134~144	12	0	366
GYTZA53-146~216Xn	146~216	13~18	5~0	366
Fiber type	Attenuation （+20℃）				Bandwidth		Numerical aperture	Fiber optic cable cut-off wavelength
	@850nm	@1300nm	@1310nm	@1550nm	@850nm	@1300nm
G.652	—	—	≤0.36dB/km	≤0.22dB/km	—	—	—	≤1260nm
G.655	—	—	≤0.40dB/km	≤0.23dB/km	—	—	—	≤1450nm
50/125µm	≤3.3dB/km	≤1.2dB/km	—	—	≥500MHz·km	≥500MHz·km	0.200±0.015 NA	—
62.5/125µm	≤3.5dB/km	≤1.2dB/km	—	—	≥200MHz·km	≥500MHz·km	0.275±0.015 NA	—

GYTZA53-98~108Xn Optic Cable Product Features

• Precise Process Control:

Ensures exceptional mechanical stability and reliable performance across a wide range of temperatures, making the cable robust in diverse environments.

• Hydrolysis-Resistant Loose Tube Material:

Manufactured using high-strength, hydrolysis-resistant material, providing long-lasting durability and optimal protection for the optical fibers.

• LSZH (Low Smoke Zero Halogen) Sheath:

The flame-retardant sheath ensures excellent fire safety performance, emitting minimal smoke and no harmful halogen gases during combustion, meeting stringent safety standards.

• Comprehensive Water-Blocking Measures:

Special Water-Blocking Compound: Loose tubes are filled with a specialized water-blocking compound to prevent moisture penetration.

Laminated Aluminum Tape Armor: Provides an effective barrier against moisture ingress and adds structural reinforcement to the cable.

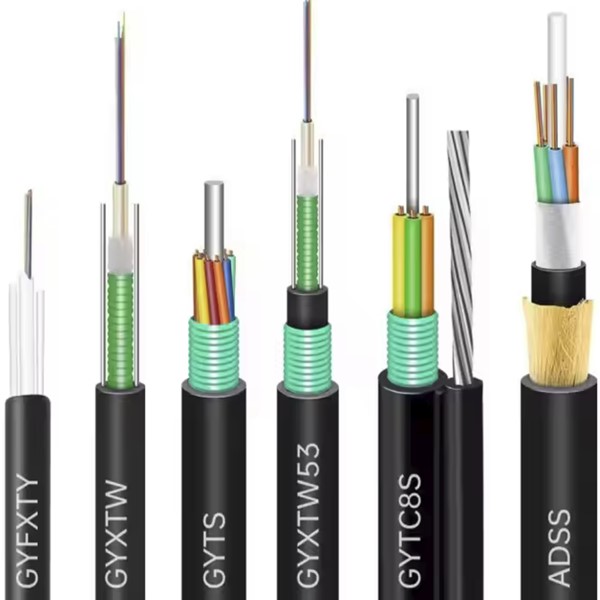

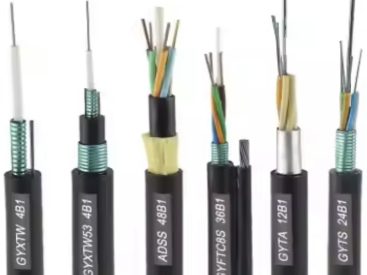

GYTZA53-98~108Xn Optic Cable Product and More Optic Cables

• Very good mechanical properties, temperature characteristics and flame retardant properties
• The loose tube material itself has good hydrolysis resistance and high strength
• The tube is filled with a special paste to protect the optical fiber
• Good compression resistance and softness
• The following measures are taken to ensure the waterproof performance of the cable:
– Single wire center reinforcing core
– The loose tube is filled with a special waterproofing compound
– Full core filling
– Plastic-coated aluminium tape (APL) moisture barrier
– Double-sided plastic-coated steel tape (PSP) improves the moisture permeability of fiber optic cables
– Good water-blocking material prevents longitudinal water seepage of the fiber optic cable

GYTZA53-98~108Xn Optic Cable Product Applications

• Tunnel and Underground Installations:

Suitable for deployment in tunnels, subways, and underground ducts, where flame retardancy and moisture-proofing are essential to ensure safety and durability.

• High-Risk Fire Zones:

Perfect for areas prone to fire hazards, such as industrial zones, chemical plants, and dense urban centers, thanks to its flame-retardant outer sheath.

• Outdoor Duct Installations:

The cable’s robust construction and moisture-proof aluminum tape layer make it ideal for duct installations exposed to environmental challenges such as water ingress and temperature fluctuations.

GYTZA53-98~108Xn Optic Cable Product Structure
