Huawei CGHF Service Board is a 16-port XG-PON and GPON Combo OLT interface board for MA5800 Series OLT Equipment . It works together with the optical network unit (ONU) to provide XG-PON and GPON access services.

Huawei CGHF Service Board Product Overview

Huawei CGHF Service Board is 16-port 10G GPON and GPON combo OLT Interface Board with XGPON & GPON C+ Optical Module. This board is applied to MA5800 X2, X7, X15, X17 NG OLT system. The max split radio goes to 1:256
GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s
XG-PON channel: Tx: 9.95Gbit/s, Rx: 2.49Gbit/s
Interface Type: SC

Huawei SmartAX MA5800 series OLT products include the MA5800-X17, MA5800-X15, MA5800-X7, and MA5800-X2. It supports GPON, XG-PON, XGS-PON, XG-PON&GPON combo, XGS-PON&GPON combo, Flex-PONGE, 10GE, and other interfaces.

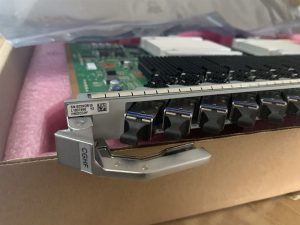

Huawei CGHF Service Board Product Picture

Huawei CGHF Service Board YCICT Huawei CGHF Service Board PRICE AND SPECS OLTHuawei CGHF Service Board YCICT Huawei CGHF Service Board PRICE AND SPECS Huawei CGHF 16-port XG-PON and GPON combined OLT interface board H902CGHF

Huawei CGHF Service Board YCICT Huawei CGHF Service Board PRICE AND SPECS Huawei CGHF Service BoardHuawei CGHF Service Board YCICT Huawei CGHF Service Board PRICE AND SPECS FOR OLT MA5800 SERIES

Huawei CGHF Service Board Product Specification

BrandHuawei
ModelCGHF
GPON Port16 XG-PON & GPON ports
TypeOne-fiber bi-directional optical module
Operating WavelengthGPON channel:
Tx: 1490 nm
Rx: 1310 nm
XG-PON channel:
Tx: 1577 nm
Rx: 1270 nm
Encapsulation TypeSFP+
Port RateGPON channel:
Tx: 2.488 Gbit/s
Rx: 1.244 Gbit/s
XG-PON channel:
Tx: 9.953 Gbit/s
Rx: 2.488 Gbit/s
Minimum Output Optical PowerGPON channel: 3 dBm
XG-PON channel: 4 dBm
Maximum Output Optical PowerGPON channel: 7 dBm
XG-PON channel: 8 dBm
Maximum Receiver SensitivityGPON channel: -32 dBm
XG-PON channel: -29.5 dBm
Optical Connector TypeSC
Optical Fiber TypeSingle-mode
Overload Optical PowerGPON channel: -12 dBm
XG-PON channel: -9 dBm
Extinction Ratio8.2 dB
Forwarding capability200 Gbit/s
Rate modeAsymmetric rate
T-CONTs per PON portGPON: 1024
XG-PON: 2048
Service flows per PON board16352
Maximum frame size2052 bytes
9216 bytes (jumbo frame enabled)
Maximum number of MAC addresses131072
Maximum distance difference between40 km
two ONUs under the same PON port
Dimensions (W x D x H)23.30 mm * 257.90 mm * 399.20 mm
Power ConsumptionStatic: 48 W
Maximum: 106 W
Operating temperature-40°C to +65°C

Huawei CGHF Service Board Product Feature

  • Multi-media Gigabit Convergence

Through PON/P2P, the unified access and convergence of any medium of optical fiber, copper wire and Cable is realized, and the independent access network of multi-media is evolved into an access network with a unified architecture to achieve unified access, Converge and manage to simplify network architecture and operation and maintenance.

  • The best 4K/8K/VR video experience

The single-frame MA5800 can satisfy 16,000 families to enjoy ultra-high-definition 4K/8K/VR video online at the same time; it adopts a distributed cache and has a larger cache and video burst absorption capacity, thereby Help 4K/8K/VR video start quickly or channel switching; VMOS/eMDI video surveillance can realize the intelligent perception and troubleshooting of 4K/8K/VR video experience, bringing the best network operation and maintenance experience and user business experience.

  • Distributed architecture

MA5800 is the industry’s first distributed architecture OLT. A single slot can support 16-port 10GPON non-blocking access, and can smoothly evolve to support 50G PON. It can achieve forwarding capabilities such as MAC and IP addresses without replacing the main control board. The linear and smooth expansion of the company fully protects customers’ existing investments and makes step-by-step investments according to business development needs.
