Huawei MU609 Mini PCIe Module

SKU: Huawei MU609 Mini PCIe Module Category: Tags: ,

Description

Huawei MU609 Mini PCIe Module is a modified version of MU609, standard Mini PCIe package; provides high-quality voice and SMS functions; rich extension functions: GPS, FOTA, STK… built-in TCP/IP protocol stack; Huawei extended AT command set. It is the first choice for automotive, security monitoring, tracking, mobile payment, industrial routers, industrial flats, and other industrial applications!

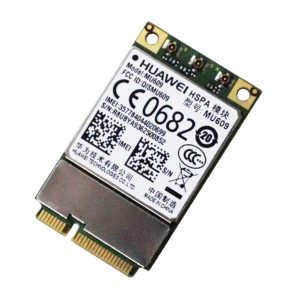

Huawei MU609 Mini PCIe Module Pictures

Huawei MU609 Mini PCIe ModuleHuawei MU609 Mini PCIe Module

Huawei MU709s-6 Mini PCIe YCICT MU709-6 PRICE AND SPECSHuawei MH5000-871 5G Mobile YCICT Huawei MH5000-871 5G Mobile PRICE AND SPECS MH5000

Huawei MU609 Mini PCIe Module Specifications

Brand Huawei
Model MU609 Mini PCIe Module
Size Height  30.4mm
Width  51mm
Length  3.4mm
Weight  approx.12g
Form Factor Mini-PCIe
Band HSPA+/UMTS quad-band 850/900/1900/2100 MHz
GSM/GPRS quad-band 850/900/1900/2100 MHz
Rate Downlink:14.4 Mbps, Uplink: 5.76 Mbps
Interface 3 Antenna connectors
PCIe interface
USB 2.0 High speed
PCM Voice
SIM Interface (1.8V/3.0V)
Power supply
Reset
Voltage 3.0 V to 3.6 V (typical: 3.3 V)
Voice N/A
Temperature Normal work Temperature: -20℃ to 70℃
Extended working temperature: -30℃ to 70℃
GPS/Glonass GPS
A-GPS
Special Functions FOTA
STK
System Linux, Android
