Description
Huawei S5735-S48HS4XE-V2 Switch is a standard Hybrid Optical-Electrical gigabit Ethernet switch with 48 x GE SFP ports, 2 x DB50 ports, 4 x 10 GE SFP+ ports, 2 x 12GE stack ports and 1+1 power supply backup. It provides all GE downlink ports, DB50 ports, 10GE uplink ports and 2 stack ports.
Huawei S5735-S48HS4XE-V2 Switch Product Overview
The switch offers Forwarding performance: 168 Mpps and Switching capacity*: 224 Gbps/520 Gbps. It is developed based on next-generation high-performing hardware and software platform. S5735-S-V2 switches support simplified operations and maintenance (O&M), and flexible Ethernet networking. It also provides enhanced Layer 3 features and mature IPv6 features.
In addition to supporting traditional Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), and Multiple Spanning Tree Protocol (MSTP), S5735-S-V2 is also designed with the industry’s latest Ethernet Ring Protection Switching (ERPS) technology. This protocol is reliable, easy to maintain, and implements fast protection switching within 50 ms. ERPS is defined in ITU-T G.8032, and it implements millisecond-level protection switching based on traditional Ethernet MAC and bridging functions.
S5735-S48HS4XE-V2 can be used in various scenarios. For example, it can be used as an access or aggregation switch on a campus network or as an access switch for Metropolitan Area Network.

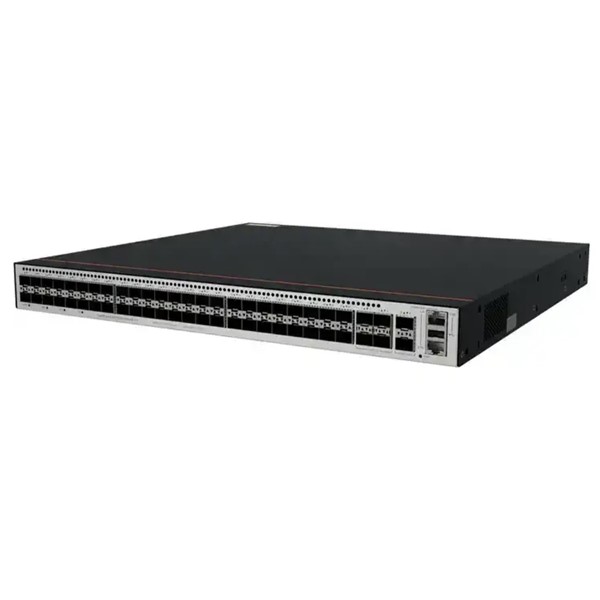

Huawei S5735-S48HS4XE-V2 Switch Product Pictures
Huawei S5735-S48HS4XE-V2 Switch Product Specifications
| Product Model | CloudEngine S5735-S24HS4XE-V2 | CloudEngine S5735-S48HS4XE-V2 |
| Forwarding Performance | 132 Mpps | 168 Mpps |
| Switching Capacity2 | 176 Gbps/520 Gbps | 224 Gbps/520 Gbps |
| Fixed Ports | 24 x GE SFP ports, 1 x DB50 port, 4 x 10 GE SFP+ ports, 2 x 12GE stack ports | 48 x GE SFP ports, 2 x DB50 ports, 4 x 10 GE SFP+ ports, 2 x 12GE stack ports |
| PoE | Supported, 90 W PoE++ | |
| Power supply type | 1+1 power supply backup | |
| MAC Features | MAC address auto-learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses Interface-based MAC address learning limiting | |
| VLAN | 4094 VLANs | |
| Voice VLAN | ||
| MUX VLAN | ||
| VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports | ||
| IP Routing | Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, and VRRP6 | |
| Interoperability | VBST (compatible with PVST/PVST+/RPVST) | |
| LNP (similar to DTP) | ||
| VCMP (similar to VTP) | ||
Huawei S5735-S48HS4XE-V2 Switch Product Features
- S5735-S-V2 provides telemetry technology to collect device data in real time and send the data to Huawei campus network analyzer CampusInsight. The CampusInsight analyzes network data based on the intelligent fault identification algorithm, accurately displays the real-time network status, effectively demarcates and locates faults in a timely manner, and identifies network problems that affect user experience, accurately guaranteeing user experience.
- S5735-S-V2 supports the intelligent upgrade feature. Specifically, CloudEngine S5735-S-V2 obtains the version upgrade path and downloads the newest version for upgrade from the Huawei Online Upgrade Platform (HOUP). The entire upgrade process is highly automated and achieves one-click upgrade. In addition, preloading the version is supported, which greatly shortens the upgrade time and service interruption time.
- S5735-S-V2 supports Open Programmability System (OPS), an open programmable system based on the Python language. IT administrators can program the O&M functions of a CloudEngine S5735-S-V2 switch through Python scripts to quickly innovate functions and implement intelligent O&M.
Huawei S5735-S48HS4XE-V2 Switch Product and More Models
S5735-S24HS4XE-V2 (24*bundled ports(24*GE SFP ports, 24*PoE++ ports(DB50)), 4*10GE SFP+ ports, 2*12GE stack ports, without power module)
S5735-S48HS4XE-V2 (48*bundled ports(48*GE SFP ports, 48*PoE++ ports(DB50)), 4*10GE SFP+ ports, 2*12GE stack ports, without power module)
Huawei S5735-S48HS4XE-V2 Switch Ordering Info
| CloudEngine S5735S24HS4XE-V2 | S5735-S24HS4XE-V2 (24*bundled ports(24*GE SFP ports, 24*PoE++ ports(DB50)), 4*10GE SFP+ ports, 2*12GE stack ports, without power module) |
| CloudEngine S5735S48HS4XE-V2 | S5735-S48HS4XE-V2 (48*bundled ports(48*GE SFP ports, 48*PoE++ ports(DB50)), 4*10GE SFP+ ports, 2*12GE stack ports, without power module) |
| PAC600S56-EB | 600 W PoE AC&240 V DC Power Module |
| PAC1000S56-EB | 1000 W PoE AC&240 V DC Power Module |
| PDC1000S56-EB | 1000 W PoE DC Power Module |
| N1-S57S-M-Lic | S57XX-S Series Basic SW, Per Device |
| N1-S57S-M-SnS1Y | S57XX-S Series Basic SW, SnS, Per Device, 1Year |
| N1-S57S-F-Lic | N1-CloudCampus, Foundation, S57XX-S Series, Per Device |
| N1-S57S-F-SnS1Y | N1-CloudCampus, Foundation, S57XX-S Series, SnS, Per Device, 1Year |
| N1-S57S-A-Lite-Lic | N1-CloudCampus,Advanced-Lite,S57XX-S, Per Device |
| N1-S57S-A-Lite-SnS-3Y | N1-CloudCampus,Advanced-Lite,S57XX-S,SnS,Per Device,3 Year |
| N1-S57S-FToA-Lite-Lic | N1-Upgrade-Foundation to Advanced-Lite,S57XX-S,Per Device |
| N1-S57S-FToA-Lite-SnS-3Y | N1-Upgrade-Foundation to Advanced-Lite,S57XX-S,SnS,Per Device,3 Year |
Huawei S5735-S48HS4XE-V2 Switch Product Applications
