GYTZA-122~132Xn Optic Cable is Flame-retardance Stranded Loose Tube Optical Cable, which has advantages such as large capacity, long relay distance, good confidentiality, immunity to electromagnetic interference, and saving copper materials.
GYTZA-122~132Xn Optic Cable Product Overview
The structure of the optical cable consists of a 250µm optical fiber encased in a loose tube made of high-modulus materials, with waterproof compounds filling the inside of the loose tube. The center of the cable core contains a metallic reinforcement core, and for certain fiber counts, a layer of polyethylene (EDUCAÇAO FISICA) must be extruded outside the metallic reinforcement core. The loose tube (and filling yarn) is twisted around the central reinforcement core to form a compact and round cable core, with the gaps inside the cable core filled with water-blocking filling material. After longitudinal wrapping with aluminum tape (APL), a flame-retardant sheath is extruded to form the cable.
Optical fiber cables are communication cables composed of two or more glass or plastic optical fiber cores, these cores are located within a protective coating and covered by an external plastic PVC sheath. Signal transmission along the internal optical fibers generally uses infrared light.

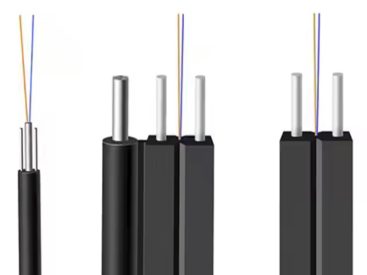

GYTZA-122~132Xn Optic Cable Product Picture
GYTZA-122~132Xn Optic Cable Product Specifications
| Fiber cable model (in increments of 2 fibras) | Number of optical fiber tubes | Number of sleeves | Number of filling ropes | Reference optical cable weight (kg/km) | Allowable tensile force Long-term/short-term (N) | Allowable crushing force long term/short term (N/100mm) | Bending radius static/dynamic (milímetros) | |
| GYTZA-2~6Xn | 2~6 | 1 | 4 | 101 | 600/1500 | 300/1000 | 10D/20D | |
| GYTZA-8~12Xn | 8~12 | 2 | 3 | 101 | ||||
| GYTZA-14~18Xn | 14~18 | 3 | 2 | 101 | ||||
| GYTZA-20~24Xn | 20~24 | 4 | 1 | 101 | ||||
| GYTZA-26~30Xn | 26~30 | 5 | 0 | 101 | ||||
| GYTZA-32~36Xn | 32~36 | 6 | 0 | 111 | ||||
| GYTZA-38~48Xn | 38~48 | 4 | 1 | 117 | ||||
| GYTZA-50~60Xn | 50~60 | 5 | 0 | 117 | ||||
| GYTZA-62~72Xn | 62~72 | 6 | 0 | 144 | ||||
| GYTZA-74~84Xn | 74~84 | 7 | 1 | 171 | ||||
| GYTZA-86~96Xn | 86~96 | 8 | 0 | 171 | ||||
| GYTZA-98~108Xn | 98~108 | 9 | 1 | 198 | ||||
| GYTZA-110~120Xn | 110~120 | 10 | 0 | 198 | ||||
| GYTZA-122~132Xn | 122~132 | 11 | 1 | 229 | ||||
| GYTZA-134~144Xn | 134~144 | 12 | 0 | 229 | ||||
| GYTZA-146~216Xn | 146~216 | 13~18 | 5~0 | 229 | ||||
| Fiber optic type | Atenuação (20°C) | Largura de banda | Abertura numerica | Optical fiber cutoff wavelength | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @ 850nm | @1300nm | |||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0.40dB/km | ≤0.23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYTZA-122~132Xn Optic Cable Product Features
• Accurate process control ensuring good mechanical and temperature performances
• The material of loose tubes with good hydrolysis resistance and relatively high strength
• LSZH sheath ensuring good flame-retardant performance
• Water resistance of optical cable is ensured by the following measures:
– Special water-blocking compound filled in loose tubes
– Laminated aluminum tape armor
– Water-blocking material ensuring longitudinal water resistance
GYTZA-122~132Xn Optic Cable Product and More Optic Cables
Central tube non-metallic unarmored optical cable (GYFXY)
Central tube unarmored optical cable (GYXY)
Central tube light armored optical cable (GYXS/GYXTW)
Loose tube layer twisted light armored fiber ribbon optical cable (GYDTS)
Loose tube layer twisted non-armored fiber ribbon optical cable (GYDTA)
Loose tube layer twisted non-metallic reinforced core non-armored flame-retardant optical cable (GYFTZY)
Loose tube layer twisted reinforced core armored flame-retardant optical cable (GYTZA53)
Loose tube layer twisted non-metallic reinforced core armored flame-retardant optical cable (GYFTZA53)
Loose tube layer twisted flame-retardant optical cable (GYTZS)
Loose tube layer twisted non-metallic reinforced core armored optical cable (GYFTA53)
Loose tube layer twisted non-metallic reinforced core ordinary armored optical cable (GYFTY53)
Loose tube layer twisted non-metallic reinforced core unarmored optical cable (GYFTA)
Loose tube layer twisted non-metallic reinforced core optical cable (GYHTY)
Loose tube layer twisted non-metallic reinforced core unarmored optical cable (GYFTY)
Loose tube layer twisted single wire round steel armored optical cable (GYTA53 33)
GYTZA-122~132Xn Optic Cable Product Applications
- Outdoor Duct Installations: The cable’s robust construction and moisture-proof aluminum tape layer make it ideal for duct installations exposed to environmental challenges such as water ingress and temperature fluctuations.
- Campus and Enterprise Networks: Suitable for linking large-scale campuses or enterprise facilities where fire safety standards must be strictly observed.
- Rural and Remote Areas: Can be used in rural or remote outdoor networks that require long-distance connectivity with reliable water-blocking and mechanical performance.
- Emergency Communication Networks: Suitable for emergency response communication systems, where reliability under extreme conditions and flame resistance are vital.
GYTZA-122~132Xn Optic Cable Product Structure
