Descrição
GYTZA-98~108Xn Optic Cable is Flame-retardance Stranded Loose Tube Optical Cable. Optical fiber cable is mainly composed of optical fibers and plastic protective sleeves and plastic outer sheaths.
GYTZA-98~108Xn Optic Cable Product Overview
GYTZA optical cable is a robust and versatile solution designed to meet the demands of outdoor communication networks, particularly in environments requiring flame-retardant performance. This cable features colored optical fibers housed in a loose tube made of high-modulus material, providing exceptional mechanical strength and hydrolysis resistance. The loose tube is filled with thixotropic gel, ensuring optimal fiber protection and water-blocking capabilities.
Optical cables, with their advantages of high bandwidth, low loss, long-distance transmission capability, and resistance to electromagnetic interference, have become an indispensable part of modern communication infrastructure. With the development of technologies such as 5G, a Internet das Coisas (IoT), and cloud computing, optical cables are playing an increasingly important role in building high-speed and reliable communication networks.

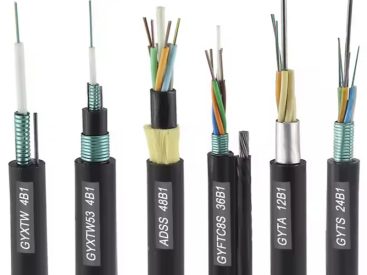

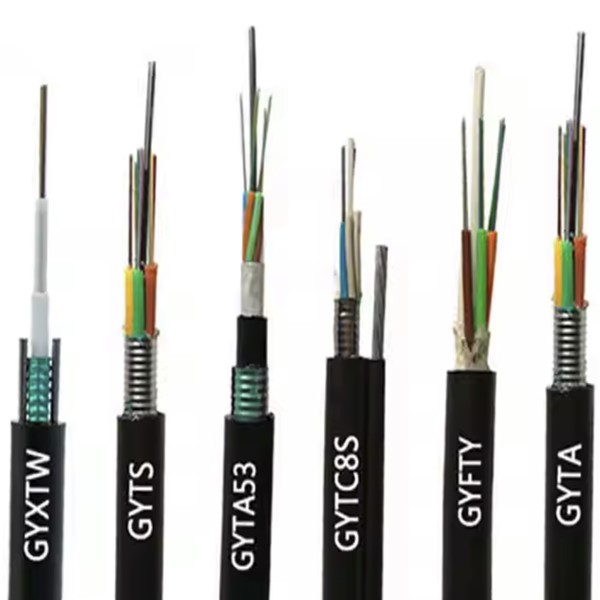

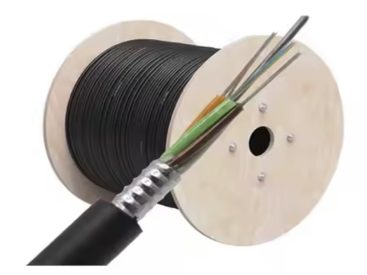

GYTZA-98~108Xn Optic Cable Product Pictures
GYTZA-98~108Xn Optic Cable Product Specifications
| Fiber cable model (in increments of 2 fibras) | Number of optical fiber tubes | Number of sleeves | Number of filling ropes | Reference optical cable weight (kg/km) | Allowable tensile force Long-term/short-term (N) | Allowable crushing force long term/short term (N/100mm) | Bending radius static/dynamic (milímetros) | |
| GYTZA-2~6Xn | 2~6 | 1 | 4 | 101 | 600/1500 | 300/1000 | 10D/20D | |
| GYTZA-8~12Xn | 8~12 | 2 | 3 | 101 | ||||
| GYTZA-14~18Xn | 14~18 | 3 | 2 | 101 | ||||
| GYTZA-20~24Xn | 20~24 | 4 | 1 | 101 | ||||
| GYTZA-26~30Xn | 26~30 | 5 | 0 | 101 | ||||
| GYTZA-32~36Xn | 32~36 | 6 | 0 | 111 | ||||
| GYTZA-38~48Xn | 38~48 | 4 | 1 | 117 | ||||
| GYTZA-50~60Xn | 50~60 | 5 | 0 | 117 | ||||
| GYTZA-62~72Xn | 62~72 | 6 | 0 | 144 | ||||
| GYTZA-74~84Xn | 74~84 | 7 | 1 | 171 | ||||
| GYTZA-86~96Xn | 86~96 | 8 | 0 | 171 | ||||
| GYTZA-98~108Xn | 98~108 | 9 | 1 | 198 | ||||
| GYTZA-110~120Xn | 110~120 | 10 | 0 | 198 | ||||
| GYTZA-122~132Xn | 122~132 | 11 | 1 | 229 | ||||
| GYTZA-134~144Xn | 134~144 | 12 | 0 | 229 | ||||
| GYTZA-146~216Xn | 146~216 | 13~18 | 5~0 | 229 | ||||
| Fiber optic type | Atenuação (20°C) | Largura de banda | Abertura numerica | Optical fiber cutoff wavelength | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @ 850nm | @1300nm | |||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0.40dB/km | ≤0.23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYTZA-98~108Xn Optic Cable Product Features
- It has excellent mechanical properties and temperature characteristics.
- The material of the loose tube itself has good hydrolysis resistance and high strength.
- The inside of the tube is filled with special oily paste, providing critical protection for the optical fibers.
- The specially designed compact cable structure effectively prevents tube shrinkage.
- Good compressive strength and flexibility.
- The special sheath has outstanding flame-retardant properties.
- The following measures are taken to ensure the cable’s waterproof performance:
- Single steel wire center reinforcement core
- The loose tube is filled with special waterproof compound
- Completely filled cable core
- Coated aluminum tape (APL) moisture-proof layer.
GYTZA-98~108Xn Optic Cable Product and More Optic Cables
Loose tube stranded non-metallic reinforced core non-armored flame-retardant optical cable (GYFTZY)
Loose tube stranded reinforced core armored flame-retardant optical cable (GYTZA53)
Loose tube stranded non-metallic reinforced core armored flame-retardant optical cable (GYFTZA53)
Loose tube stranded flame-retardant optical cable (GYTZS)
Loose tube stranded non-metallic reinforced core armored optical cable (GYFTA53)
Loose tube stranded non-metallic reinforced core ordinary armored optical cable (GYFTY53)
Loose tube stranded non-metallic reinforced core non-armored optical cable (GYFTA)
Loose tube stranded non-metallic reinforced core optical cable (GYHTY)
Loose tube stranded non-metallic reinforced core non-armored optical cable (GYFTY)
Loose tube stranded single steel wire armored optical cable (GYTA53 33)
Loose tube stranded reinforced armored optical cable (GYTA53)
Loose tube stranded ordinary armored optical cable (GYTY53)
Loose tube stranded light armored optical cable (GYTS)
Loose tube stranded non-armored optical cable (GYTA)
GYTZA-98~108Xn Optic Cable Product Applications
- Long-distance communication: Used for long-distance data transmission between countries and internationally.
- Metropolitan area network: Connects different network nodes within a city.
- Local area network: Used for high-speed data transmission in local networks such as businesses, schools, and homes.
- Data center: Connects servers, storage devices, and network devices to achieve high-speed internal communication.
GYTZA-98~108Xn Optic Cable Product Structure
