GYTZS-146~216Xn Optic Cable is Stranded Loose Tube Flame-retardant Cable
GYTZS-146~216Xn Optic Cable Product Overview
The structure of GYTZS optical cable consists of 250µm optical fibers housed in a loose tube made of high modulus material, with waterproof compounds filling the inside of the tube. The center of the cable core contains a metal reinforcement core, and for certain fiber counts, an additional layer of polyethylene (EDUCAÇAO FISICA) is extruded outside the metal core. The loose tube and filler rope are twisted around the central reinforcement core to form a compact and circular cable core, where the gaps inside the core are filled with water-blocking materials. A double-sided coated steel tape (PSP) is longitudinally wrapped and then extruded to form a flame-retardant sheath around the cable
Optical fiber communication is one of the important methods of modern information transmission. It has advantages such as large capacity, long relay distances, good confidentiality, immunity to electromagnetic interference, and savings in copper materials. …

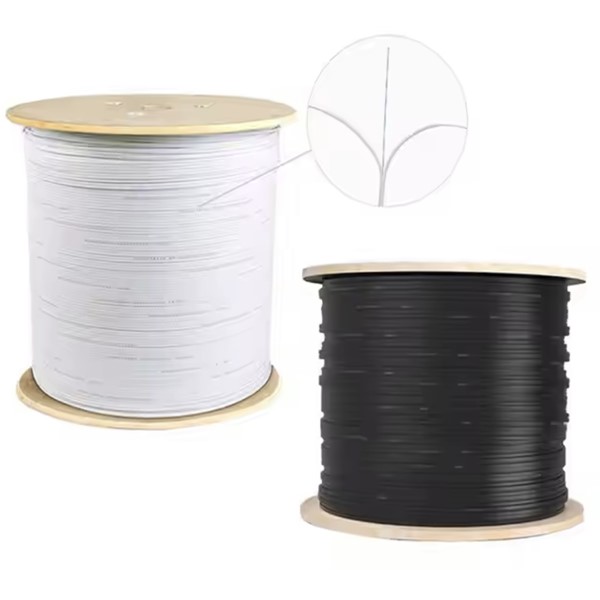

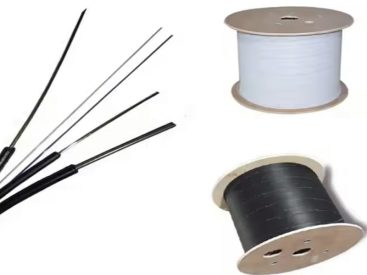

GYTZS-146~216Xn Optic Cable Product Pictures
GYTZS-146~216Xn Optic Cable Product Specifications
| Fiber Optic Cable Model (in 2-fiber increments) | Number of fibers | Number of casings | Number of infill ropes | Reference cable weight (kg/km） | Tensile force allowed Long-term/short-term (N) |
Allowable squashing force Long-term/short-term (N/100mm) |
raio de curvatura Static/Dynamic (milímetros) |
|
| GYTZS-2~6Xn | 2~6 | 1 | 4 | 118 | 600/1500 | 300/1000 | 10D/20D | |
| GYTZS-8~12Xn | 8~12 | 2 | 3 | 118 | ||||
| GYTZS-14~18Xn | 14~18 | 3 | 2 | 118 | ||||
| GYTZS-20~24Xn | 20~24 | 4 | 1 | 118 | ||||
| GYTZS-26~30Xn | 26~30 | 5 | 0 | 118 | ||||
| GYTZS-32~36Xn | 32~36 | 6 | 0 | 131 | ||||
| GYTZS-38~48Xn | 38~48 | 4 | 1 | 139 | ||||
| GYTZS-50~60Xn | 50~60 | 5 | 0 | 139 | ||||
| GYTZS-62~72Xn | 62~72 | 6 | 0 | 170 | ||||
| GYTZS-74~84Xn | 74~84 | 7 | 1 | 200 | ||||
| GYTZS-86~96Xn | 86~96 | 8 | 0 | 200 | ||||
| GYTZS-98~108Xn | 98~108 | 9 | 1 | 230 | ||||
| GYTZS-110~120Xn | 110~120 | 10 | 0 | 230 | ||||
| GYTZS-122~132Xn | 122~132 | 11 | 1 | 268 | ||||
| GYTZS-134~144Xn | 134~144 | 12 | 0 | 268 | ||||
| GYTZS-146~216Xn | 146~216 | 13~18 | 5~0 | 268 | ||||
| GYTZS-288Xn | 288 | 24 | 0 | 360 | ||||
| Tipo de fibra | Atenuação | Largura de banda | Numerical Aperture | Fiber optic cable cut-off wavelength | ||||
| （+20℃） | ||||||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0.40dB/km | ≤0.23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYTZS-146~216Xn Optic Cable Product Features
- Crush resistance and flexibility
- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
- Special sheath material ensures excellent flame-retardant performance
- Specially designed compact structure is good at preventing loose tubes from shrinking
- The following measures are taken to ensure the cable watertight:
- Steel wire used as the central strength member
- Loose tube filling compound
- 100% cable core filling
- PSP enhancing moisture-proof
GYTZS-146~216Xn Optic Cable Product and More Optic Cables
Loose tube layer stranded non-metallic reinforced core armored flame-retardant optical cable (GYFTZA53)
Loose tube layer stranded flame-retardant optical cable (GYTZS)
Loose tube layer stranded non-armored flame-retardant optical cable (GYTZA)
Loose tube layer stranded non-metallic reinforced core armored optical cable (GYFTA53)
Loose tube layer stranded non-metallic reinforced core ordinary armored optical cable (GYFTY53)
Loose tube layer stranded non-metallic reinforced core non-armored optical cable (GYFTA)
Loose tube layer stranded non-metallic reinforced core optical cable (GYHTY)
Loose tube layer stranded non-metallic reinforced core non-armored optical cable (GYFTY)
Loose tube layer stranded single fine round steel wire armored optical cable (GYTA53 33)
Loose tube layer stranded enhanced armored optical cable (GYTA53)
Loose tube layer stranded ordinary armored optical cable (GYTY53)
Loose tube layer stranded lightweight armored optical cable (GYTS)
Loose tube layer stranded non-armored optical cable (GYTA)
GYTZS-146~216Xn Optic Cable Product Applications
- Urban Communication Networks: Ideal for backbone and distribution networks in cities, where fire safety compliance is critical, and cables must endure urban environmental conditions.
- Industrial Zones: Perfect for deployment in factories, refineries, and other industrial settings where potential fire hazards and mechanical stresses are common.
- Aerial Deployments: Lightweight and strong, making it ideal for aerial installations where the non-metallic core prevents electromagnetic interference.
- Critical Infrastructure Projects: Essential for smart city projects, transportation hubs, and emergency communication networks, where safety, confiabilidade, and high performance are prioritized.
GYTZS-146~216Xn Optic Cable Product Structure
